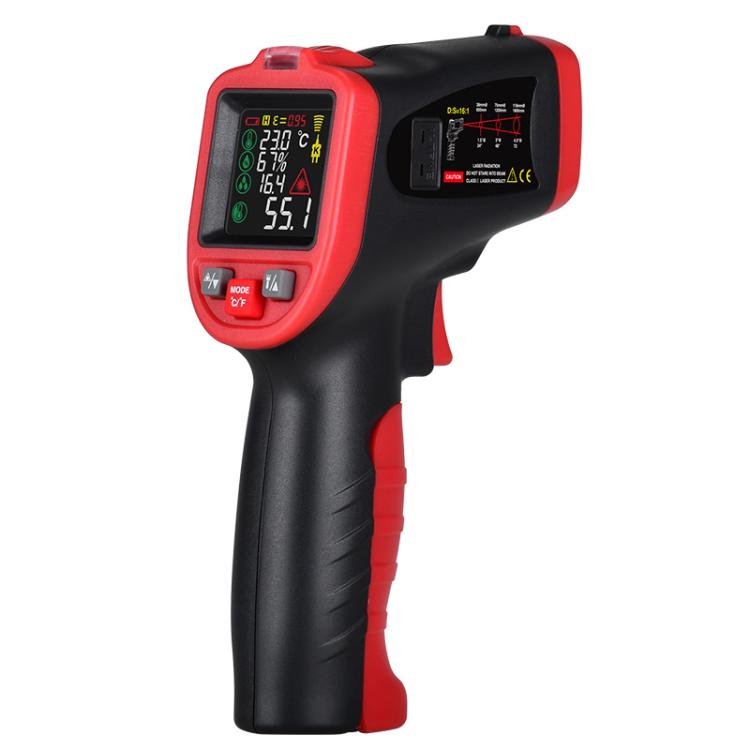

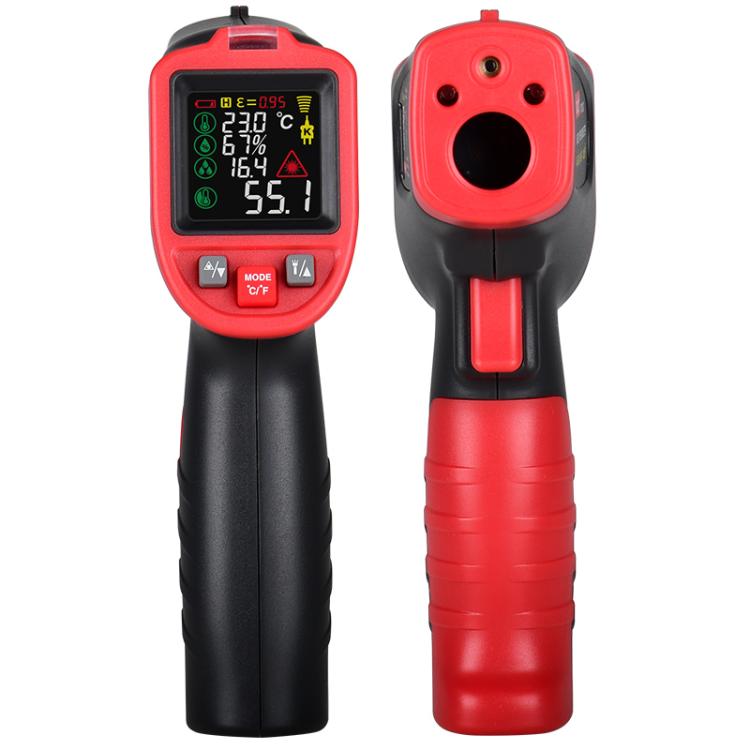

Wintact WT323E Infrared Thermometer Measuring Range -50 to 1050 Degrees Celsius

• Product type: Thermostat & Thermometer
• Brand: Wintact
• Compatibility: Infrared measurement
• Material: Durable construction
• Key feature: Accurate temperature readings
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display.The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.Infrared thermometer possesses the following features:1. Positioning laser 2. K-type thermocouple 3. Data retention 4. Low battery indicator 5. Environmental humidity measurement6. Dew point temperature measurement7. Surface temperature measurement SpecificationsLCD: Colorful LCDTemperature measurement range: -50 to 1050 degrees Celsius (-58 to 1922 degrees Fahrenheit)Temperature display accuracy: 0.1 degrees CelsiusTemperature measurement error: -50 to 0 degrees Celsius(-58 to 32 degrees Fahrenheit): +/-3 degrees Celsius (+/-5 degrees Fahrenheit)0 to 1050 degrees Celsius (32 to 1922 degrees Fahrenheit): +/-1.5% rdg or +/-1.5 degrees Celsius（+/-2.7 degrees Fahrenheit）Take the bigger valueRepeatability: 1% rdg or 1 degrees Celsius Take the bigger valueReponse time: 0.5s, 95% ResponseEmissivity: 0.10 to 1.00 Adjustable (preset as 0.95)D:S: 12:1Response wavelength: 8um to 14 umLaser: Ring light spotFlashlight: UV lightAmbient temperature measurement range: -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit)Ambient temperature measurement accuracy: +/- 1 degrees Celsius (2 degrees Fahrenheit)Relative humidity measurement accuracy: +/- 5% RHDew point temperature measurement: -10 to 50 degrees Celsius(14 to 122 degrees Fahrenheit): +/- 1.5 degrees Celsius / 3 degrees FahrenheitOperating Temperature: 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit)Operating Humidity: 10% RH to 90% RH non-condensableStorage temperature: -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit)Batteries: 1.5V AAA battery x 2 (Not included)Low power indicator: Low power indicator for power below 2.4VOverload indicator: “Hi”/”Lo” displayed on LCDDimensions: 108x49x177mmWeight: 180gSpecifications of K-type thermocoupleMeasurement range: 0 to 250 degrees Celsius (300 degrees Celsius for short time)Measurement error: +/- 2.5 degrees Celsius or 0.75% rdg Take the bigger valueThermal response time: ＜10sAccessories:Instructions x 1Host x 1K-type thermocouple x 1Color box x 1
