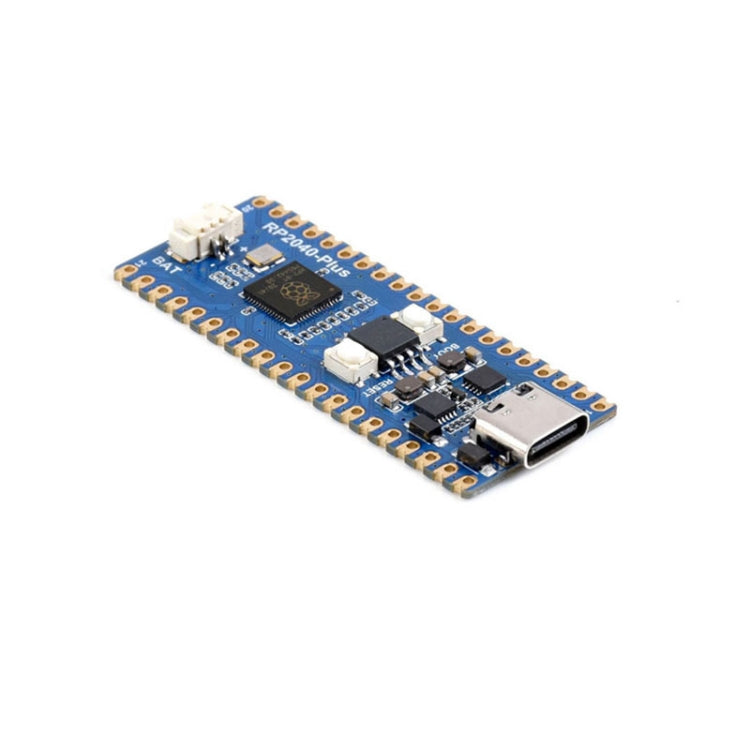

Waveshare RP2040-Plus Pico-like MCU Board Based on Raspberry Pi MCU RP2040, without Pinheader

Waveshare RP2040-Plus Pico-like MCU Board Based on Raspberry Pi MCU RP2040, without Pinheader

Regular price R 309.00
Regular price Sale price R 309.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

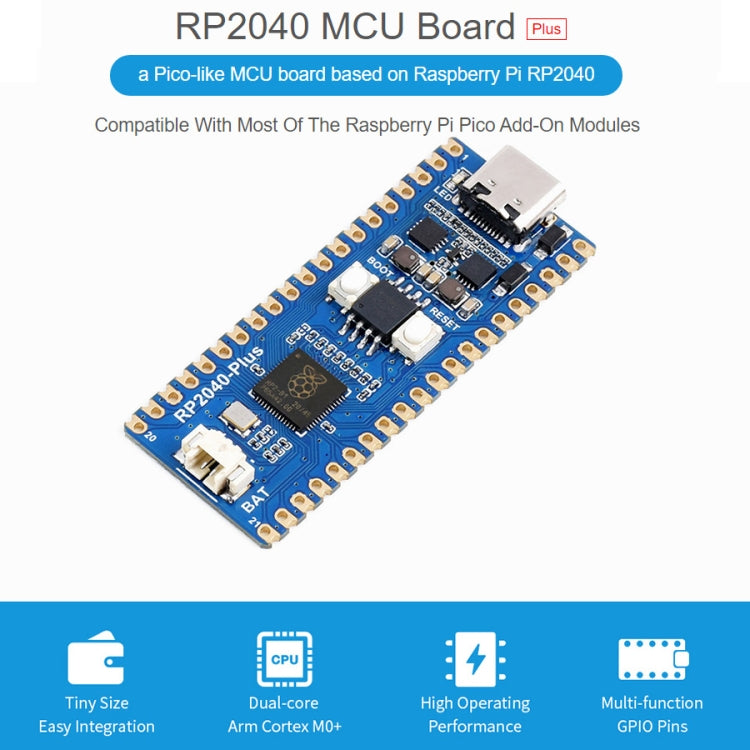

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.
As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.
What is different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.

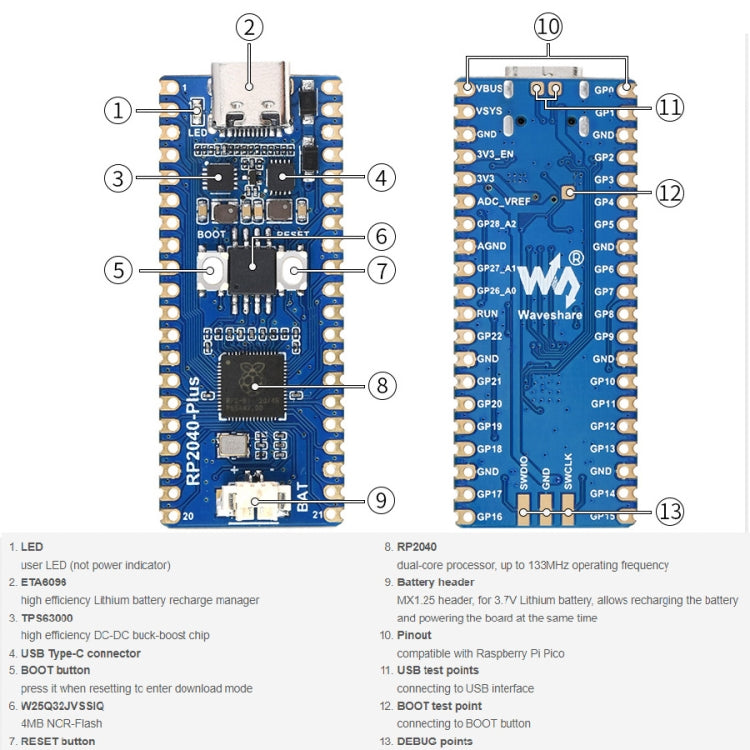

Key features include:
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 4MB of on-board Flash memory
4. USB-C connector, keeps it up to date, easier to use
5. Lithium battery recharge/discharge header, suitable for mobile devices
6. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
7. Castellated module allows soldering direct to carrier boards
8. USB 1.1 with device and host support
9. Low-power sleep and dormant modes
10. Drag-and-drop programming using mass storage over USB

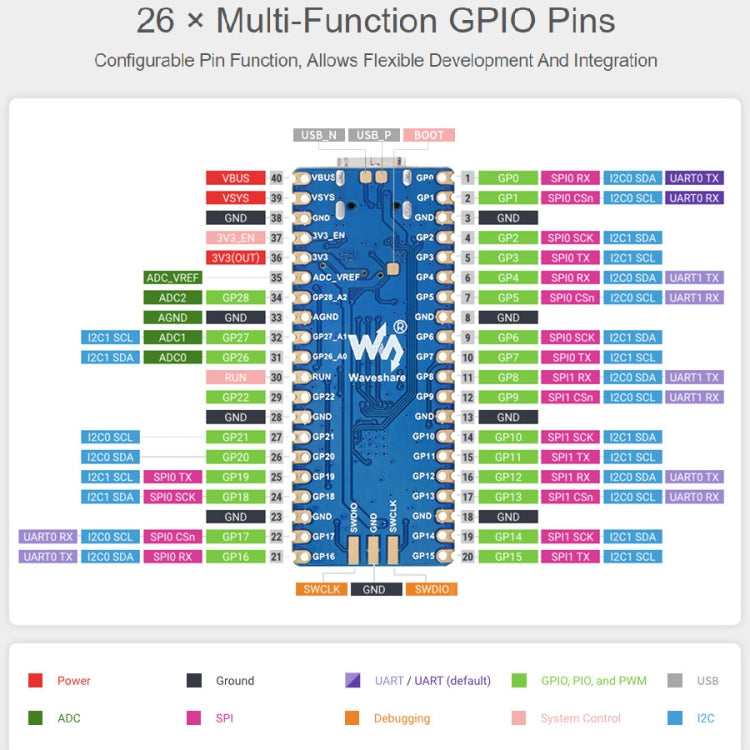

11. 26 x multi-function GPIO pins
12. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
13. Accurate clock and timer on-chip
14. Temperature sensor
15. Accelerated floating-point libraries on-chip
16. 8 x Programmable I/O (PIO) state machines for custom peripheral support
