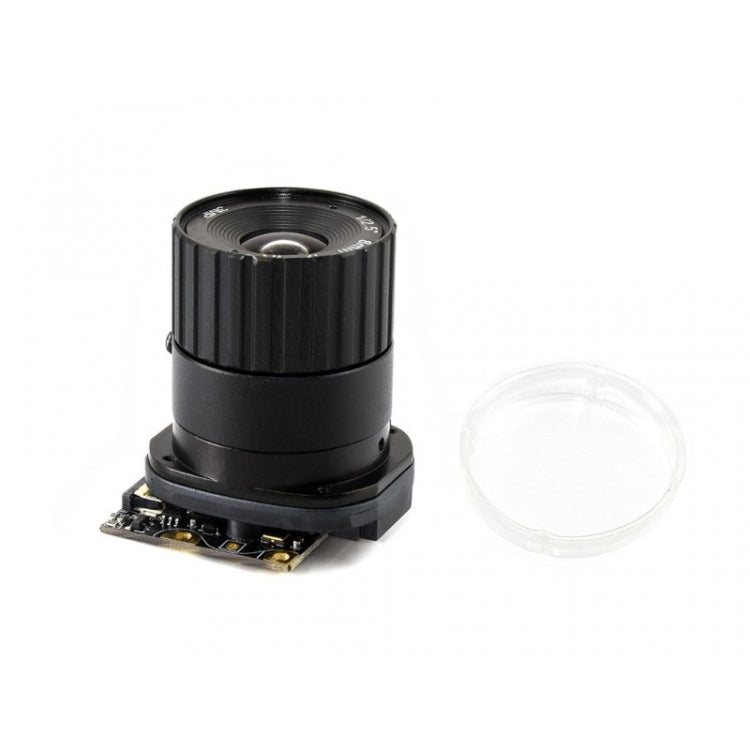

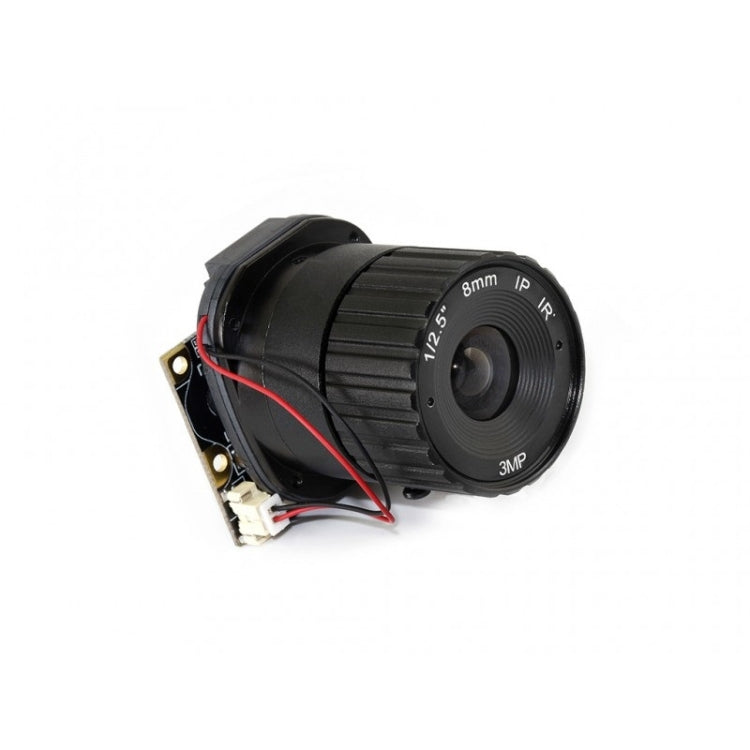

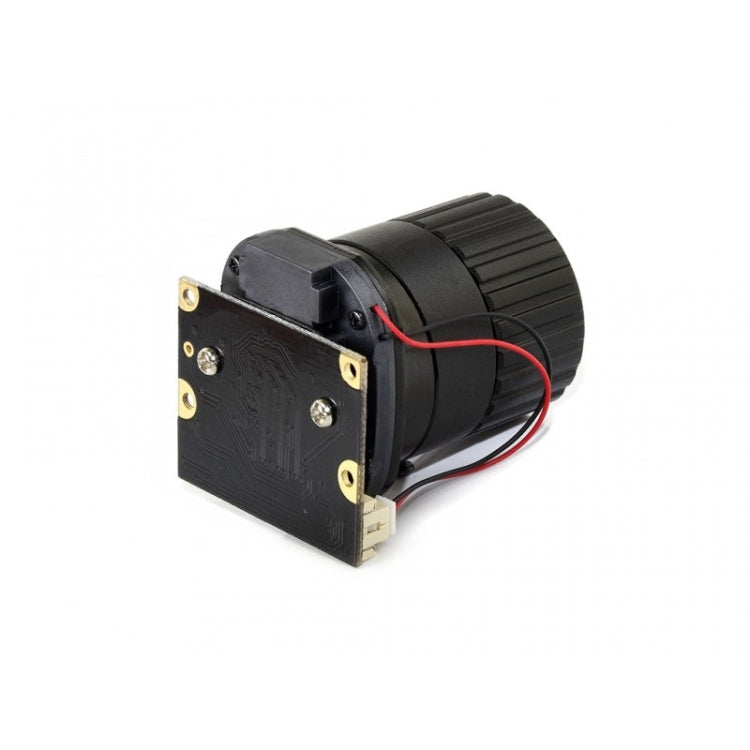

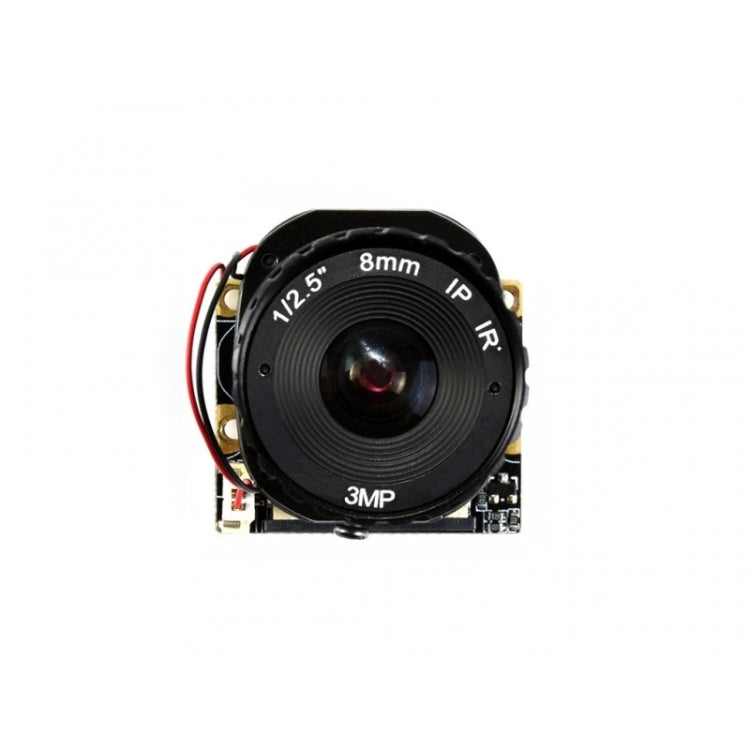

Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B

Name: Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B
Brand: Waveshare
SKU: ZY15882739
Price: 639.00 ZAR
Availability: InStock

R 639.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features
1. Raspberry Pi camera, supports all revisions of the Pi
2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera specifications
- CCD size: 1/4 inch
- Aperture (F): 1.2
- Focal Length: 8mm
- Angle of View (diagonal): 40 degree
- Sensor best resolution: 1080p
7. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
8. Dimension: 31mm x32mm

Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Note: The actual image pixels is 5MP, which depends on the sensor, so it doesnt matter that there is a 3MP silk mark on the camera.
Package Contents
1. RPi IR-CUT Camera (B) x1

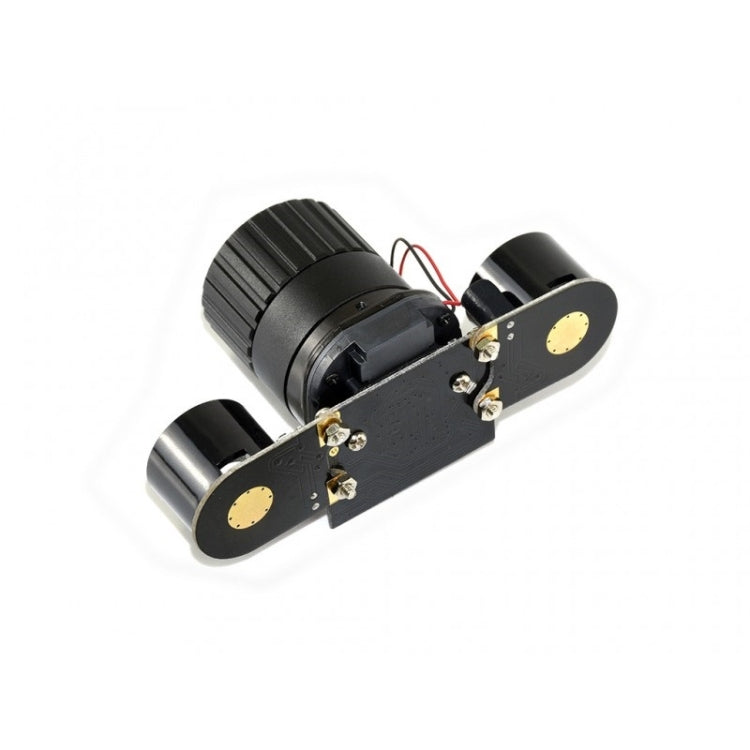

2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1
