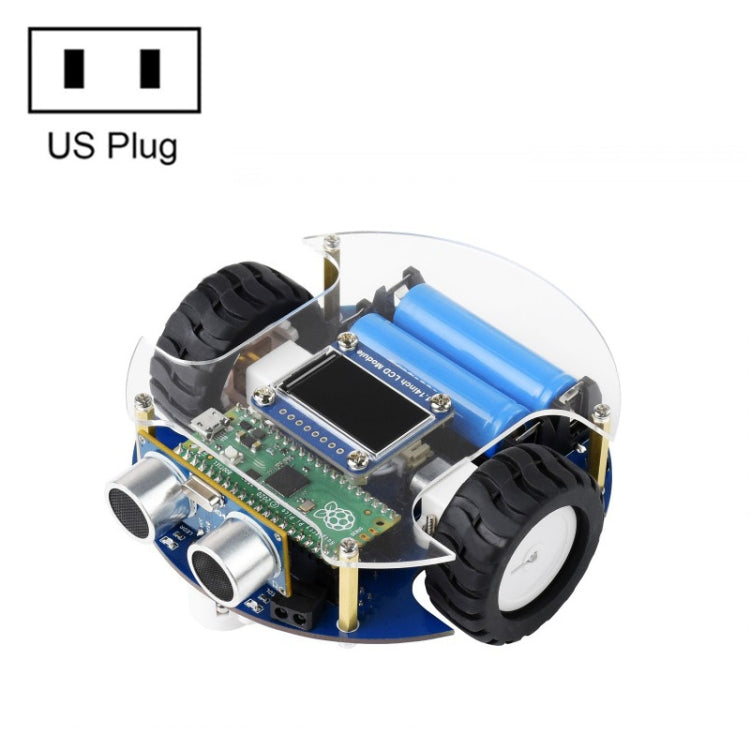

Waveshare PicoGo Mobile Robot, Based on Raspberry Pi Pico, Self Driving, Remote Control(US Plug)

Name: Waveshare PicoGo Mobile Robot, Based on Raspberry Pi Pico, Self Driving, Remote Control(US Plug)
Brand: WAVESHARE
SKU: DIY0533US
Price: 1609.00 ZAR
Availability: InStock

R 1,609.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features
Smart robot is project of electronic enthusiasts, and there have been several robots based on Raspberry Pi Zero W, 3B+, 4B in Waveshare product line. Now, here comes the Pico version: PicoGo!

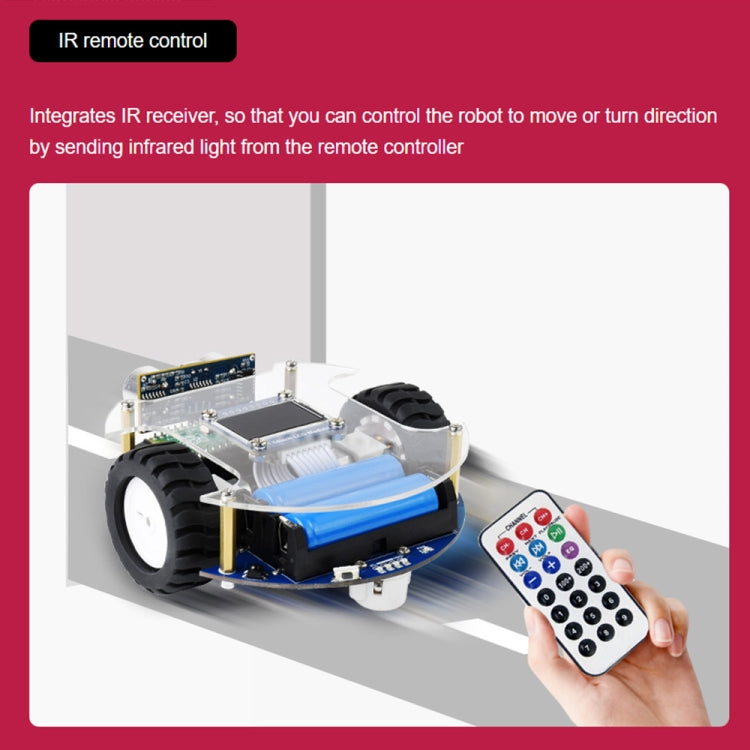

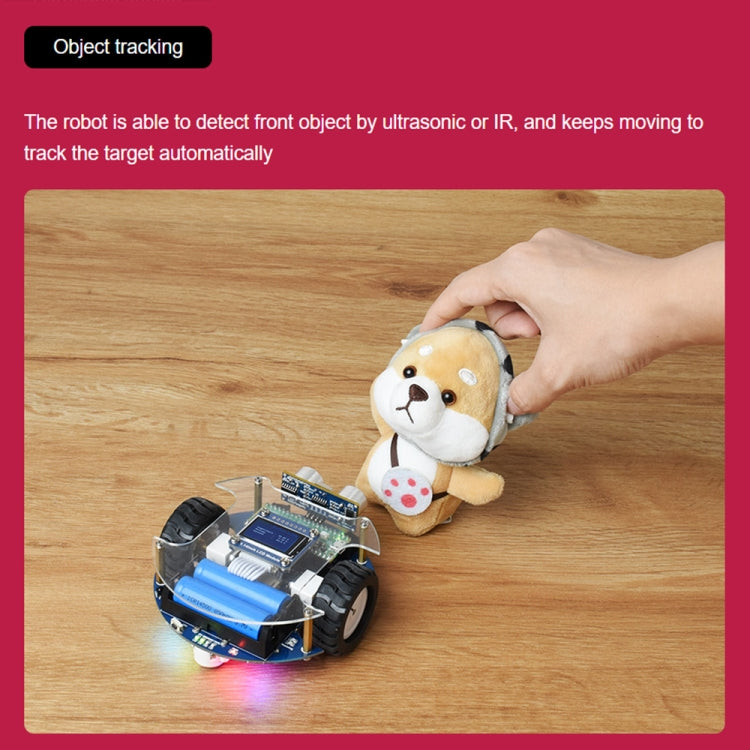

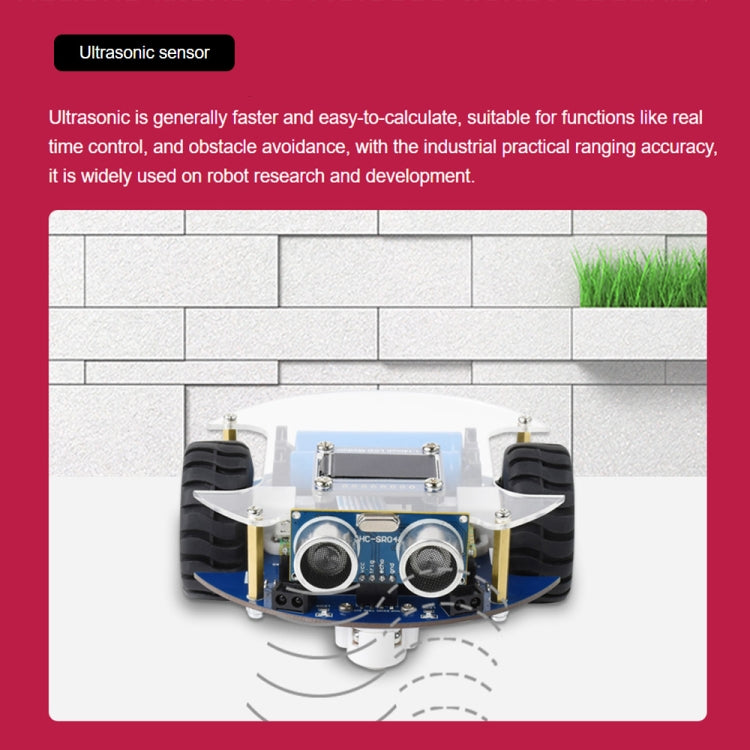

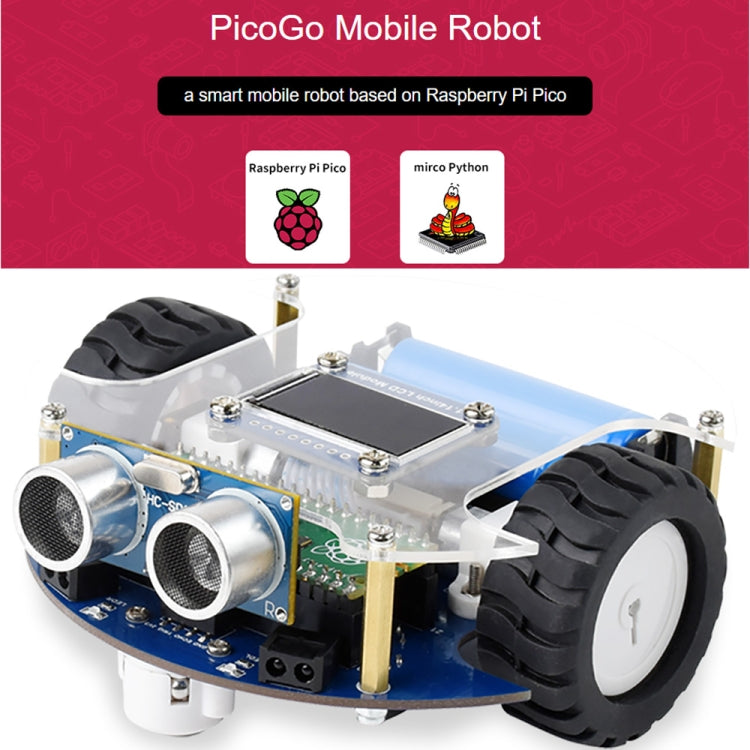

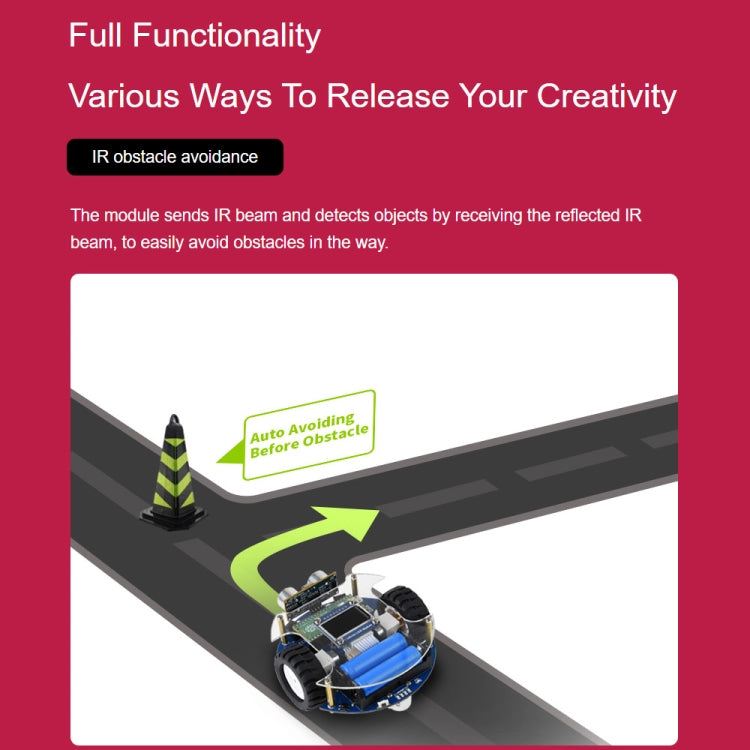

The PicoGo is a smart mobile robot based on Raspberry Pi Pico, it includes ultrasonic module, LCD module, Bluetooth module, line following module, and obstacle avoidance module, all these functions are highly integrated for easily achieving IR obstacle avoidance, auto line following, BT/IR remote control, and more. With various advanced features, it will help you fast get started with smart robot design and development.

PicoGo smart mobile robot features:
1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series

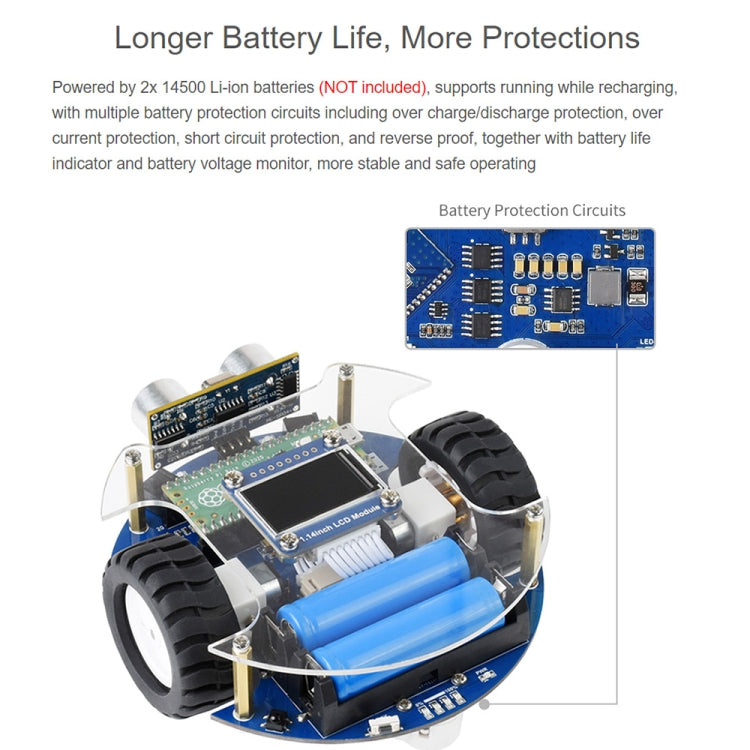

2. Battery protection circuit: over charge/discharge protection, over current protection, short circuit protection, reverse proof, more stable and safe operating
3. Recharge/Discharge circuit, allows programming/debugging concurrently while recharging

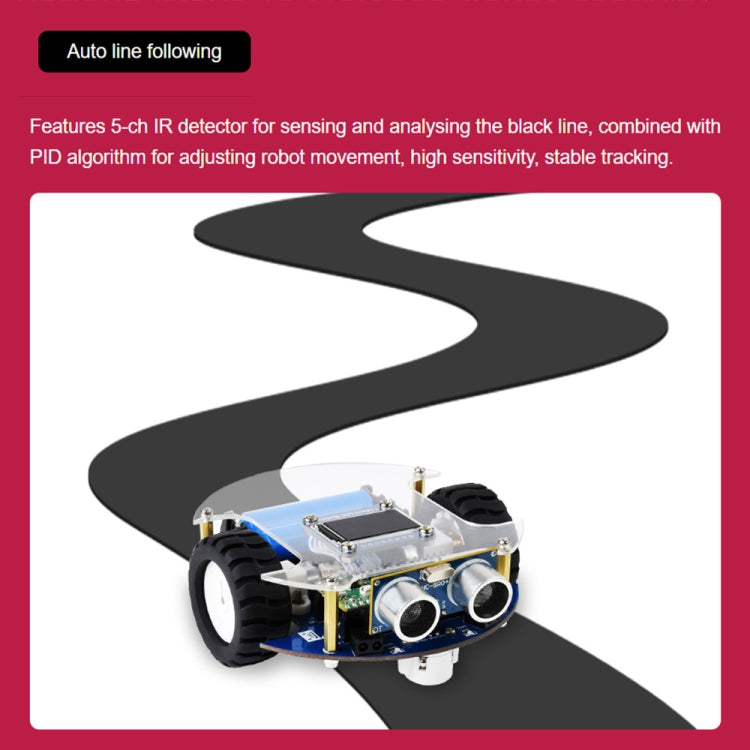

4. 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking

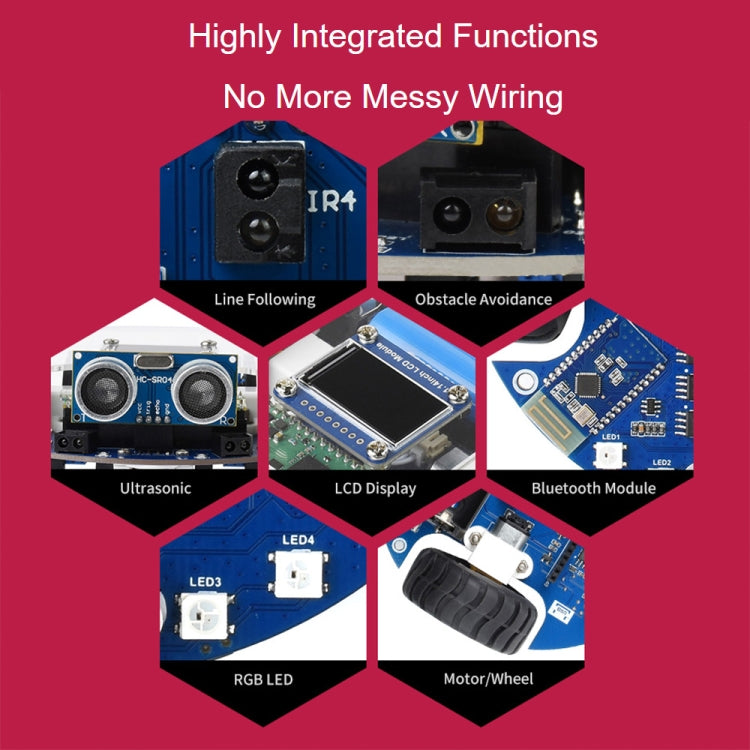

5. Onboard multiple smart robot sensors like line tracking, obstacle avoidance, no more messy wiring
6. 1.14 inch IPS colorful LCD display, 240 x135 pixels, 65K colors

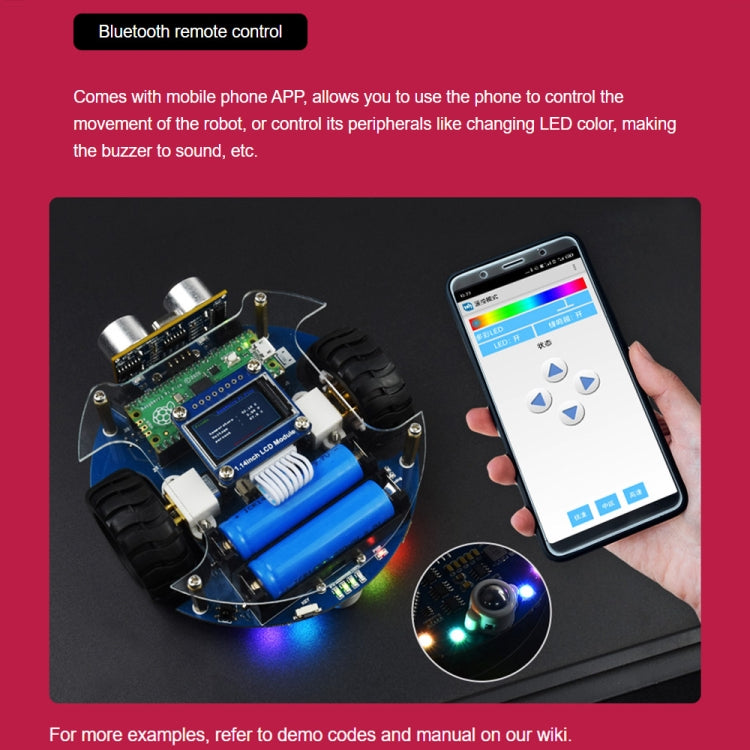

7. Integrates BT module, allows teleoperations like robot movement, RGB LED display color, buzzer, etc. by using mobile phone APP
8. N20 micro gearmotors, with metal gears, low noise, high accuracy
9. Colorful RGB LED, pretty cool!

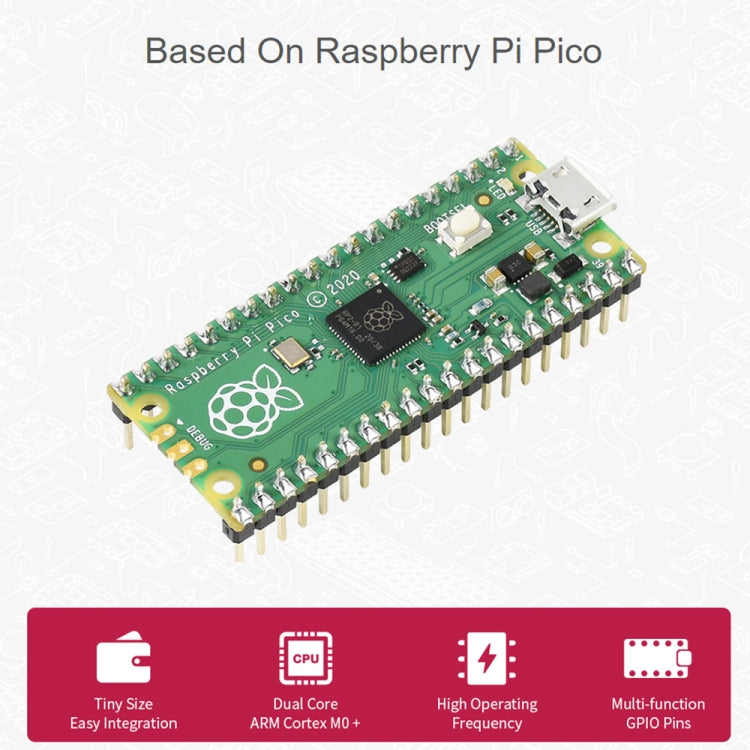

Raspberry Pi Pico controller board features:
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of on-board Flash memory
4. USB 1.1 with device and host support
5. Low-power sleep and dormant modes
6. Drag-and-drop programming using mass storage over USB

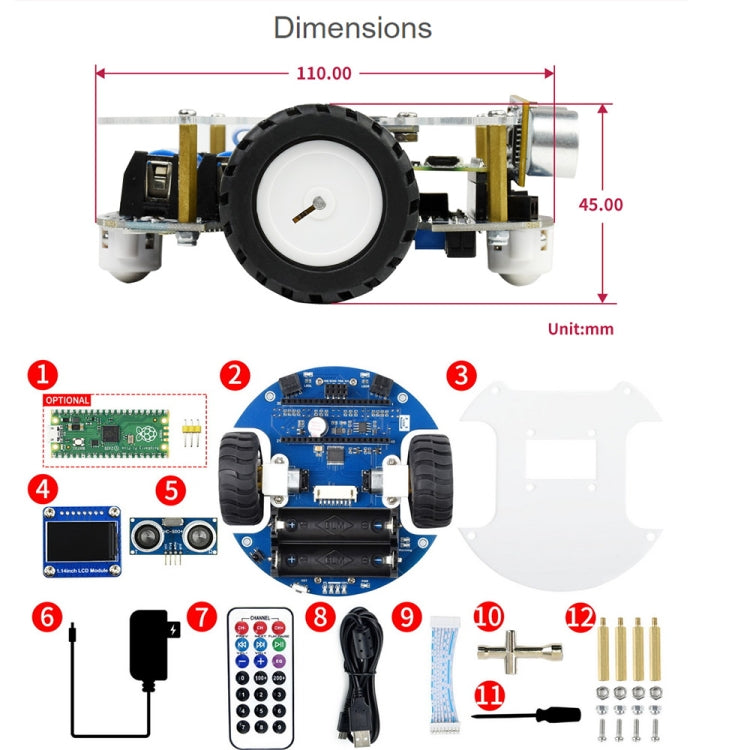

Package List
1. Raspberry Pi Pico (pre-soldered header) x1
2. PicoGo base board x1
3. PicoGo acrylic panel x1
4. 1.14inch LCD Module x1
5. Ultrasonic sensor x1
6. 5V 3A power supply x1
7. IR remote controller x1
8. USB-A to micro-B cable 1.2m x1
9. PH2.0 8Pin cable 5cm opposite side headers x1
10. Mini cross wrench sleeve x1
11. Screwdriver x1
12. Screws and standoffs pack x1
