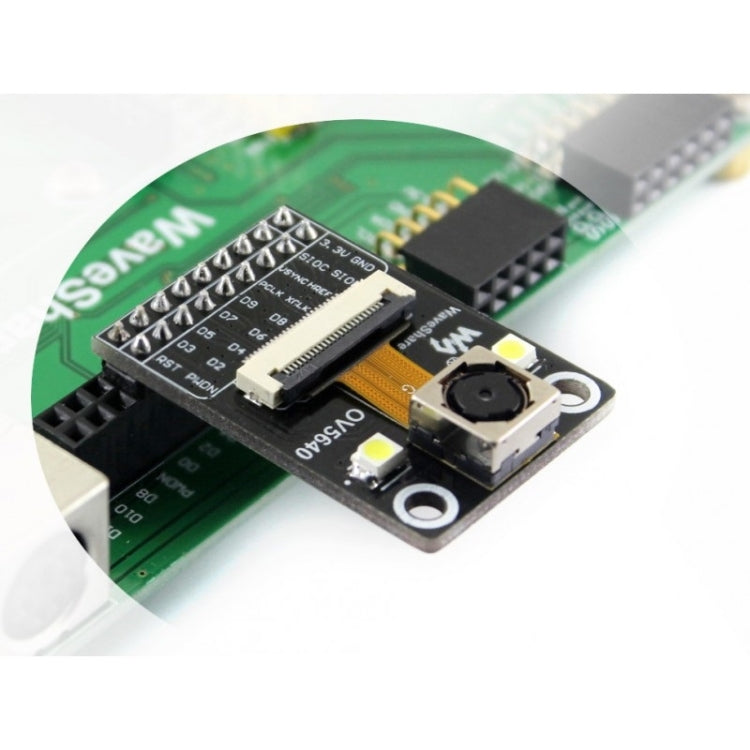

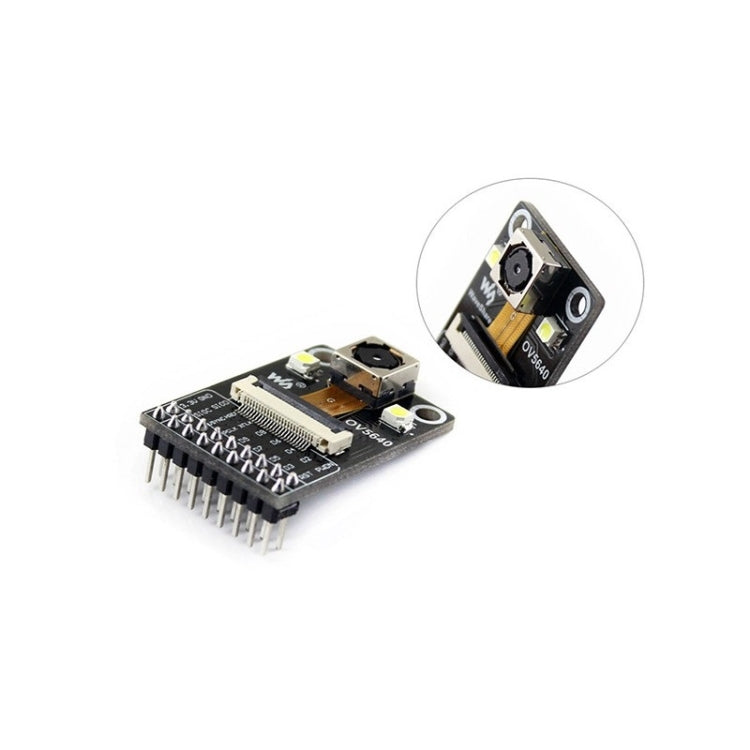

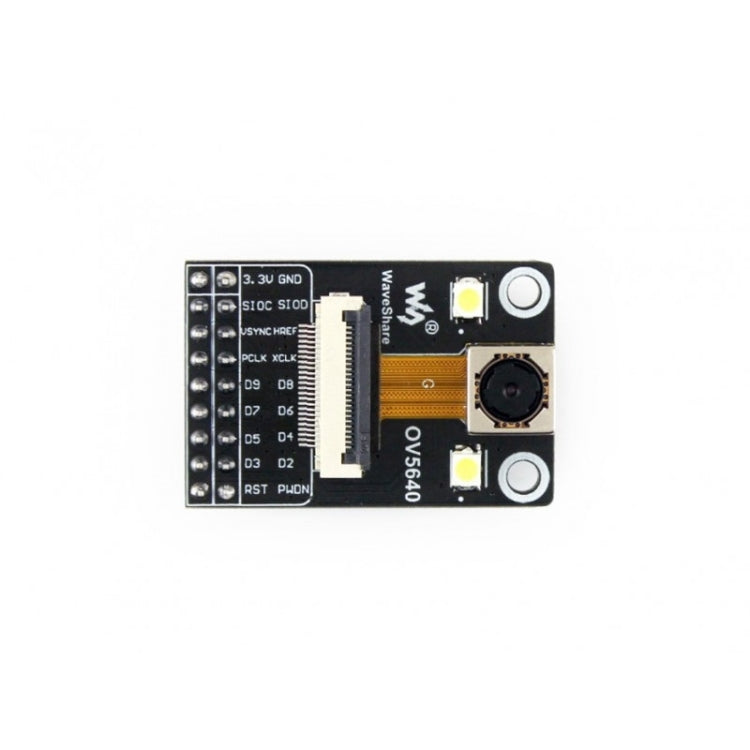

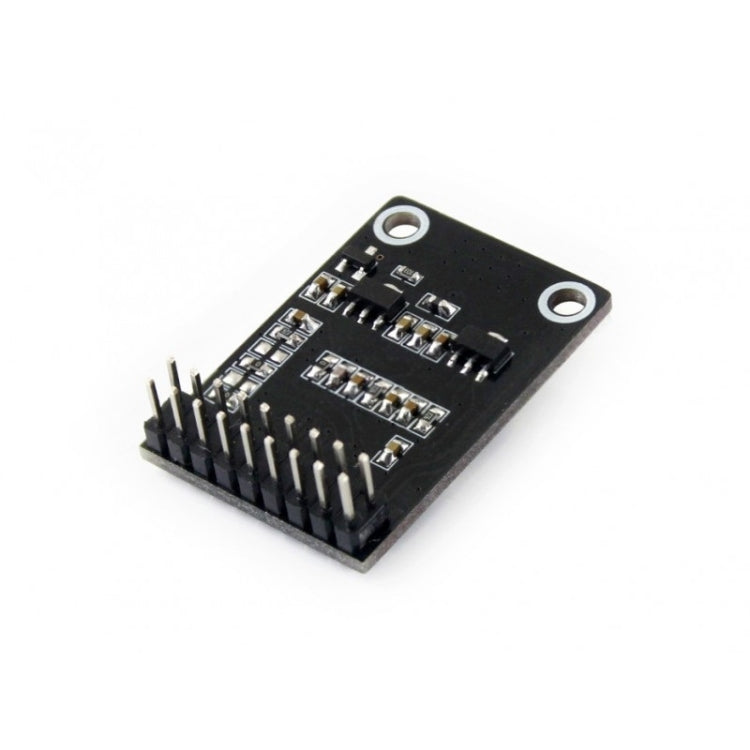

Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED

Features
1. Pixels: 5 megapixel
2. Resolution: 2592x1944
3. Auto focusing by detecting the object distance
4. Onboard flash LED, allowed to take pictures in the dark
5. Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
6. Lens:
- CCD size: 1/4inch
- Aperture (F): 2.8
- Focal Length: 3.37mm (adjustable)
- Diagonal: 67.4 degree
7. Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
8. Operating Voltage: 3.3V
9. Control Interface: SCCB (I2C compatible)
10. Data Interface: DVP 8-bit
11. Dimension: 35.70mm x 23.90mm
