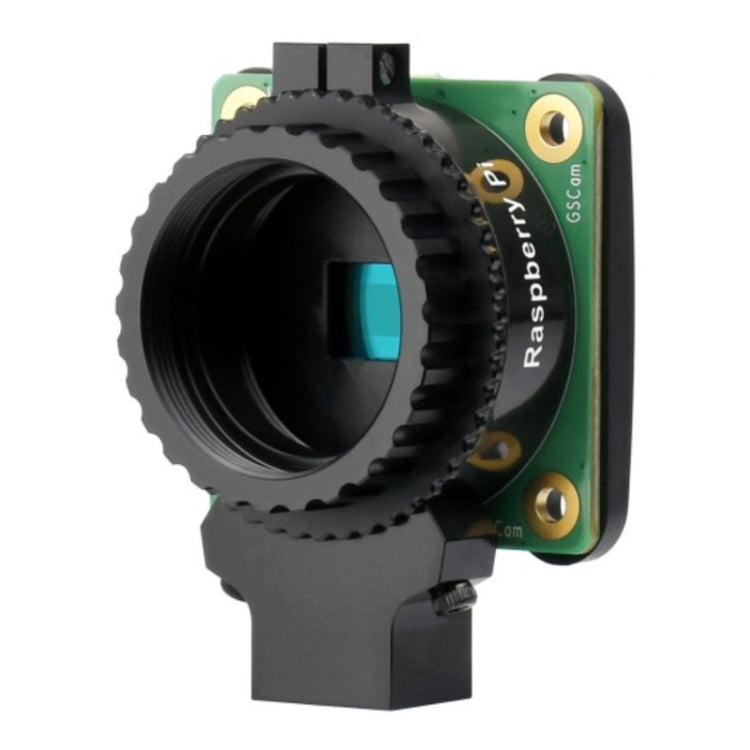

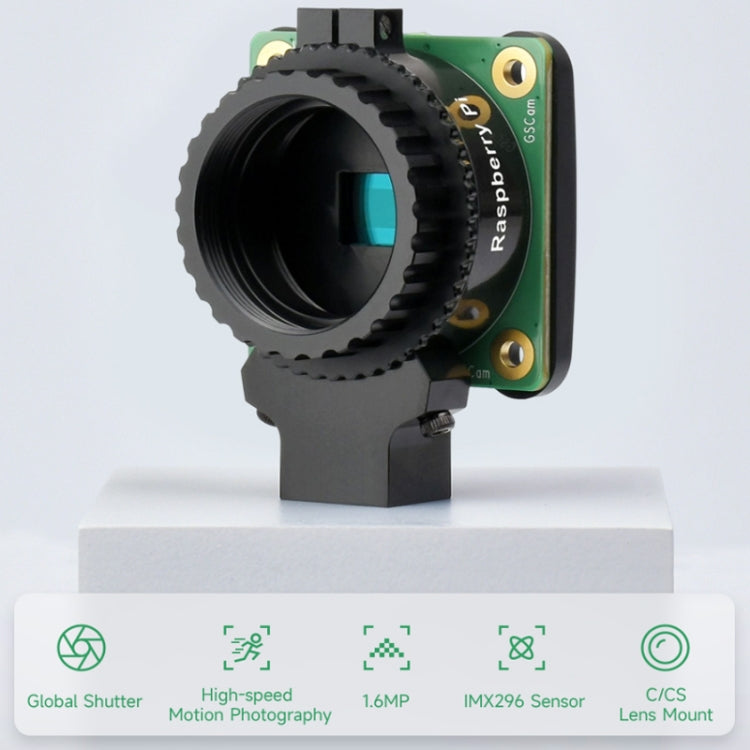

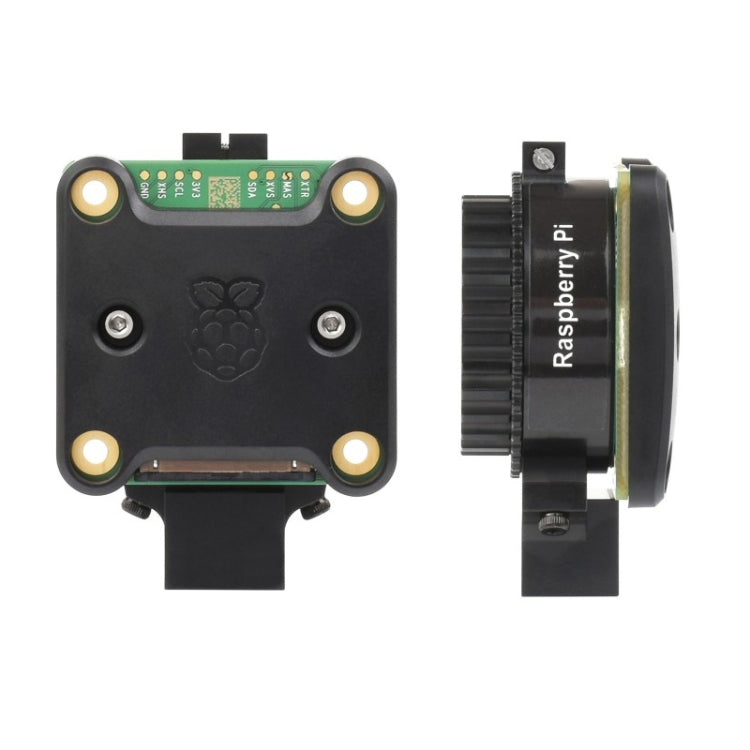

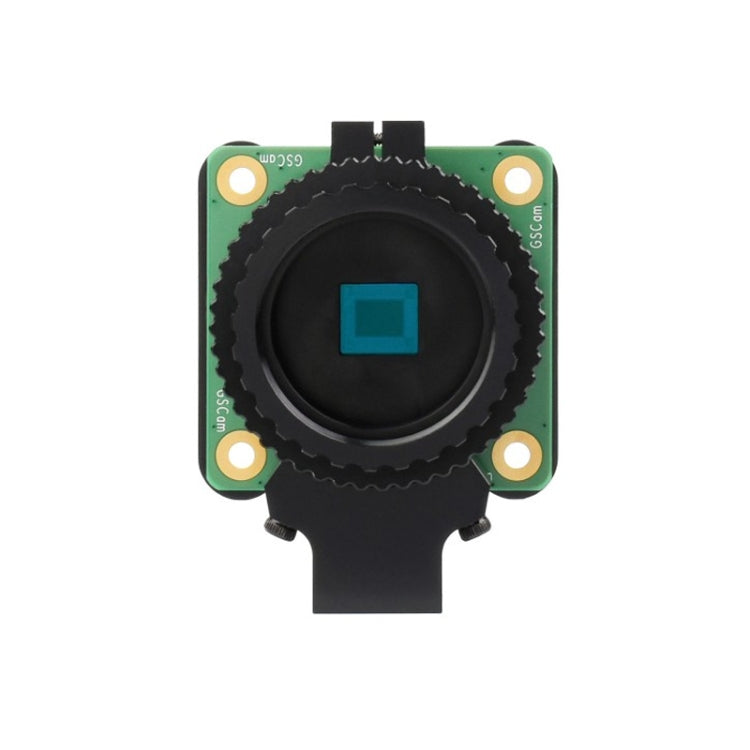

Waveshare Original Raspberry Pi 1.6MP Global Shutter Camera Module(24385)

Name: Waveshare Original Raspberry Pi 1.6MP Global Shutter Camera Module(24385)
Brand: WAVESHARE
SKU: TBD055030701A
Price: 2059.00 ZAR
Availability: InStock

R 2,059.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

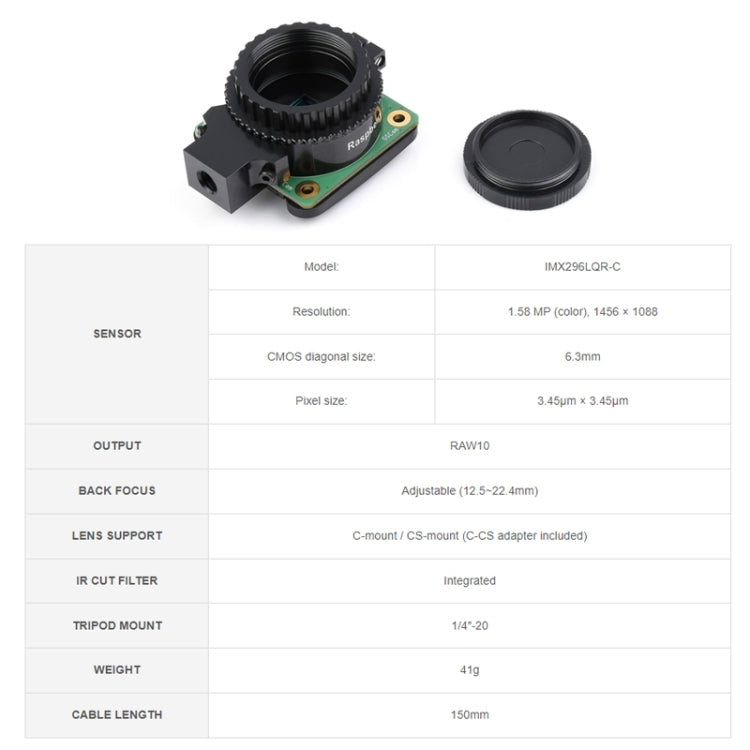

1. Resolution: 1.58 MP (color), 1456 × 1088
2. CMOS diagonal size: 6.3mm
3. Pixel size: 3.45μm × 3.45μm
4. Output: RAW10
5. Adjustable back focus (12.5~22.4mm)
6. The lens supports C-mount / CS-mount (including C-CS adapter)
7. IR CUT FILTER integration
8. Tripod: 1/4″-20
9. Weight: 41 grams
10. Data cable length: 150 mm
11. Based on IMX296 sensor with a resolution of 1.6MP
12. Capable of capturing fast moving objects without rolling shutter jelly effect, ideal for fast motion photography and machine vision applications
13. With a large pixel size of 3.45μm × 3.45μm providing high light sensitivity, the global shutter camera can operate at short exposure times (as low as 30μs with sufficient light)

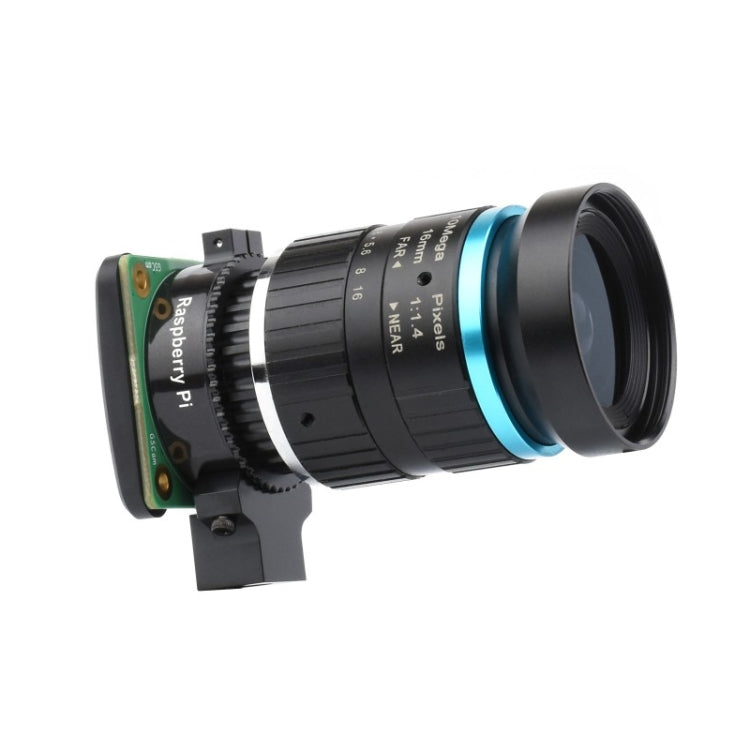

14. The global shutter camera includes a C to CS mount adapter for industrial lenses with C or CS mount

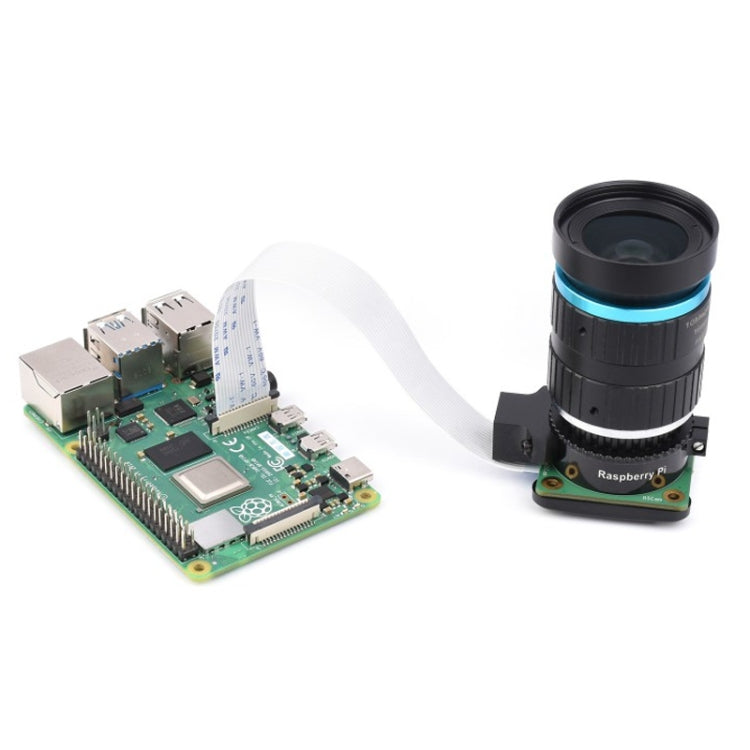

15. Compatible with all Raspberry Pi series boards (Extra adapter required for Raspberry Pi Zero or Compute Module series)
16. Global shutter, clearer imaging
17. The global shutter eliminates the jelly effect when shooting fast-moving objects, which is more suitable for high-speed motion capture

Packing list:
Global shutter camera x 1
C-CS adapter x 1
Dust cap x 1
screwdriver x 1
FFC ribbon x 1
box x 1
