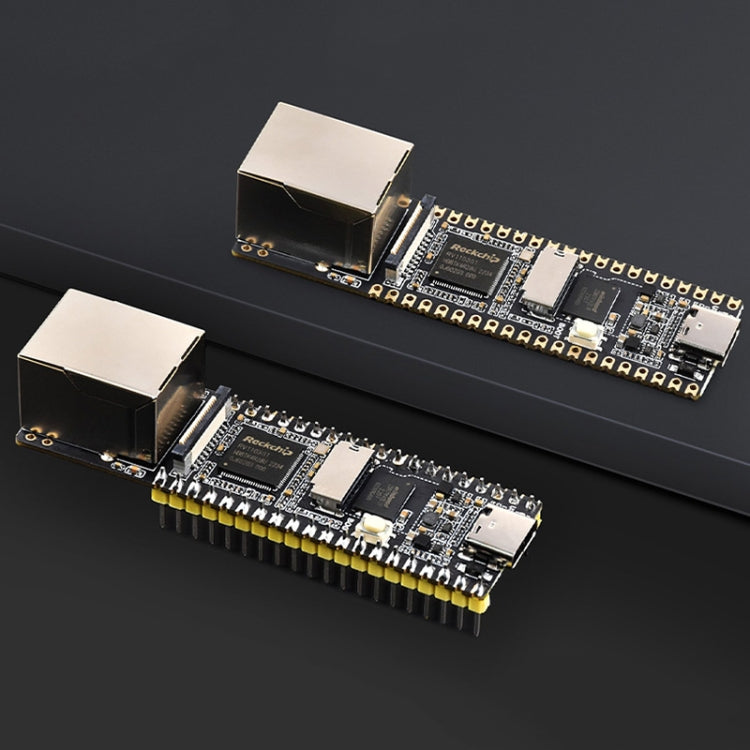

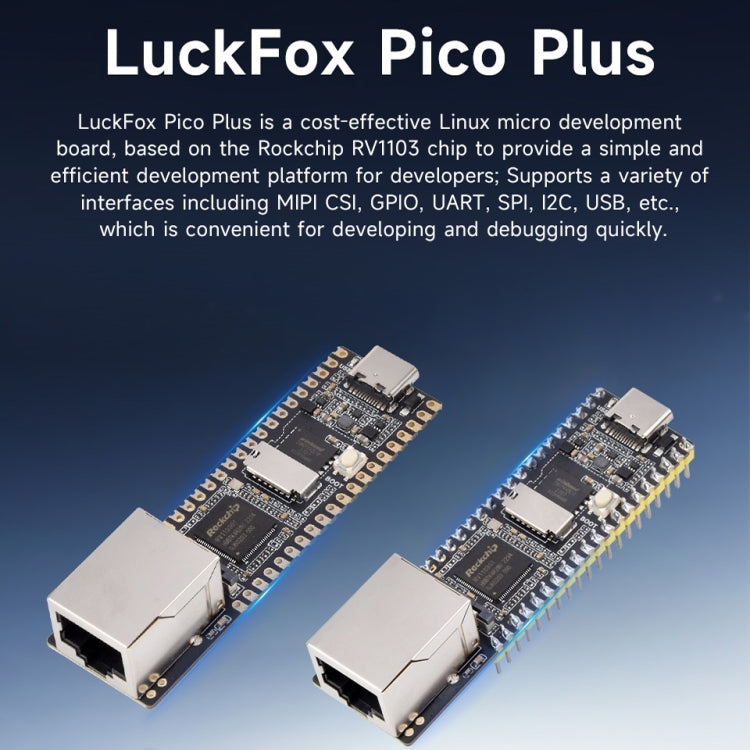

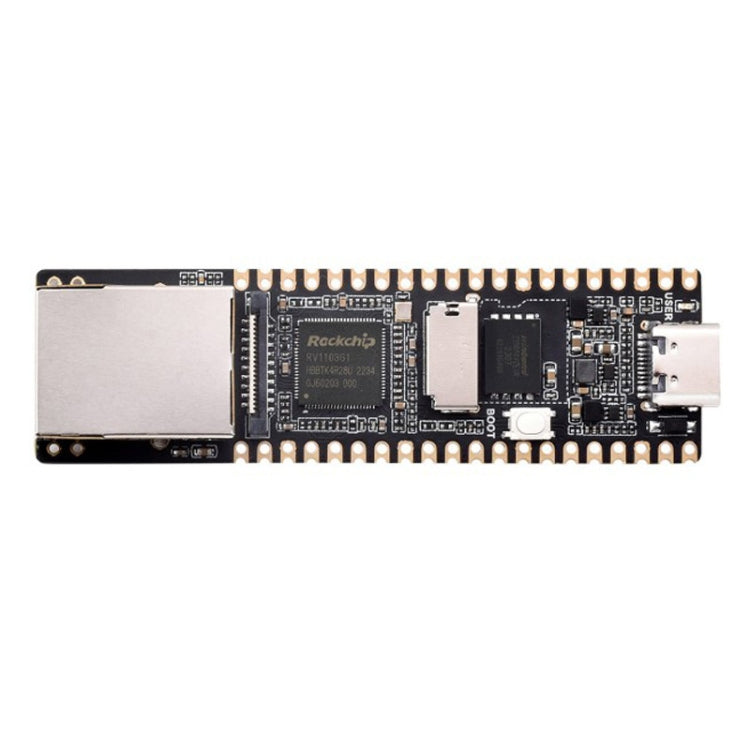

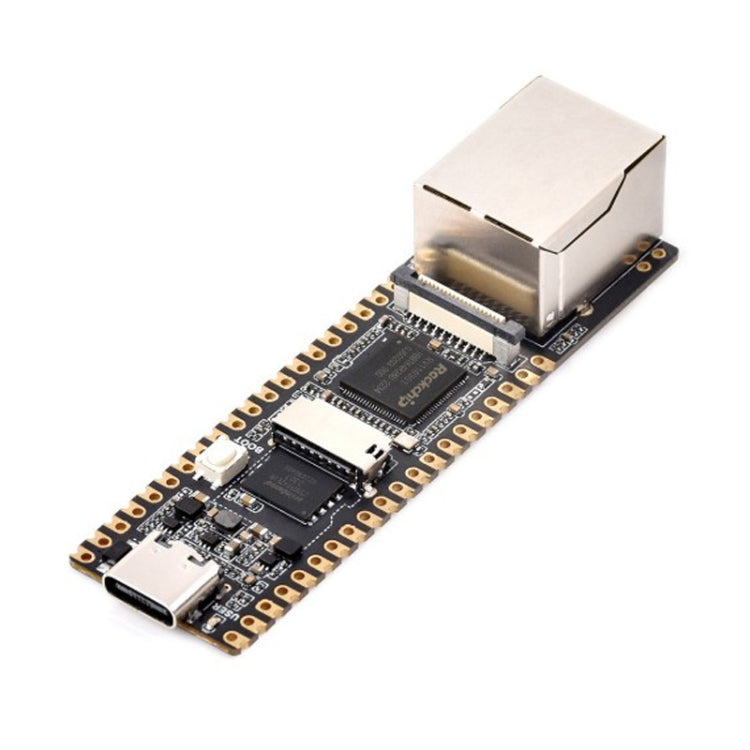

Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board, With Ethernet Port without Header

Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board, With Ethernet Port without Header

Regular price R 429.00
Regular price Sale price R 429.00
Sale Sold out
FREE DELIVERY on all orders.

In stock

🔥 Buy 2 items, get 25% off 3rd item 🔥 hurry while stock lasts!

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.

Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time: 5 - 10 working days.

Overseas Warehouse: Shipping from China.

Duties and Taxes

  • For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
  • For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.

For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


Features:
1. Single-core ARM Cortex-A7 32-bit core, integrated NEON and FPU
2. Built-in Rockchips self-developed fourth-generation NPU, with high calculation accuracy and support for int4, int8, and int16 mixed quantization. The computing power of int8 is 0.5 TOPS, and int4 can reach 1.0 TOPS
3. Built-in self-developed third-generation ISP3.2, supports 4 megapixels, and has various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction.
4. Powerful encoding performance, supports intelligent encoding mode and adaptive throttling according to the scene, saving more than 50% bit rate than conventional CBR mode, making camera images higher-definition, smaller in size, and doubling the storage space
5. The built-in RISC-V MCU supports low power consumption and fast startup, supports 250ms fast image capture and simultaneous loading of the AI model library, achieving "one second" face recognition
6. Built-in 16-bit DRAM DDR2, capable of meeting the required memory bandwidth
7. Integrated built-in POR, audio codec and MAC PHY

Product parameters:
1. Processor: Cortex A7@1.2GHz + RISC-V
2. NPU: 0.5TOPS, supports int4, int8, int16
3. ISP: Input 4M @30fps (maximum)
4. Memory: 64MB DDR2
5. USB: USB 2.0 host/device

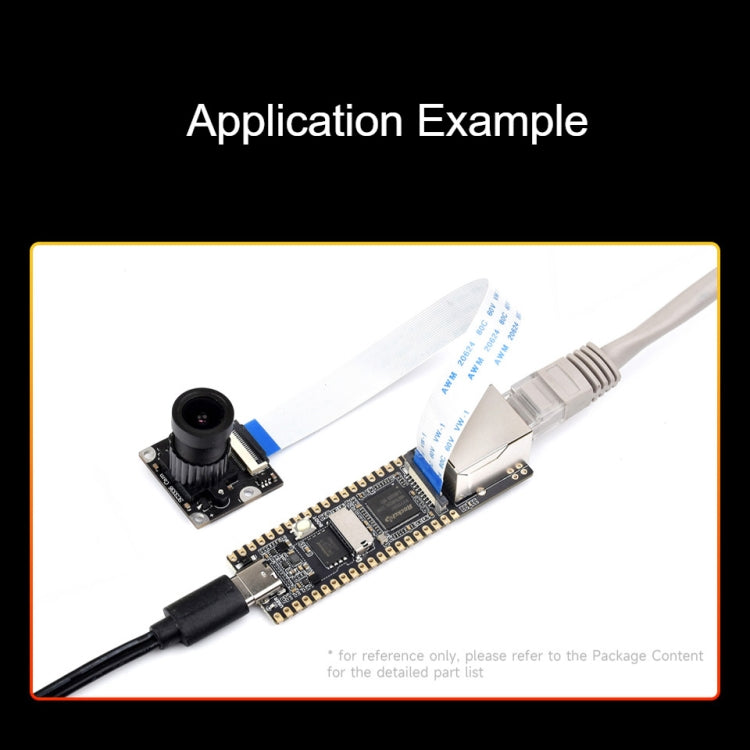

6. Camera: MIPI CSI 2-lane
7. GPIO: 25 × GPIO pins
8. Ethernet port: 10/100M Ethernet controller and embedded PHY
9. Default storage: SPI NAND FLASH (128MB)

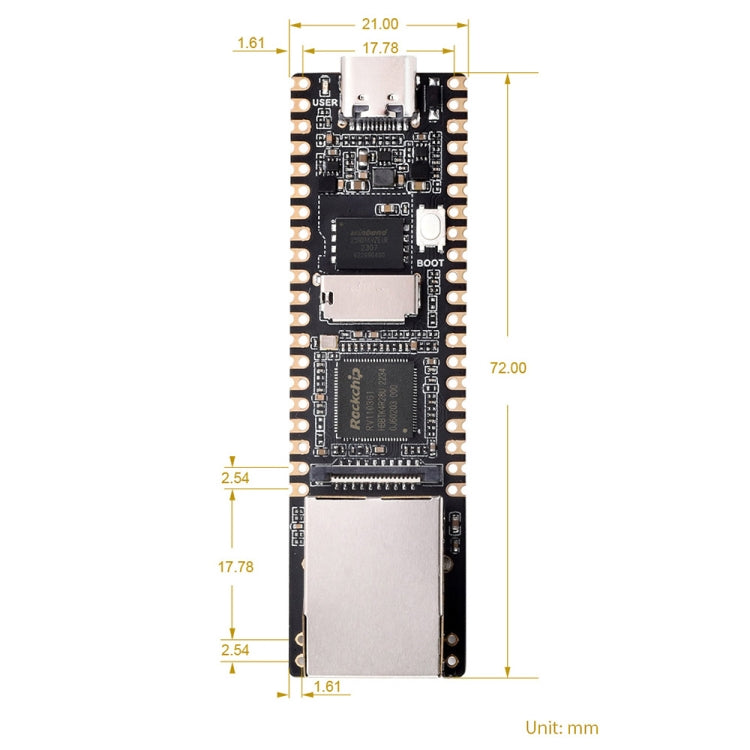

10. Product size: 72 x 21mm
11. Weight: 13g, 11g
