Waveshare LoRa HAT 433MHz Frequency Band for Raspberry Pi, Applicable for Europe / Asia / Africa

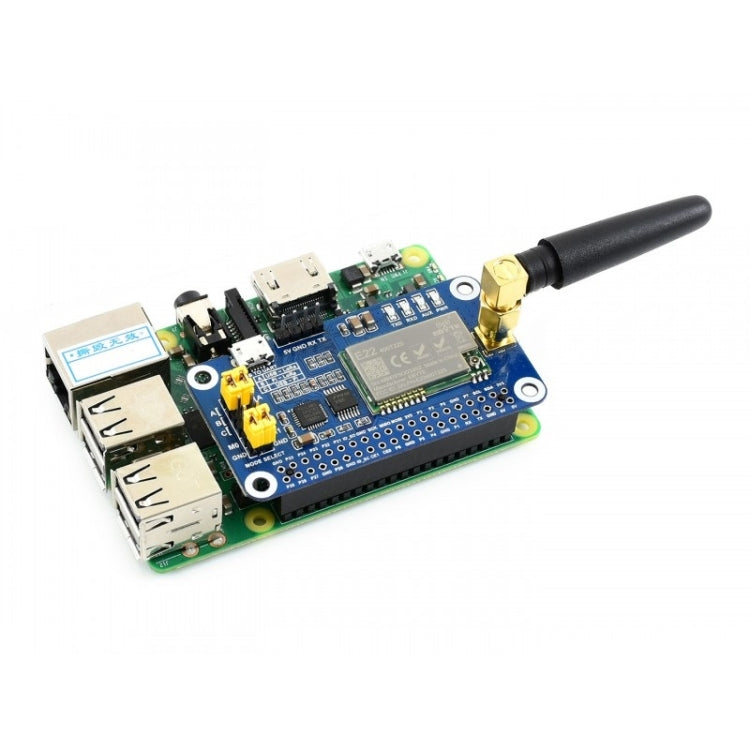

Waveshare LoRa HAT 433MHz Frequency Band for Raspberry Pi, Applicable for Europe / Asia / Africa

Regular price R 629.00
Regular price Sale price R 629.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Overview
1. This is a Raspberry Pi LoRa HAT based on SX1268, covers 433MHz frequency band. It allows data transmission up to 5km through serial port.
2. By utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of the module is as long as 5km, also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.
3. Comparing with normal LoRa modules, the SX1268 LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and anti-interference. It is suitable for various applications such as industrial control, smart home, data collection, etc.

Features
1.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
2. Onboard CP2102 USB TO UART converter, for serial debugging
3. Bring the UART control interface, for connecting host boards like Arduino/STM32
4. 4x LED indicators, easy to check the module status
5. LoRa spread spectrum modulation technology, up to 84 available signal channel, longer communication distance, more robust to interference
6. Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region
7. Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications
8. Customizable communication key which wont be retrieved, greatly improves the security of user data
9. Support LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment
10. Support RSSI signal intensity indicating, for evaluating signal quality, tuning the network
11. Support wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter
12. Support fixed-point transmission, broadcast, signal channel monitor
13. Come with development resources and manual (examples for Raspberry Pi/STM32)

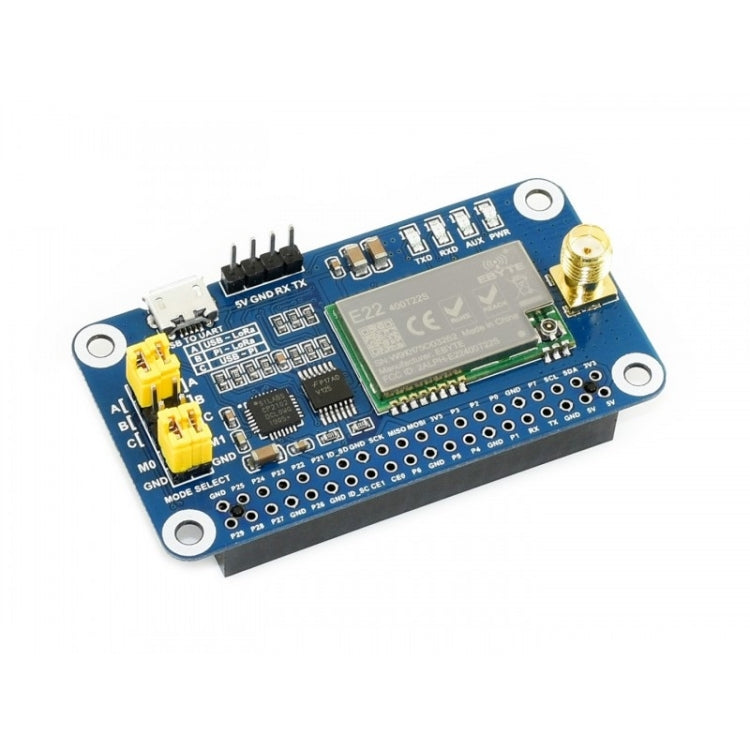

What is on Board
1. SX1268 LoRa module
2. 74HC125V: voltage level translator
3. CP2102: USB TO UART converter

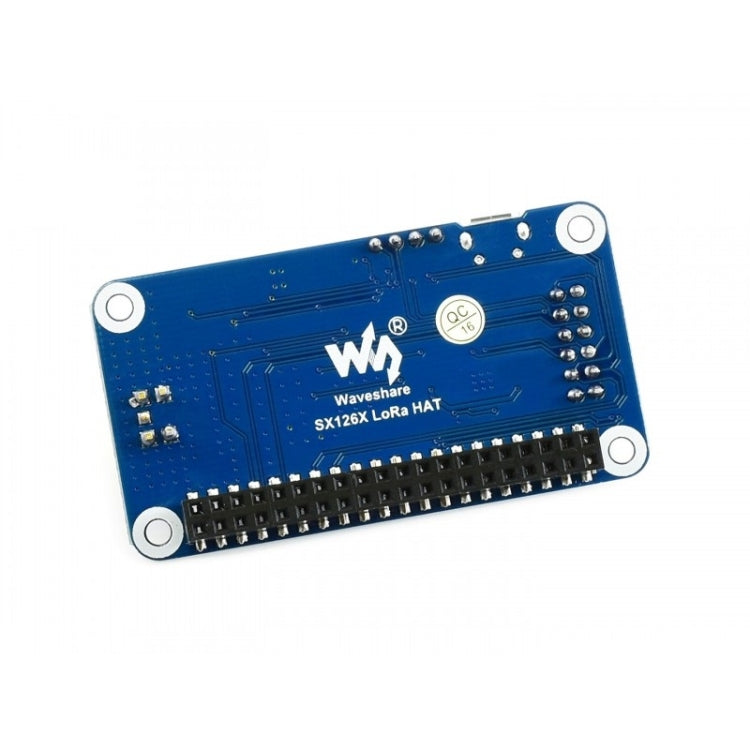

4. Raspberry Pi GPIO connector: for connecting with Raspberry Pi
5. USB TO UART port
6. UART header: for connecting host boards like STM32/Arduino
7. SMA antenna connector
8. IPEX antenna connector
9. Indicators:
- RXD/TXD: UART RX/TX indicator
- AUX: auxiliary indicator
- PWR: power indicator
10. UART selection jumpers
- A: Control the LoRa module through USB TO UART
- B: Control the LoRa module through Raspberry Pi
- C: Access Raspberry Pi through USB TO UART
11. LoRa mode selection jumpers
- Short M0, short M1: Transmission mode
- Short M0, open M1: Configuration mode
- Open M0, short M1: WOR mode
- Open M0, open M1: deep sleep mode

Specification
1. RF module: SX1268
2. Frequency band: 410.125 ~ 493.125MHz
3. Radio rate: 0.3kbps ~ 62.5kbps (programmable)
4. Transmit power: 22.0dBm (10/13/17/22dBm programmable)
5. Receive sensitivity: -147dBm (radio rate 2.4kbps)
6. Power consumption:
- Transmit current: 110mA (transient consumption)
- Receive current: 11mA
- Sleep current: 2uA (LoRa module software shutoff)
7. Communication interface: UART (TTL level)
8. Baudrate: 1200bps ~ 115200bps (9600bps by default)
9. Packet length: 240 Byte (32/64/128/240 Byte programmable)
10. Cache: 1000 Byte
11. Experimental range: 5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)
12. Power supply: 5V
13. Logic level: 3.3V/5V
14. Operating temperature: -40~85 degree C
15. Applications: Smart home, industrial sensors, building automation, smart meters, and more other IoT applications
16. Dimensions: 7cm x 12cm x 2cm
17. Weight: 69g
18. Packing List:
- SX1268 433MHz LoRa HAT x1
- USB type A plug to micro plug cable x1

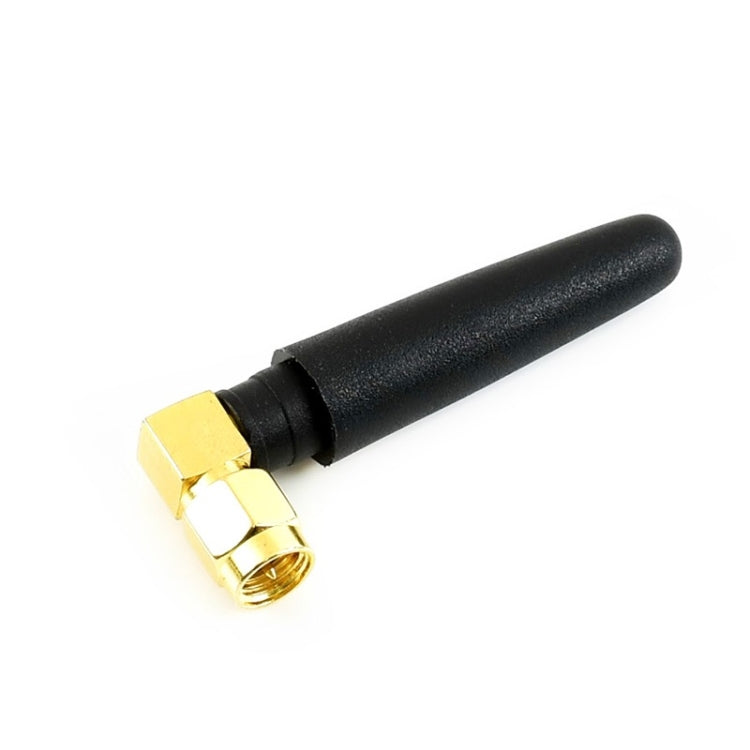

- 433MHz antenna x1

View full details
