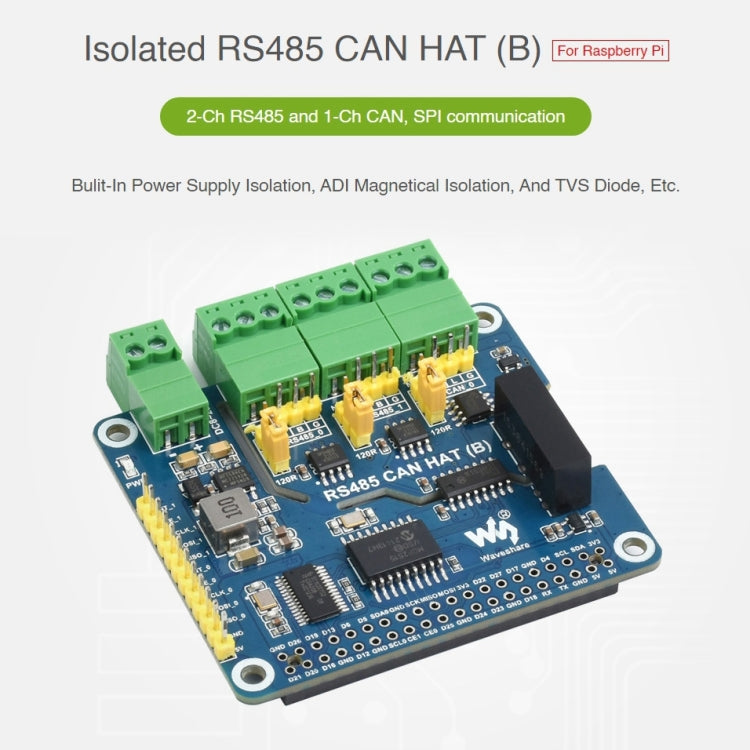

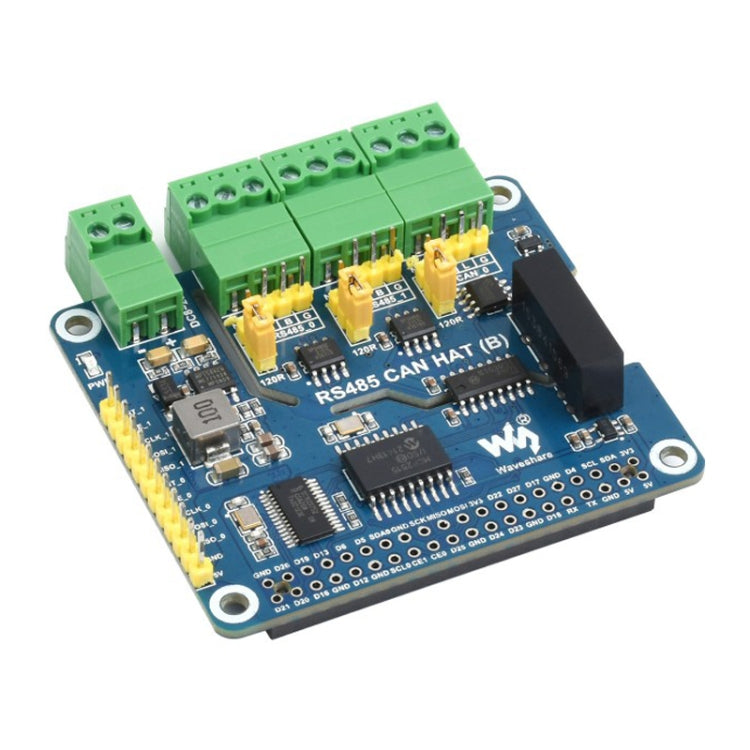

Waveshare Isolated RS485 CAN HAT For Raspberry Pi

Name: Waveshare Isolated RS485 CAN HAT For Raspberry Pi
Brand: WAVESHARE
SKU: EDA0039550
Price: 689.00 ZAR
Availability: InStock

R 689.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

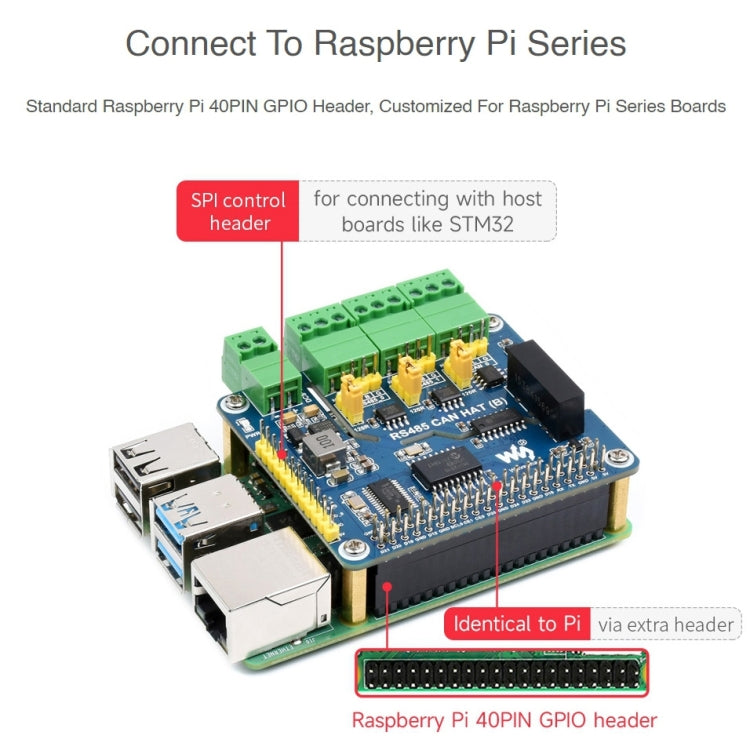

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

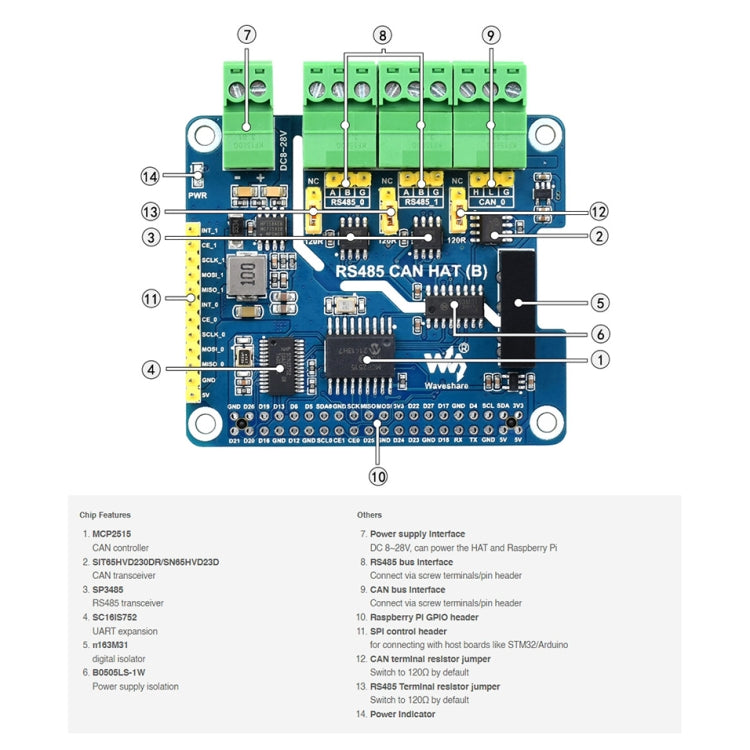

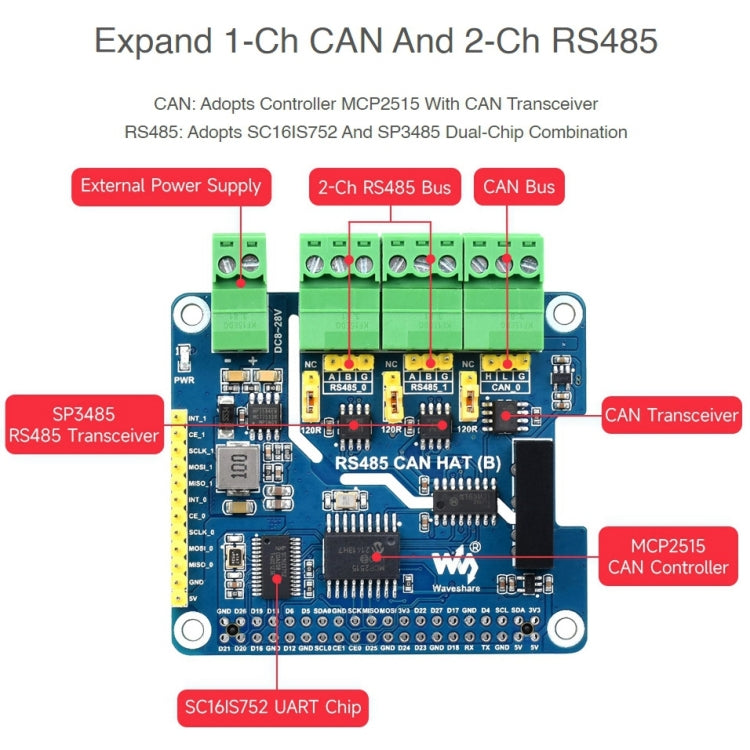

2. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN

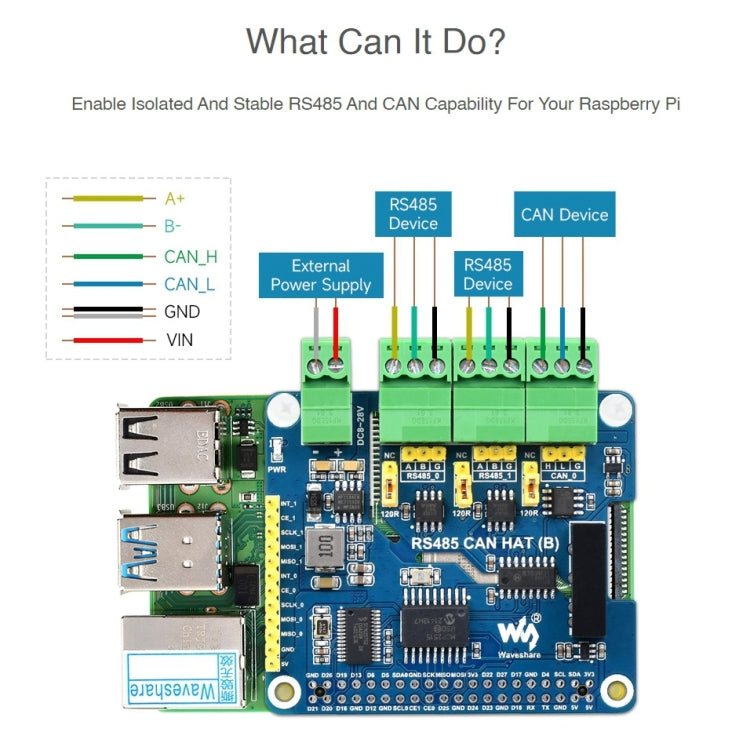

3. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
4. Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time

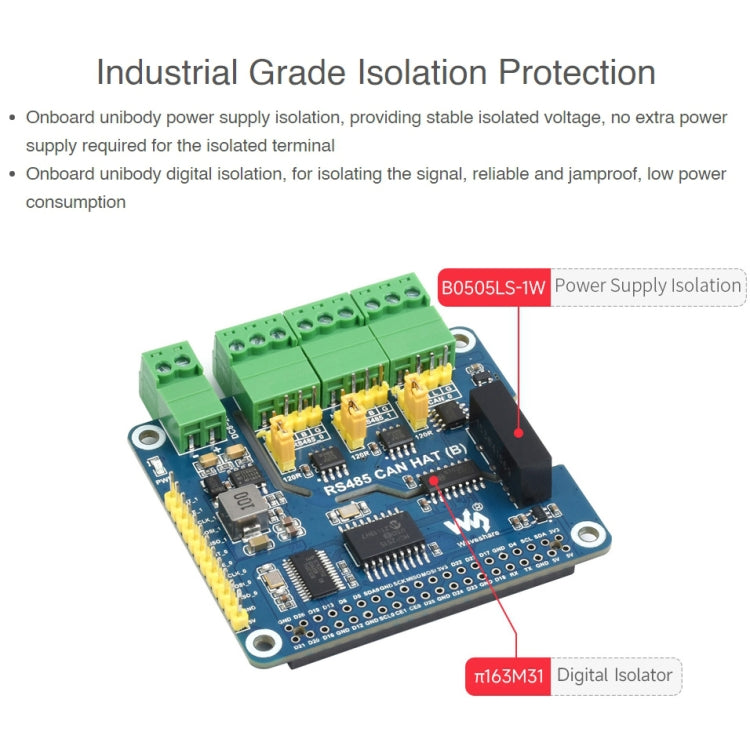

5. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
6. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
7. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
8. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
9. Onboard 120Ω terminal resistor, configured by jumper
10. Onboard terminals and pin headers, more convenient connection

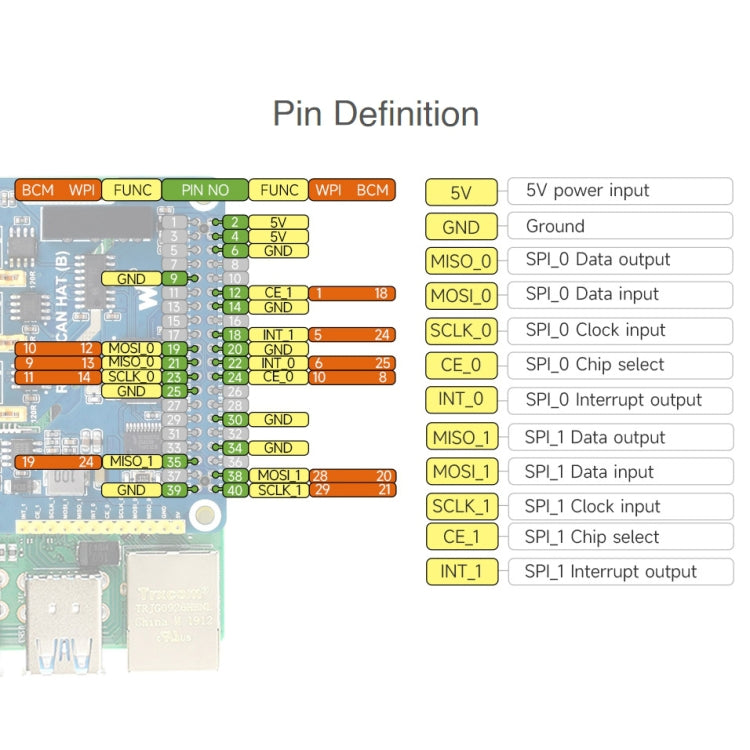

11. Breakout SPI control pins, for connecting with host control boards
