Waveshare ESP32-S3 7-Inch 800 X 480 Touch Display Development Board(27078)

Name: Waveshare ESP32-S3 7-Inch 800 X 480 Touch Display Development Board(27078)
Brand: Waveshare
SKU: TBD0605307401A
Price: 1359.00 ZAR
Availability: InStock

R 1,359.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz
2. Support 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth5 (LE), onboard antenna
3. Built-in 512KB SRAM and 384KB ROM, stacked 8 MB Flash and 8 MB PSRAM
4. Onboard 7-inch capacitive touch screen, 800×480 resolution, 65K color
5. Support I2C interface to control capacitive touch, 5-point touch, support interrupt

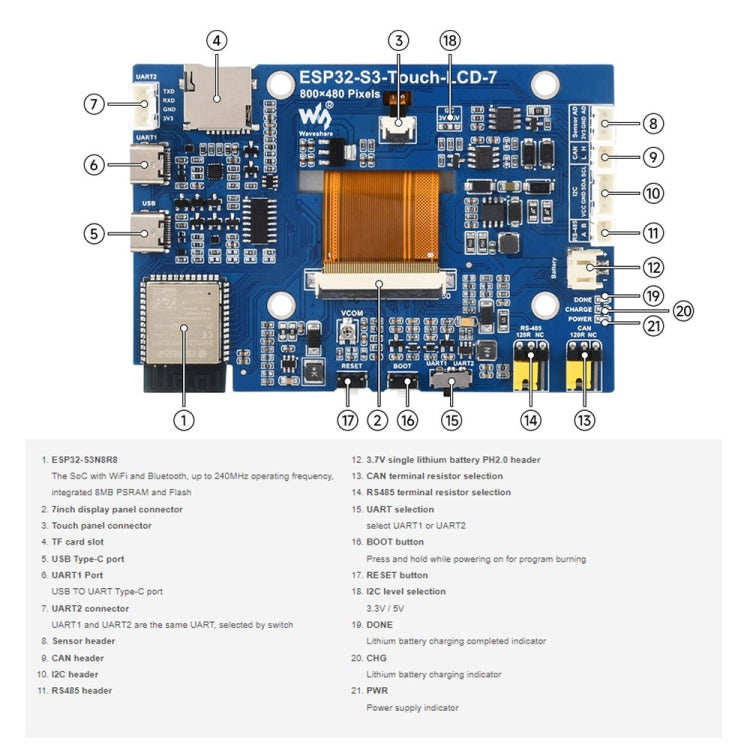

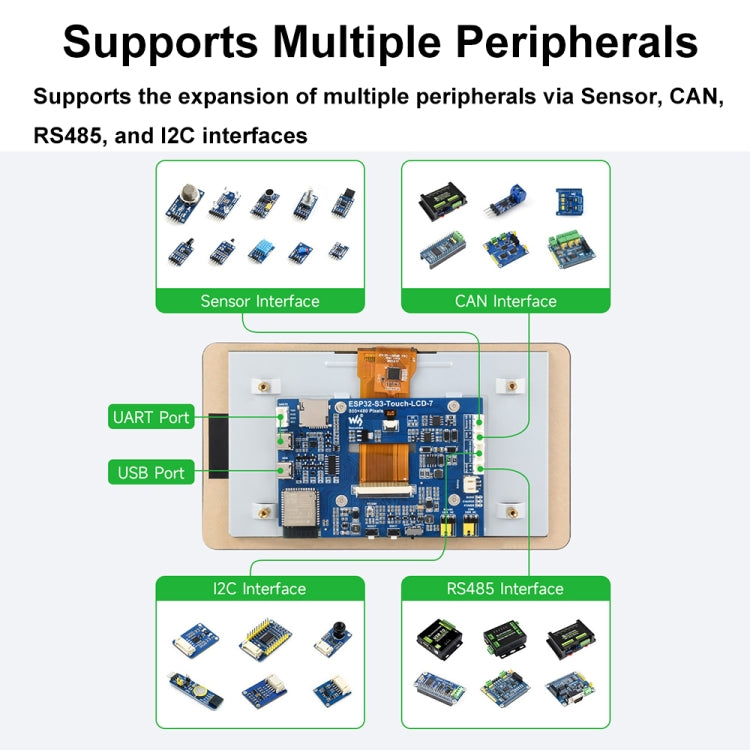

6. Onboard CAN, RS485, I2C interface and Micro SD card holder, etc., integrated full-speed USB serial port
7. Support flexible clock, module power supply individual setting and other precise control, to achieve multi-scenario low power mode
8. Application areas: HMI human-machine interface, LVGL GUI development

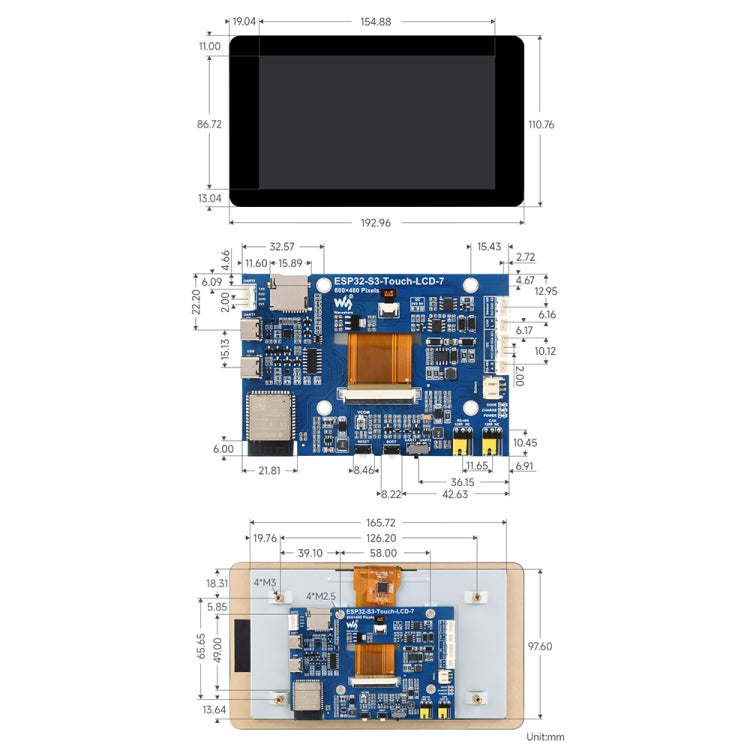

9. Product size: 192.96 x 110.76mm
10. Weight: 291g
