Waveshare DHT22 Temperature-Humidity Sensor

Name: Waveshare DHT22 Temperature-Humidity Sensor
Brand: Waveshare
SKU: ZY16356276
Price: 309.00 ZAR
Availability: InStock

R 309.00

Sale Sold out

FREE DELIVERY on all orders.

Quantity

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Overview

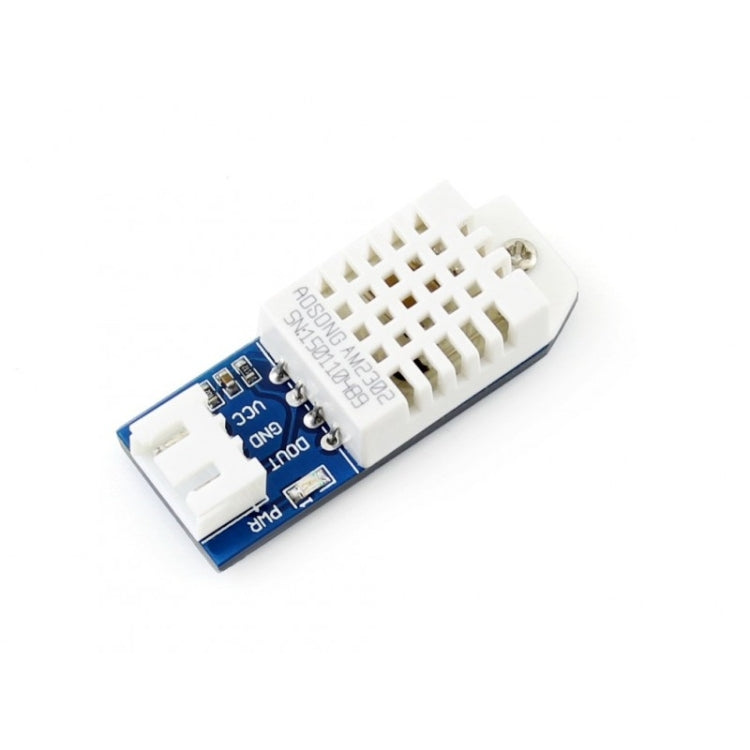

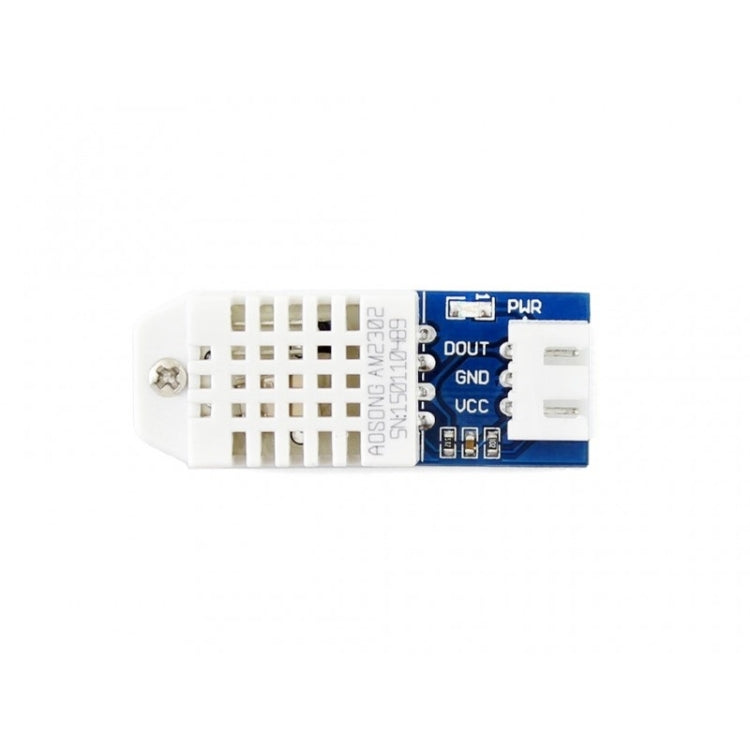

1. This is a calibrated digital temperature and humidity module with onboard sensor DHT22 (AM2302), which features higher accuracy and wider measuring range than DHT11.
2. It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.

Specifications
1. Temperature
- Resolution : 0.1degree C
- Accuracy: +/-0.5 degree C
- Measuring range: -40 degree C ~ 80 degree C
2. Humidity
- Resolution: 0.1%RH
- Accuracy: +/-2%RH (25degree C)
- Measuring range: 0%RH ~ 99.9%RH
3. Operating voltage: 3.3V ~ 5.5 V
4. Recommended storage condition
- Temperature: 10 degree C ~40 degree C
- Humidity: 60%RH or below

Applications
1. Weather station
2. Humidity controller
3. Test & detection device

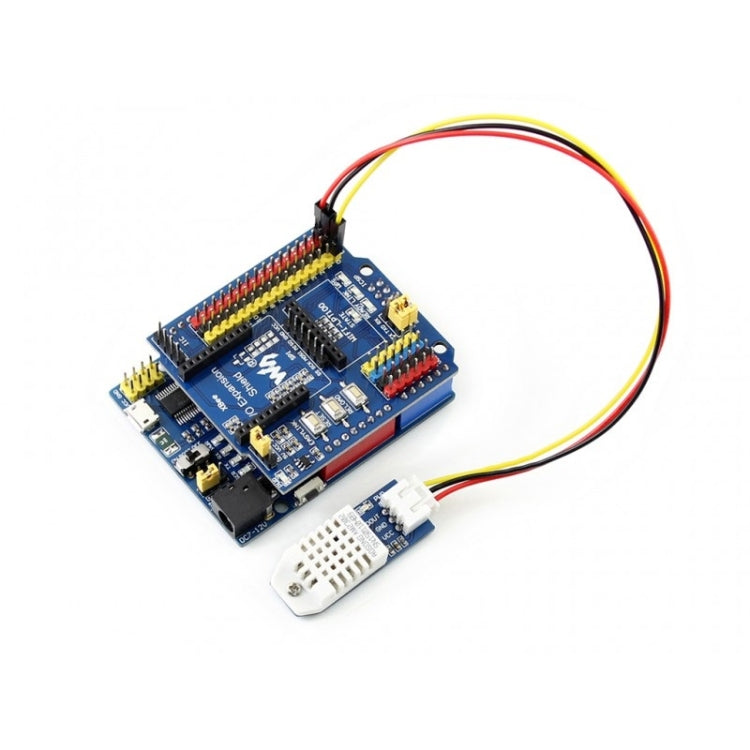

How to Use
In the case of working with a MCU:
1. VCC: 3.3V ~ 5.5V
2. GND: GND
3. DOUT: MCU.IO
