Waveshare 26369 1.28-Inch Round LCD Screen RP2040 MCU Board without Touch

Waveshare 26369 1.28-Inch Round LCD Screen RP2040 MCU Board without Touch

Regular price R 749.00
Regular price Sale price R 749.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

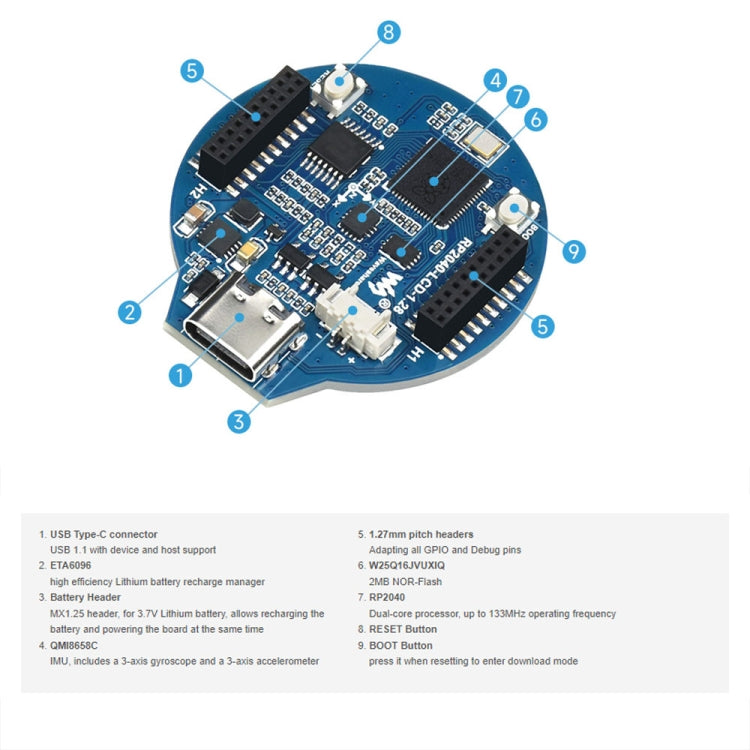

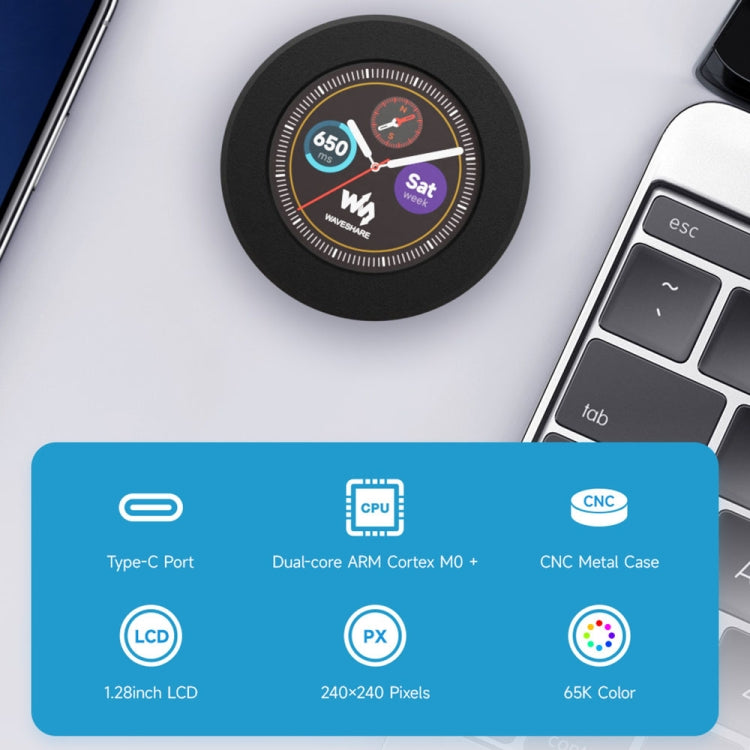

Non-touch version features:
1. RP2040 microcontroller chip designed by Raspberry Pi
2. Equipped with dual-core ARM Cortex M0+ processor, running frequency up to 133MHz flexible clock
3. Built-in 264KB SRAM and 2MB onboard Flash

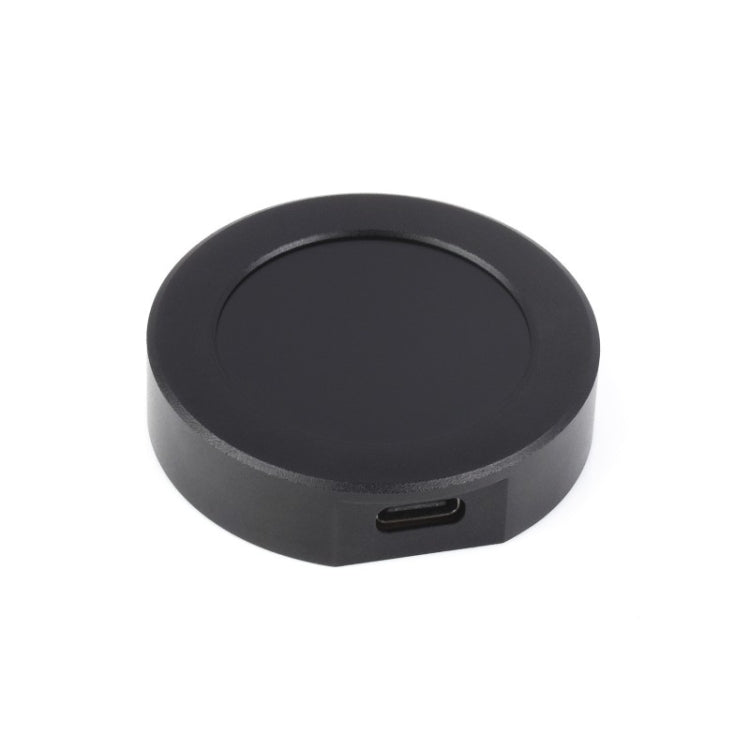

4. Adopt Type-C interface, no need to worry about forward and reverse insertion

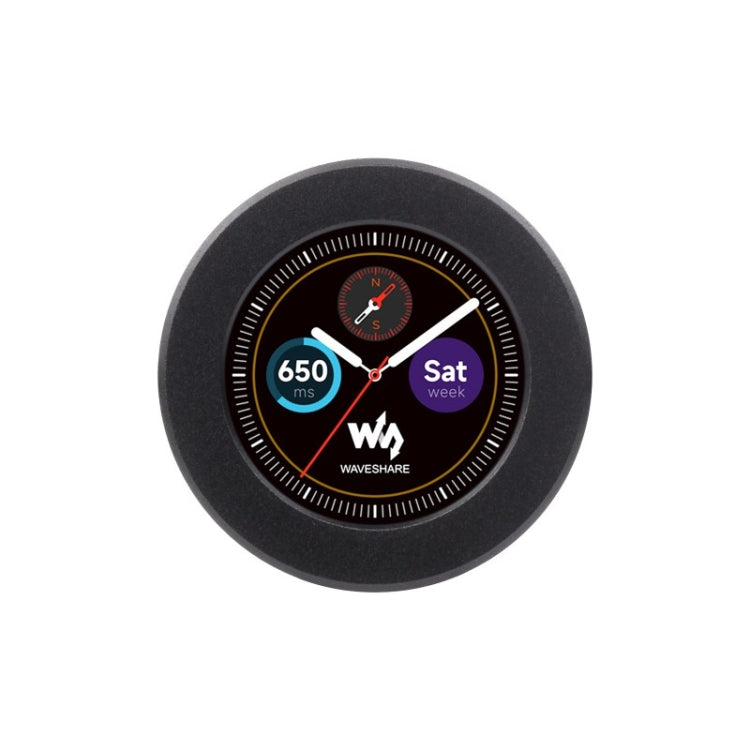

5. Onboard 1.28-inch 240×240 resolution, 65K color IPS LCD display, can clearly display color pictures
6. Onboard lithium battery charging and discharging interface, which is conducive to mobile scene use

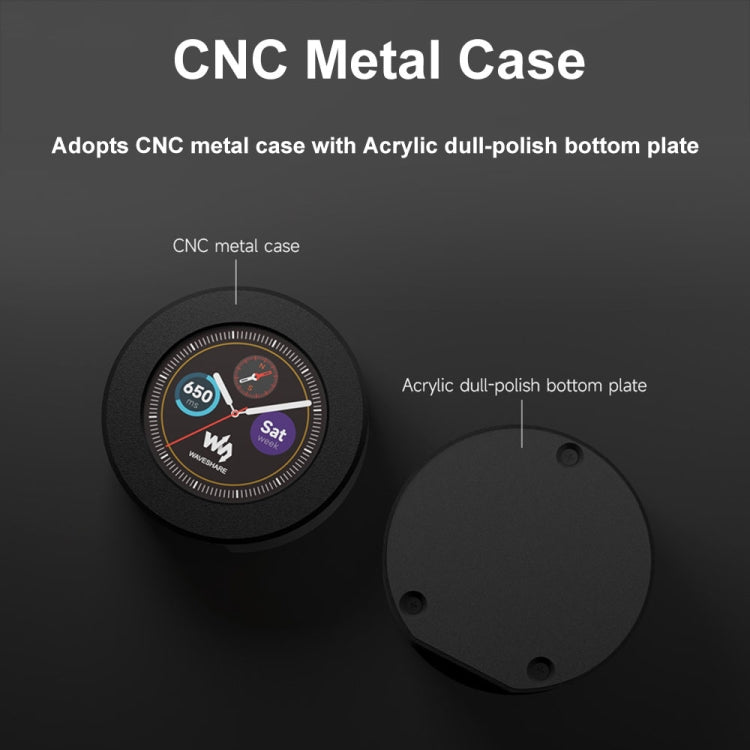

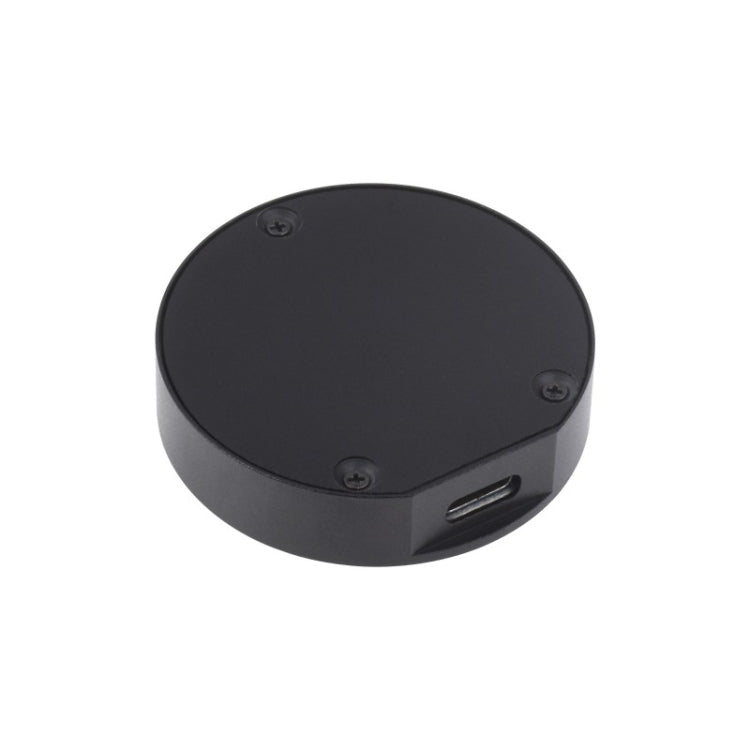

7. The upper shell is made of CNC metal material, and the back is equipped with acrylic frosted bottom plate

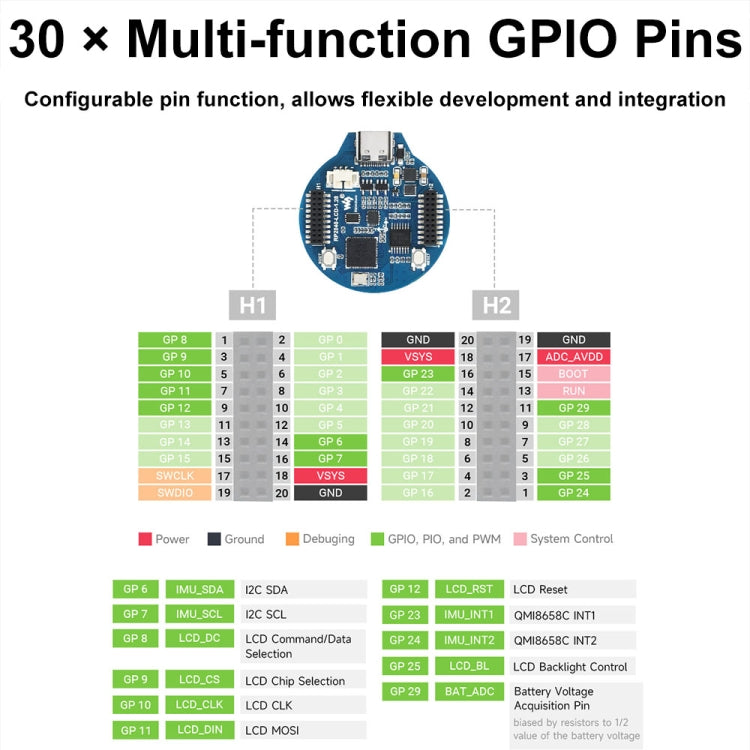

8. All GP10 are led out through 1.27 pitch female headers (a total of 30, but some pins have been connected to the internal circuit, and attention should be paid when reused. Please refer to wiki for details)
9. USB1.1 host and device support
10. Supports low-power sleep and hibernation modes
11. Can be identified as a large-capacity storage device through USB for drag-and-drop program download
12. 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 16 controllable PWM channels
13. Accurate on-chip clock and timer
14. Temperature sensor
15. On-chip accelerated floating-point library
16. 8 programmable I/O (PIO) state machines for custom peripheral support

Packing list:
-Display x 1
