Waveshare 25515 Round 2D Codes Scanner Module Barcode/QR Code Reader, With LED Indicator

Waveshare 25515 Round 2D Codes Scanner Module Barcode/QR Code Reader, With LED Indicator

Regular price R 659.00
Regular price Sale price R 659.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

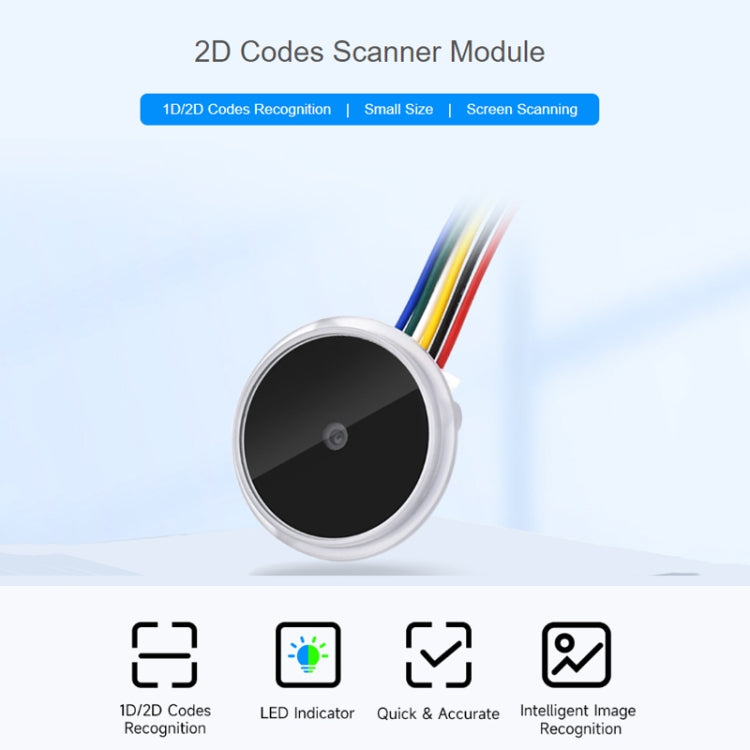

Features:

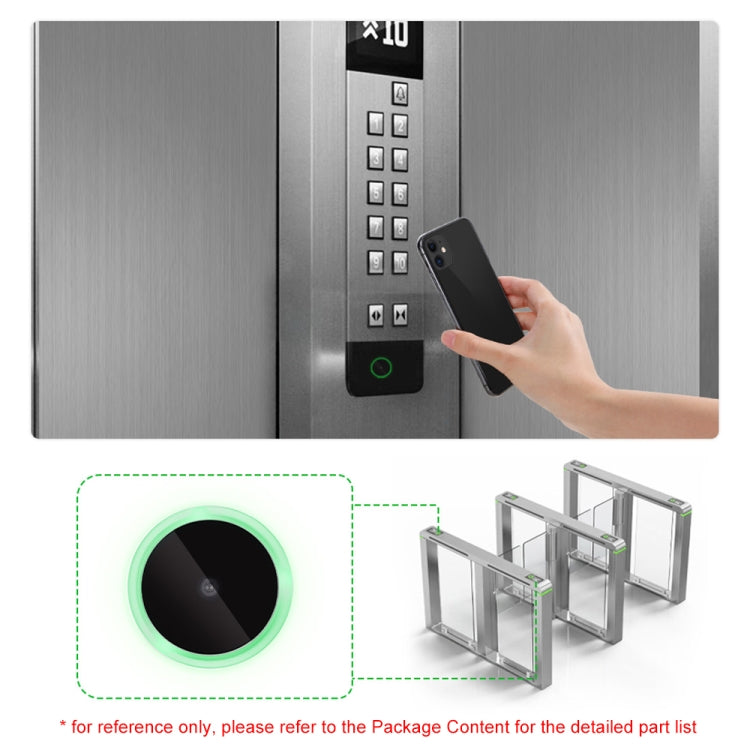

1. Suitable for barcode scanning applications such as elevators.
2. Use advanced image recognition algorithms to easily decode various one-dimensional or two-dimensional codes.

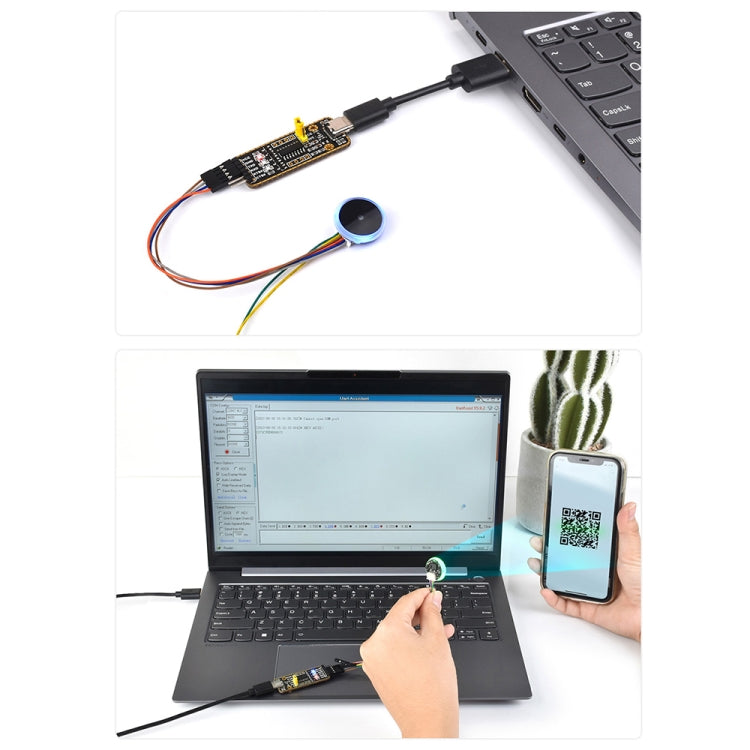

3. Onboard UART interface, which can be easily integrated into various embedded devices.
4. Compact size and high integration

Product parameters:
1. Resolution: 640 x 480
2. Scanning angle: horizontal 70 degrees, vertical 55 degrees, rolling 360 degrees
3. Scan mode: induction, continuous
4. Accuracy: one-dimensional code is greater than or equal to 5mil, two-dimensional code is greater than or equal to 10mil

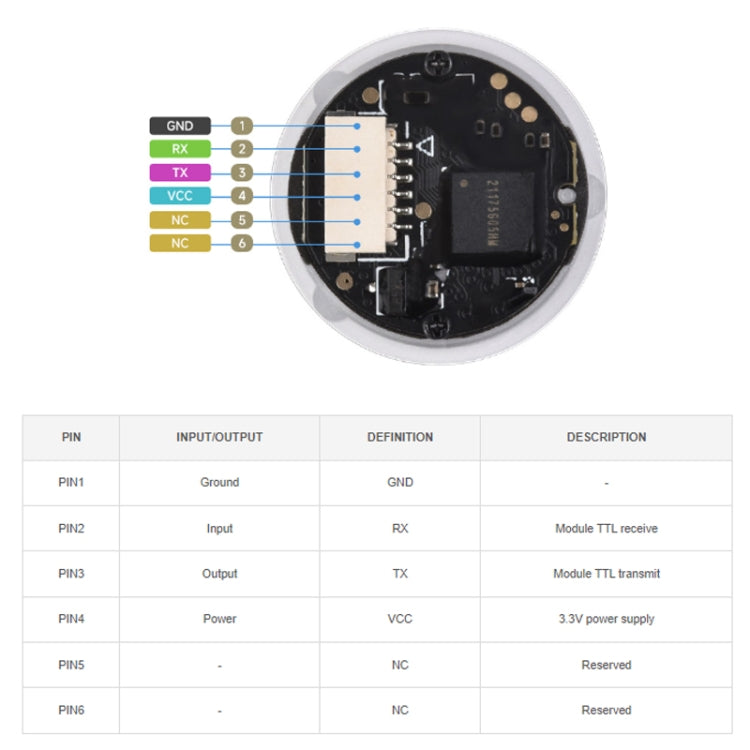

5. Communication interface: UART port (default 9600 8N1)

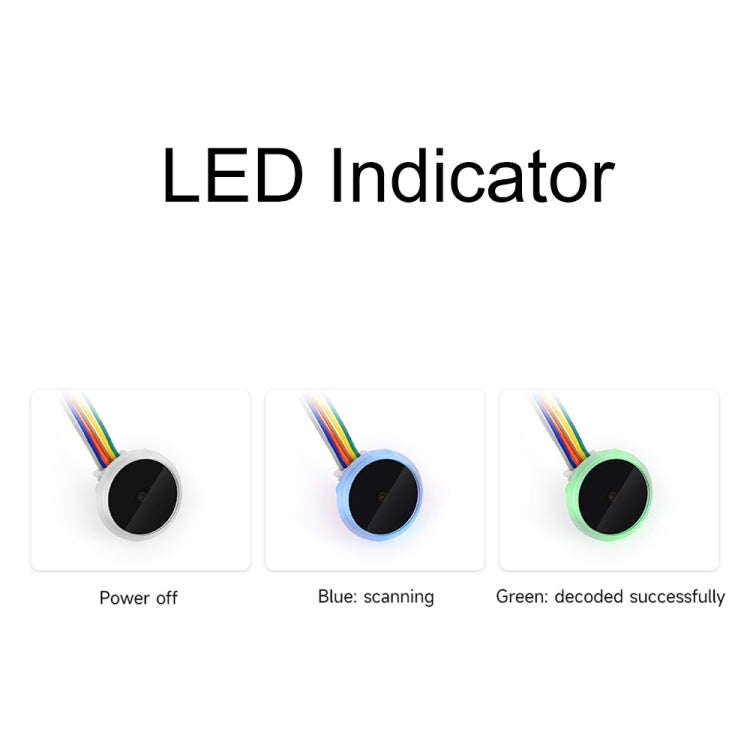

6. LED indicator:
Blue: Scan
Green: decoding successful
7. Power supply: 3.3V
8. Current: 120mA
9. Security protection:
Electrostatic protection: contact discharge 6 kV, air discharge ±12KV
IP protection: IP54 (front)
10. Operating temperature: -30 to 70 degrees Celsius
11. Storage temperature: -40 to 80 degrees Celsius
12. Working humidity: 5%RH-95%RH (non-condensing)

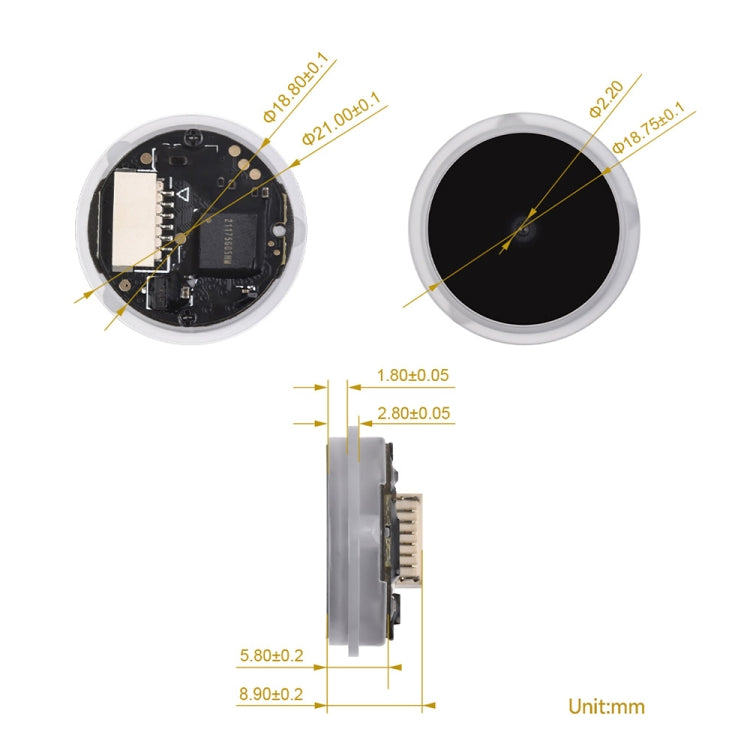

13. Product size: 21 x 21 x 8.9mm

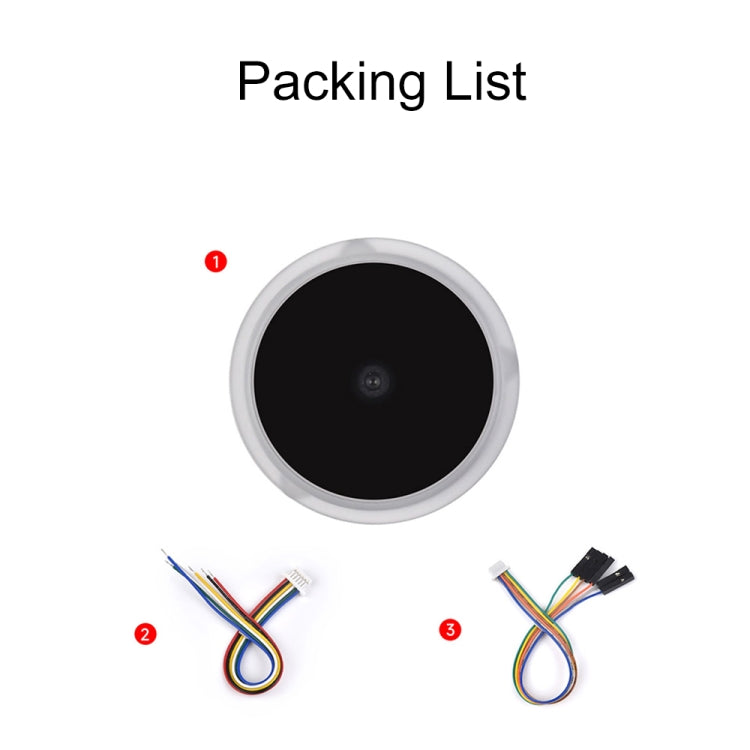

Packing list:
-Barcode scanning module (D) x 1
-6PIN cable without header x 1
-6PIN cable x 1
