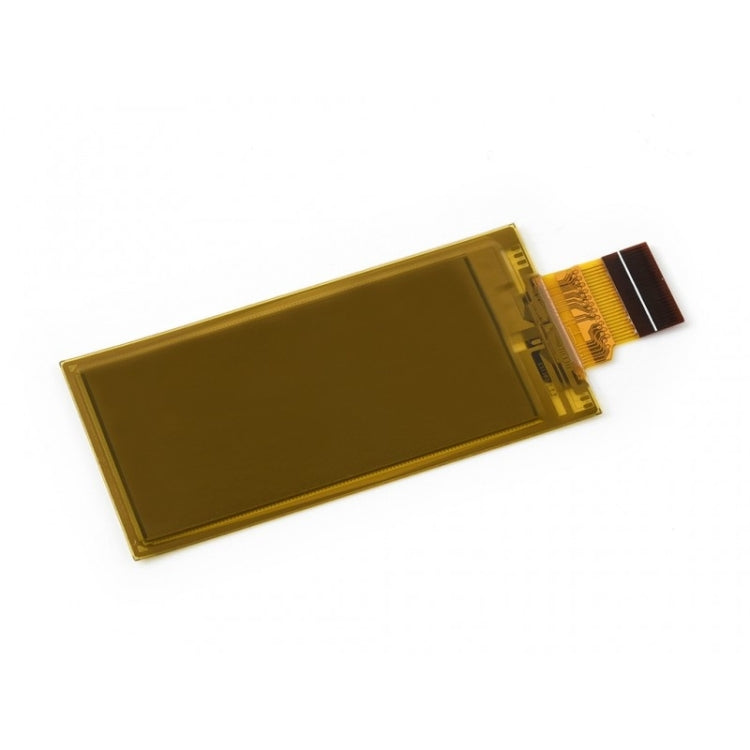

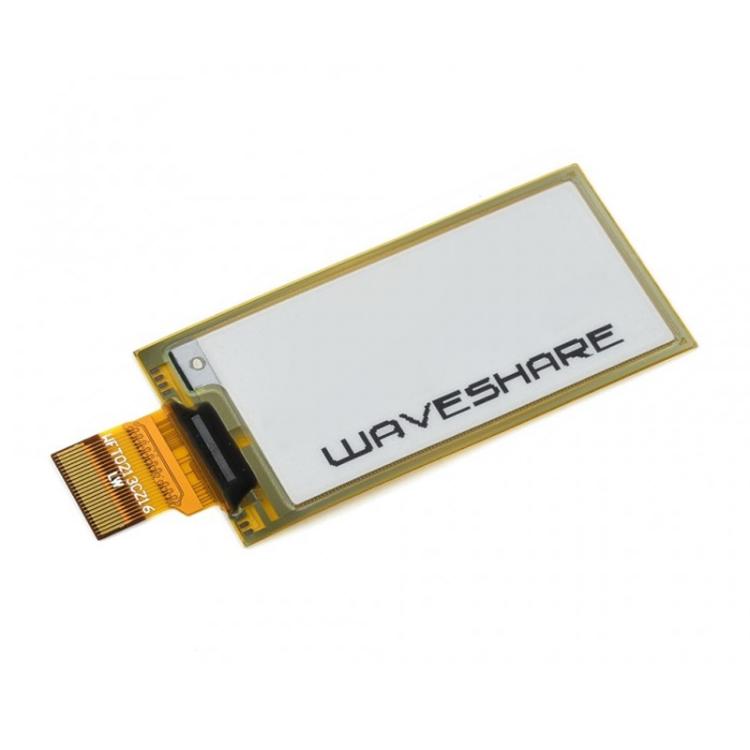

Waveshare 2.13 inch 212x104 Pixel Flexible E-Paper (D) E-Ink Raw Display Panel

Name: Waveshare 2.13 inch 212x104 Pixel Flexible E-Paper (D) E-Ink Raw Display Panel
Brand: Waveshare
SKU: ZY17632754
Price: 399.00 ZAR
Availability: InStock

R 399.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

212x104, 2.13inch flexible E-Ink raw display, black/white dual-color, SPI interface, without PCB

Overview
1. This is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
2. Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
3. Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.

Features
1. Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)
2. No backlight, keeps displaying last content for a long time even when power down
3. Ultra low power consumption, basically power is only required for refreshing
4. Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications
1. Operating voltage: 3.3V
2. Interface: 3-wire SPI, 4-wire SPI
3. Outline dimension: 59.2mm x 29.2mm x 0.3mm
4. Display size: 23.71mm x 48.55mm
5. Dot pitch: 0.229 x 0.228
6. Resolution: 212 x 104
7. Display color: Black, white
8. Grey level: 2
9. Full refresh time: 2s
10. Refresh power: 26.4mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
