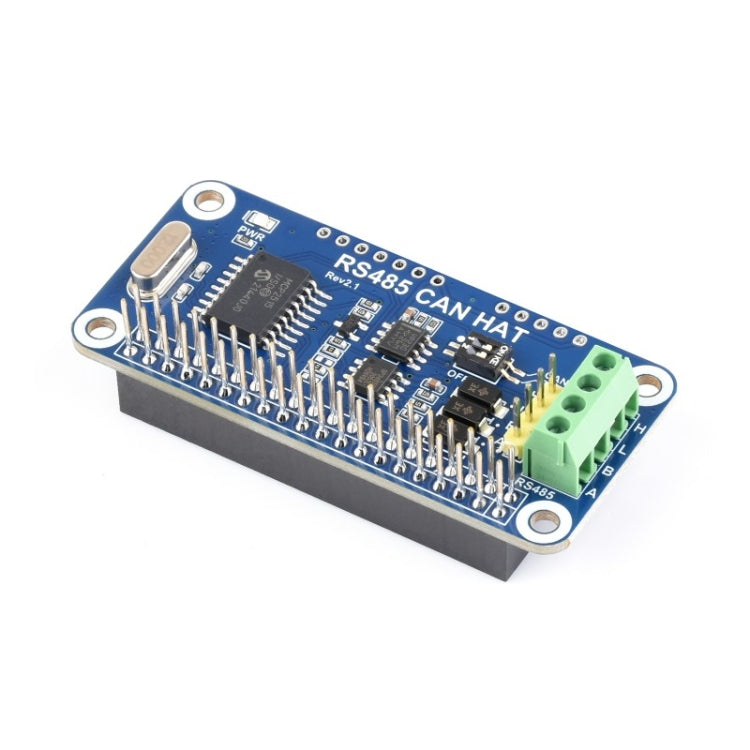

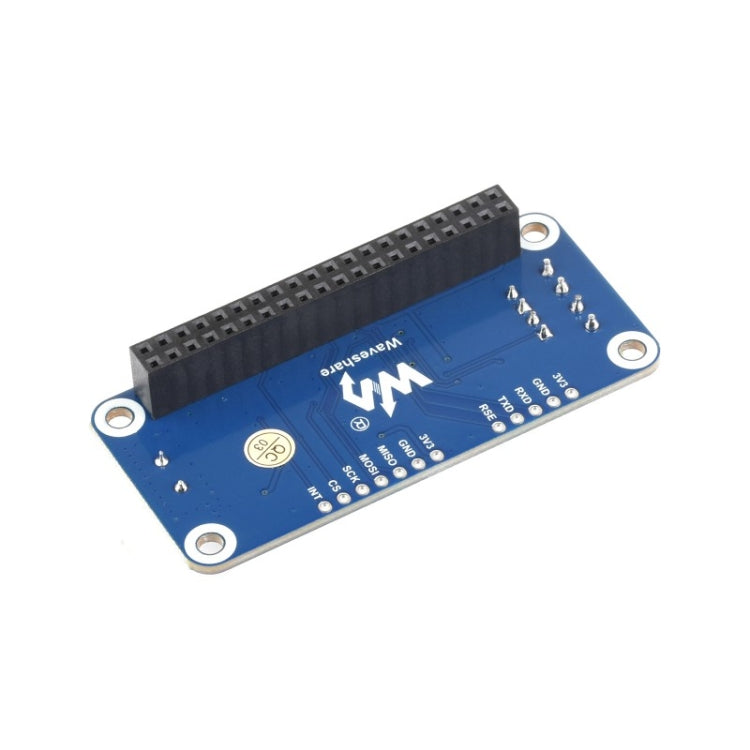

Waveshare 14882 For Raspberry Pi RS485 SPI CAN HAT Bus Module

Waveshare 14882 For Raspberry Pi RS485 SPI CAN HAT Bus Module

Regular price R 459.00
Regular price Sale price R 459.00
Sale Sold out
FREE DELIVERY on all orders.

In stock

Quantity

🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.

Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time: 5 - 10 working days.

Overseas Warehouse: Shipping from China.

Duties and Taxes

  • For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
  • For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.

For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

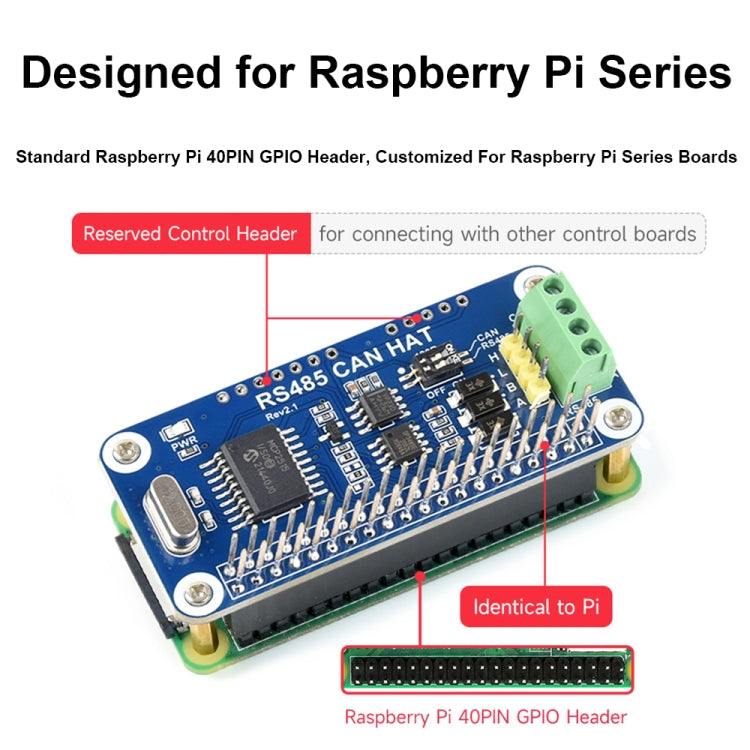

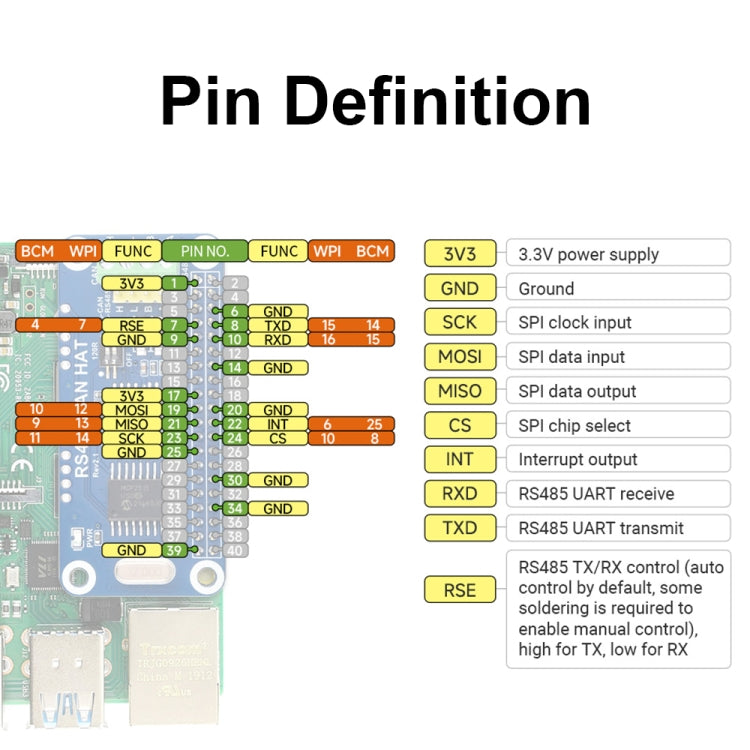

1. Based on Raspberry Pi 40 PIN GPIO interface, suitable for Raspberry Pi series motherboards

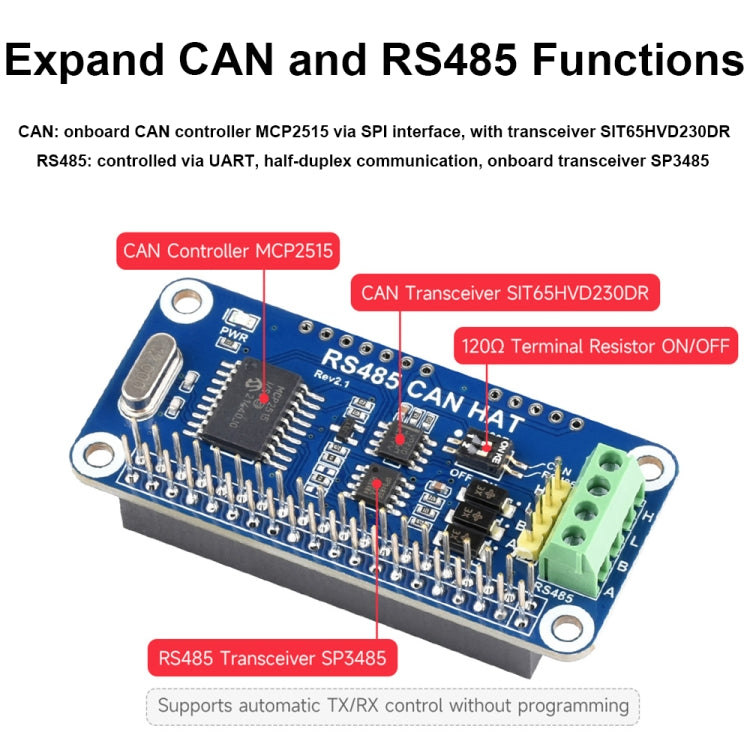

2. With CAN function, using SPI interface CAN controller MCP2515, with transceiver SIT65HVD230DR
3. With RS485 function, using UART control, half-duplex communication, supporting automatic switching of transceiver status without program control, transceiver is SP3485
4. Onboard 120 ohm terminal resistors for RS485 and CAN interfaces, which can be enabled by setting the dip switch

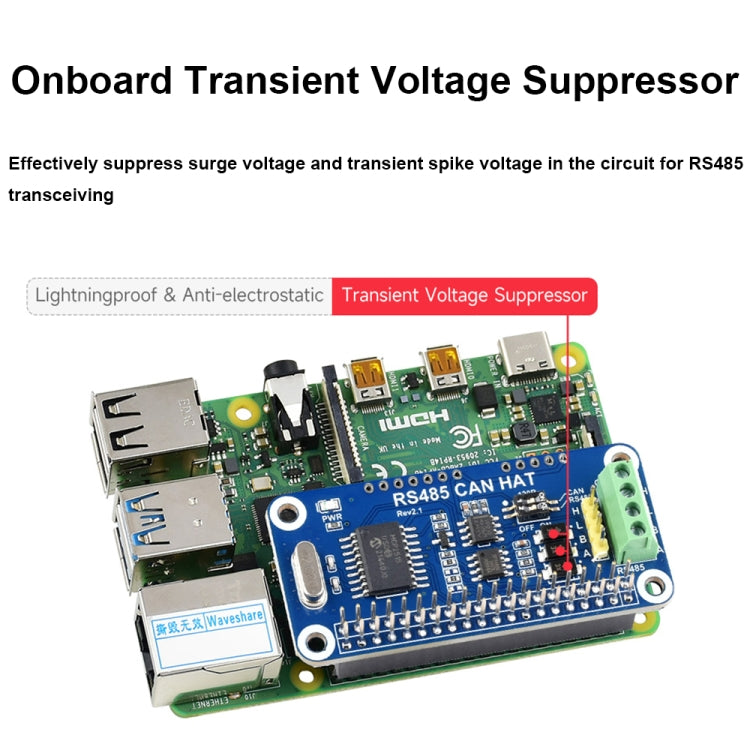

5. Onboard TVS (transient voltage suppression tube), RS485 communication can effectively suppress surge voltage and transient spike voltage in the circuit, lightning protection and anti-static

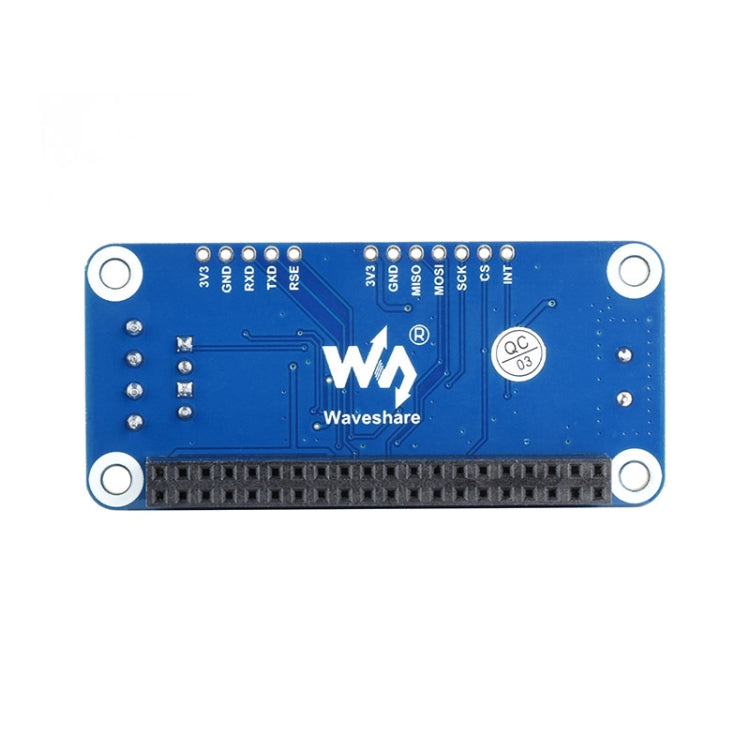

6. Reserved control interface for convenient control by other controllers
7. Working voltage: 3.3V
8. Purpose: RS485 CAN interface expansion

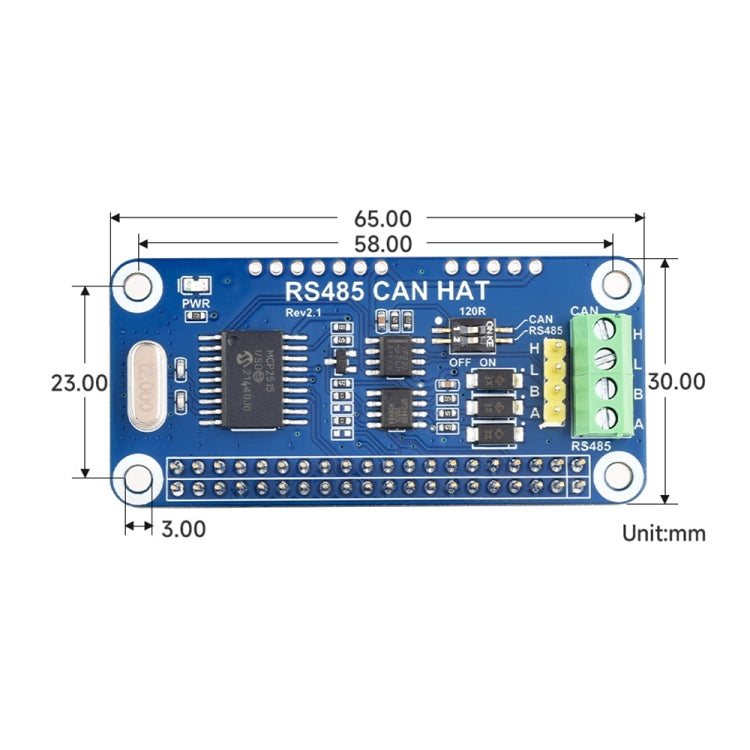

9. Product size: 65 x 30mm
10. Weight: 18g
