Description

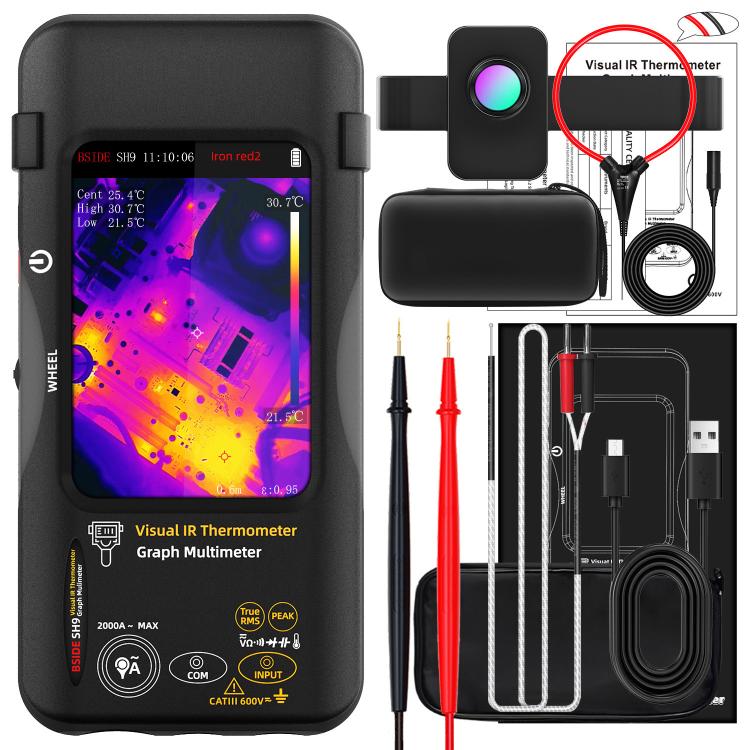

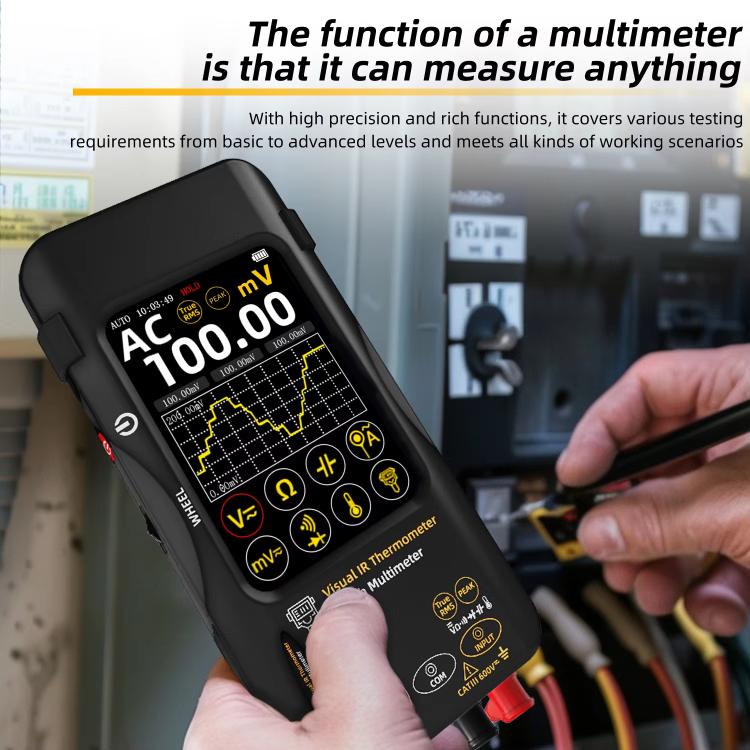

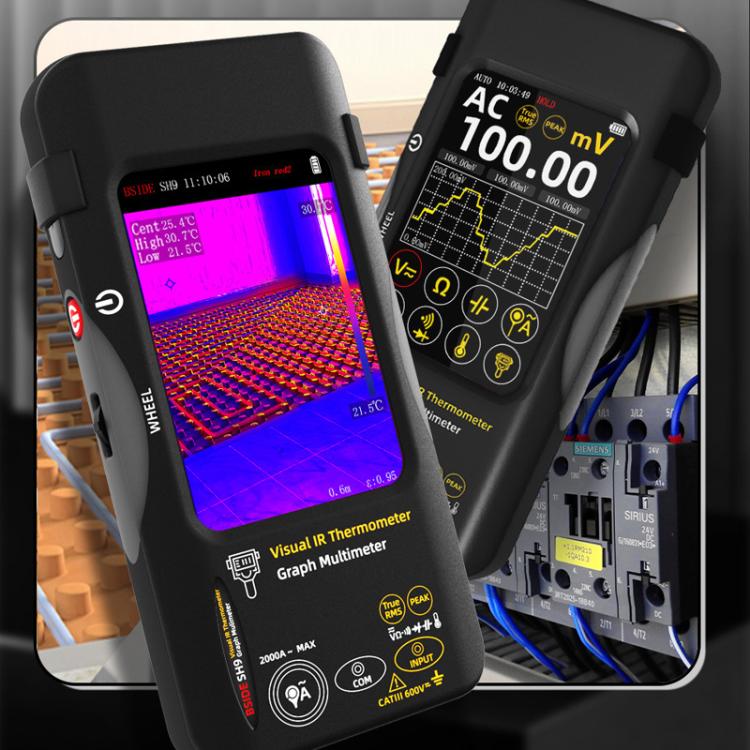

The Standard+Macro Lens+Flexible Coil BSIDE SH9 Infrared Thermal Imaging Multimeter is a multifunctional device that combines thermal imaging and multimeter capabilities. It is suitable for applications in various fields such as electrical inspections, HVAC maintenance, and building diagnostics.
- Sensor type: Vanadium oxide (VOx) microbolometer
- Response band: 8-14um
- Thermal image resolution: 320 x 428 pixels
- Noise equivalent temperature difference (NETD): ≤ 50 mK (@25°C, F 1.0)
- Field of view (FOV): 50.0° (H) x 37.2° (V) 163.6° (D)
- Spatial resolution (IFOV): 8.89 mrad
- Frame rate: 25Hz

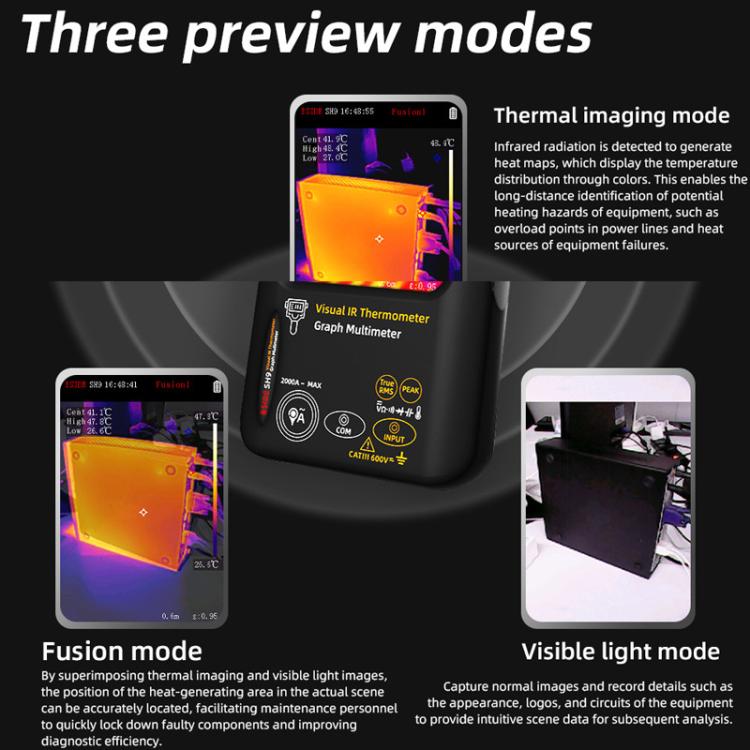

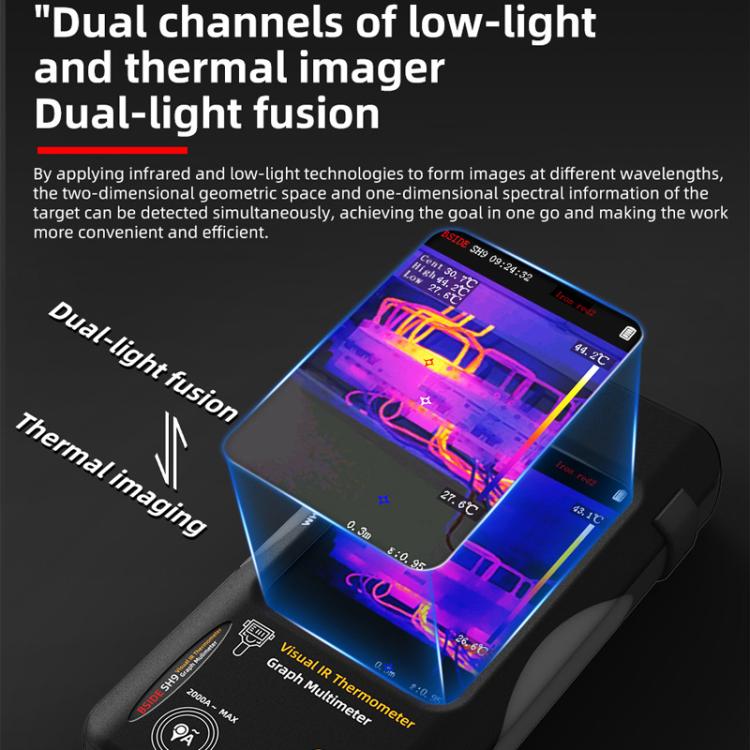

- Preview modes: thermal imaging, fusion, visible light
- Temperature measurement focal length: 0.3m - 3m adjustable
- Temperature measurement range: -20°C to 550°C
- Temperature measurement accuracy: ±2°C or ±2% of reading (whichever is larger)
- Temperature measurement unit: Celsius, Fahrenheit, Kelvin
- Temperature measurement resolution: 0.1°C

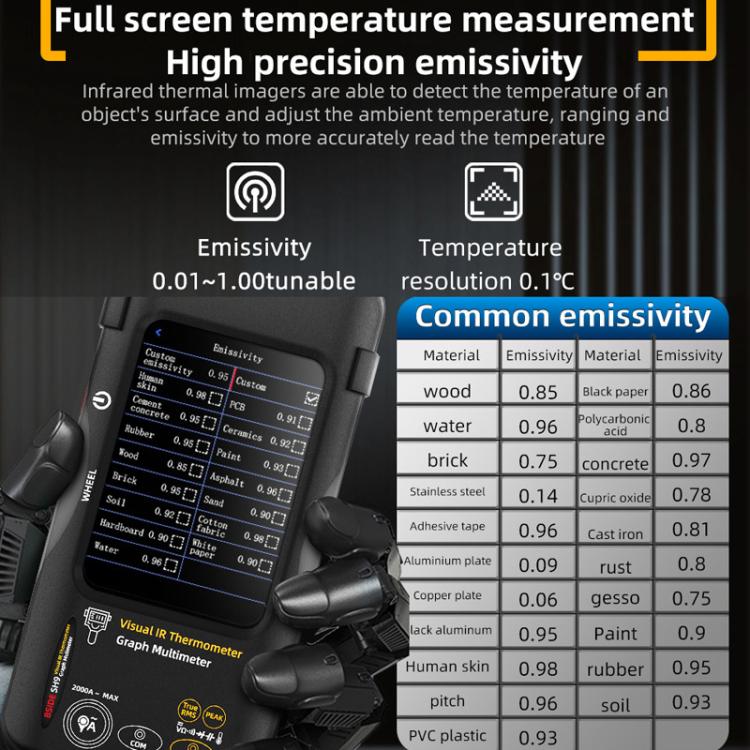

- Emissivity: 0.01 - 1.00 adjustable

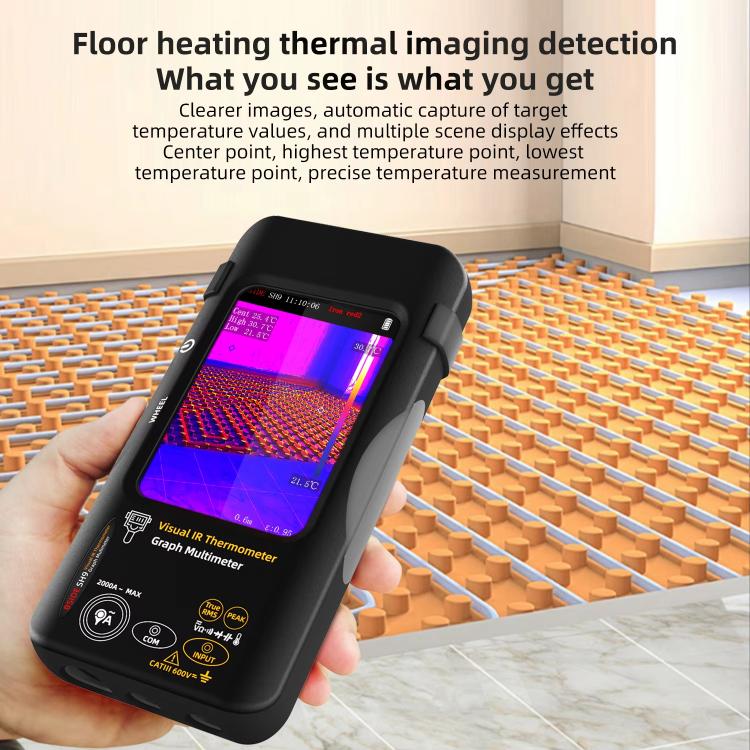

- Temperature measurement display: center point temperature measurement, high and low temperature tracking
- Temperature alarm: screen font color alarm

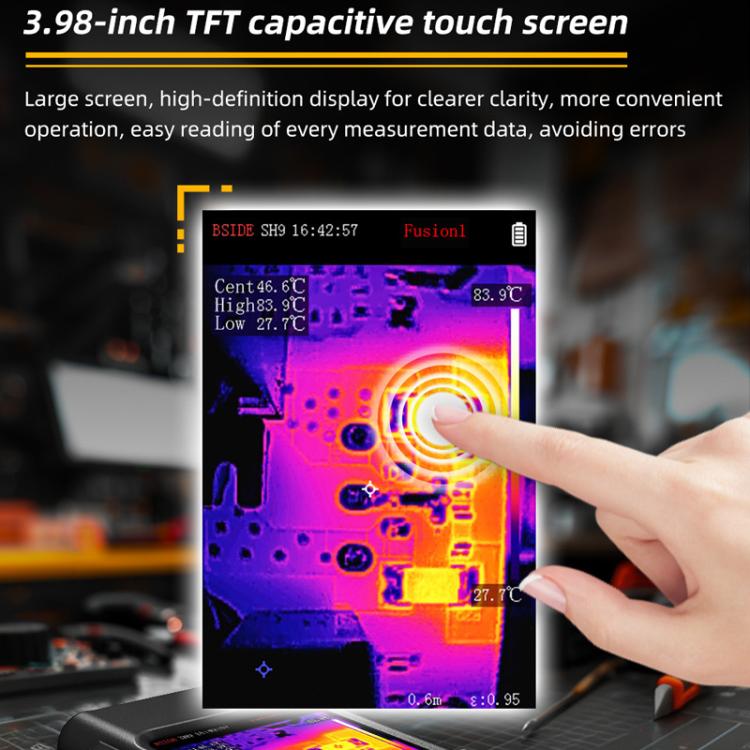

- Display: 3.98 inch TFT capacitive touch screen
- Display resolution: 320 x 480
- Color palette: multiple options including Iron Red, Black Hot, Fusion, Rainbow

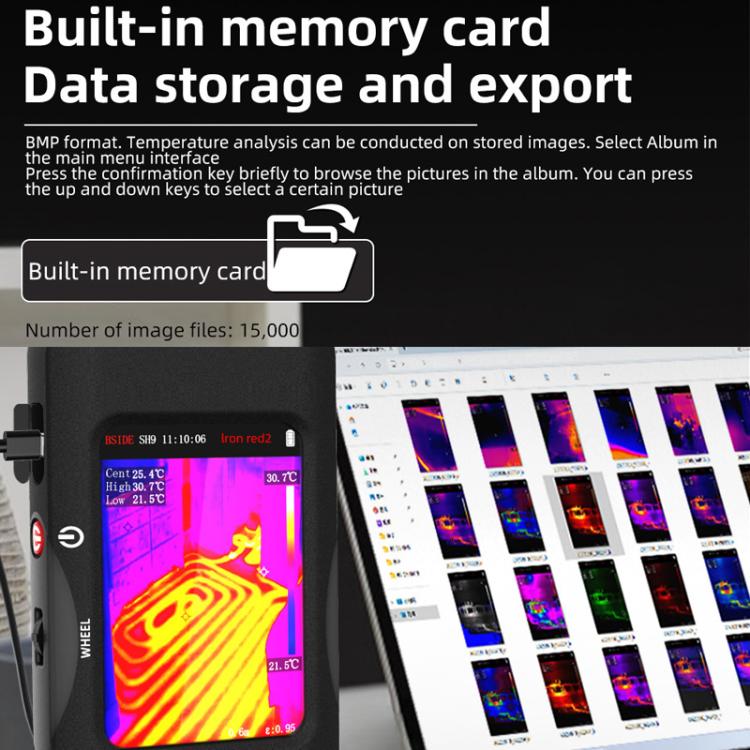

- Image storage: built-in memory card
- Number of image files: 15,000
- Image format: BMP
- Shock/Vibration: GB/T2423.5-2019, GB/T2423.10-2008
- Electromagnetic Compatibility (EMC): GBIT17799.2, GB17799.3-2012
- Focusing mode: Focus-free

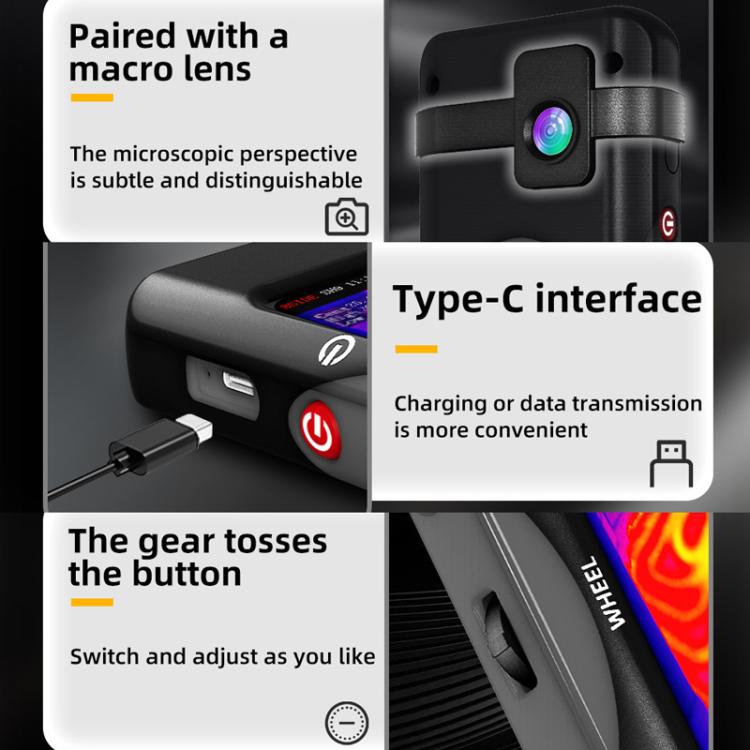

- Hardware interface: Type-C
- Battery type: Rechargeable lithium battery (3.7V/2500mAh)
- Battery working time: > 5 hours @ 25°C
- Charging time: < 3 hours @ 25°C
- Boot speed: ~3 seconds
- Automatic shutdown: options for 10, 20, 30, 40, 50, 60 minutes, or off
- Working temperature: -20°C to 50°C
- Storage temperature: -40°C to 70°C
- Storage humidity: 25%-40% RH (non-condensing)
- Operating humidity: < 85% RH (non-condensing)

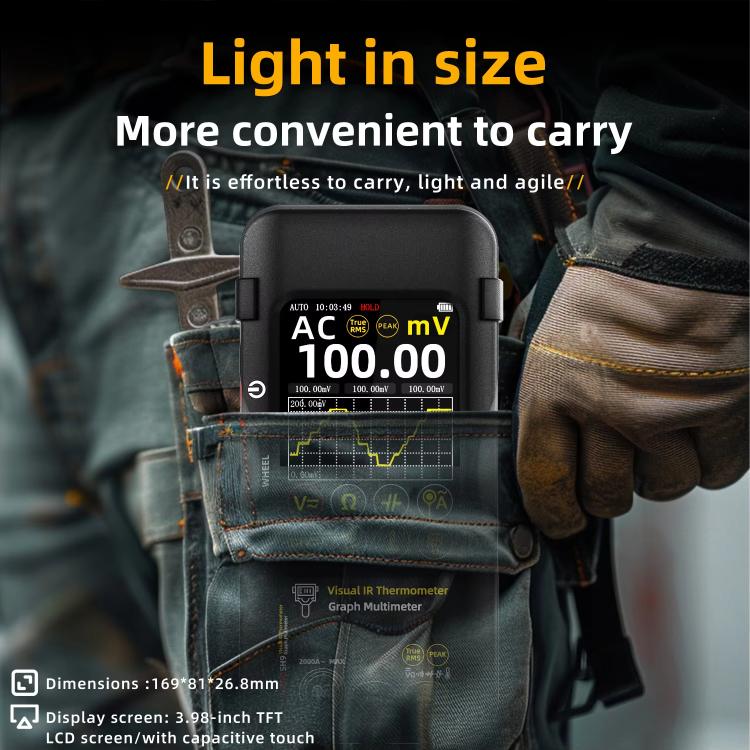

- Dimensions: 16.9 x 8.1 x 2.68 cm
- Weight: 274.3 g

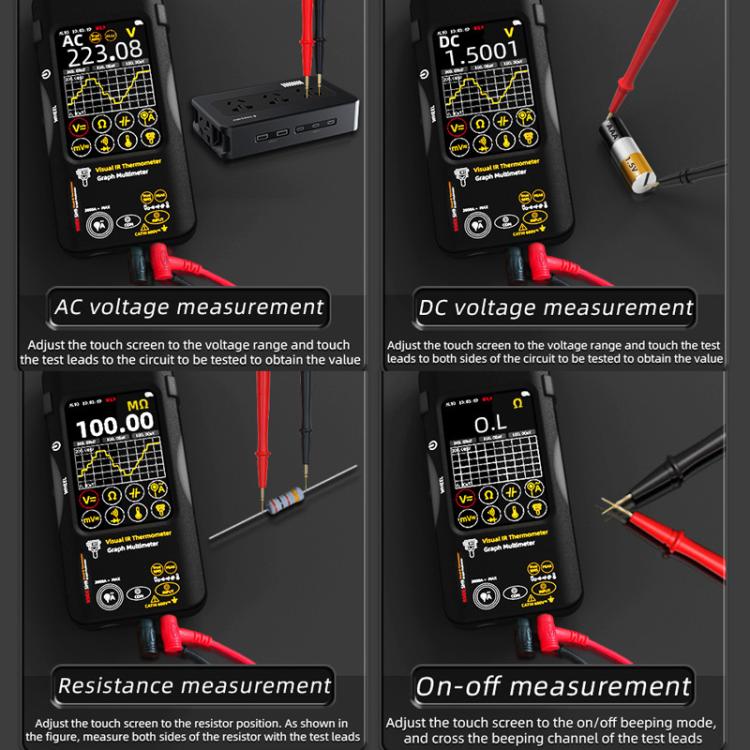

- DC voltage range/resolution: 2.0000V/0.0001V to 1000V/0.1V
- AC voltage range/resolution: 2.0000V/0.0001V to 750V/0.1V
- DC/AC voltage (mV) range/resolution: 20.000mV/0.001mV to 200.00mV/0.01mV
- Resistance range/resolution: 200.00Ω/0.01Ω to 200.00MΩ/0.01MΩ
- Capacitance range/resolution: 999.99nF/0.01nF to 99.999mF/0.001mF

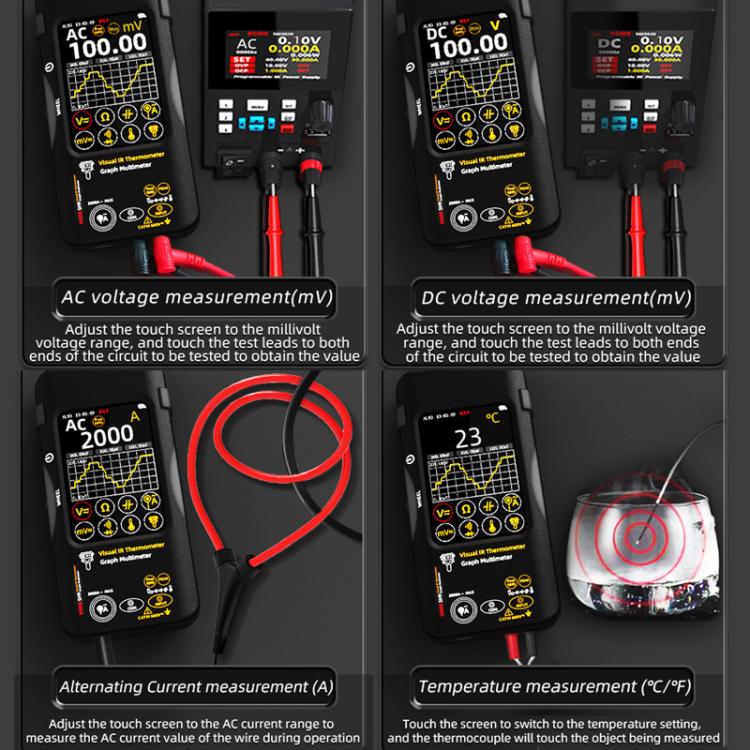

- Flexible current clamp range/resolution: 200.0A/0.1A
- AC current range/resolution: 2000A/1A
- Temperature range/resolution: -20°C to 1300°C/1°C, -4°F to 2372°F/1°F
- Functions: diode, on/off

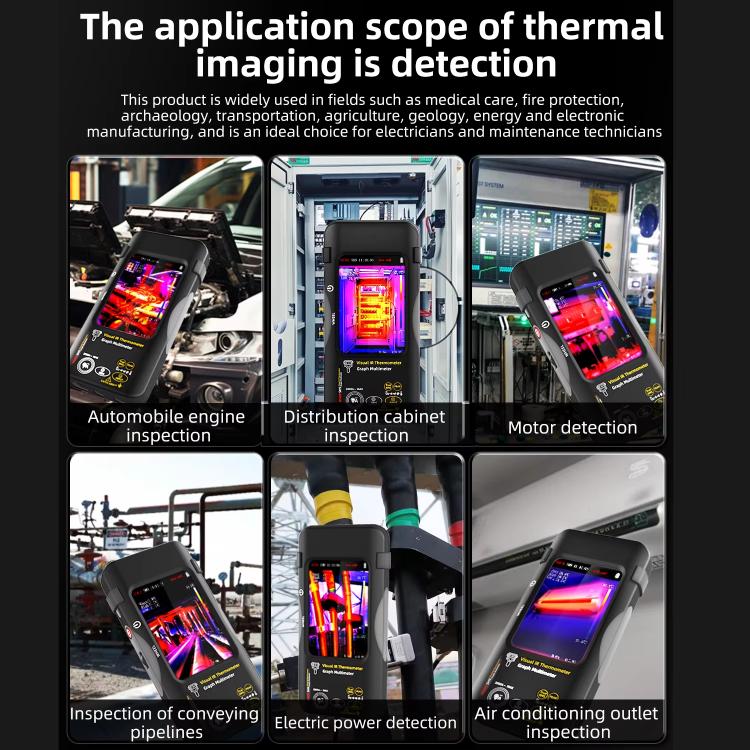

- Applications: suitable for medical, firefighting, archaeology, transportation, agriculture, geology, energy, electronic manufacturing
- Standard
