Description

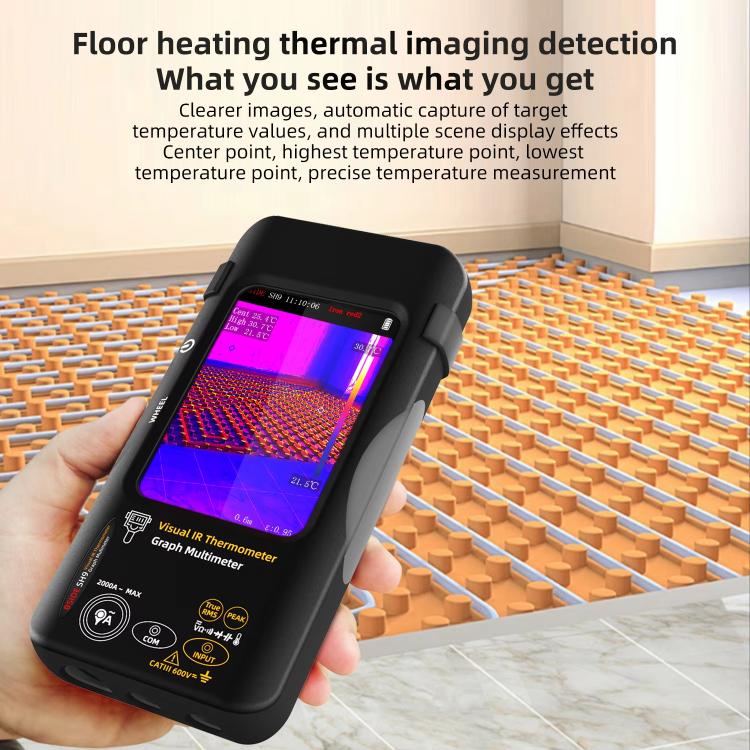

The Standard+Macro Lens BSIDE SH9 is a thermal imaging multimeter designed for electrical inspections and diagnostics. It provides accurate temperature measurements and visualizations for various applications, including electrical floor heating inspections.
- Sensor type: Vanadium oxide (VOx) microbolometer
- Response band: 8-14um
- Thermal image resolution: 320 x 428 pixels
- Noise equivalent temperature difference (NETD): ≤ 50 mK (@25°C, F 1.0)
- Field of view (FOV): 50.0° (H) x 37.2° (V) 163.6° (D)
- Spatial resolution (IFOV): 8.89 mrad
- Frame rate: 25Hz
- Temperature measurement focal length: 0.3m - 3m adjustable
- Temperature measurement range: -20°C to 550°C
- Temperature measurement accuracy: ±2°C or ±2% of reading (whichever is larger)
- Temperature measurement unit: Celsius, Fahrenheit, Kelvin
- Temperature measurement resolution: 0.1°C

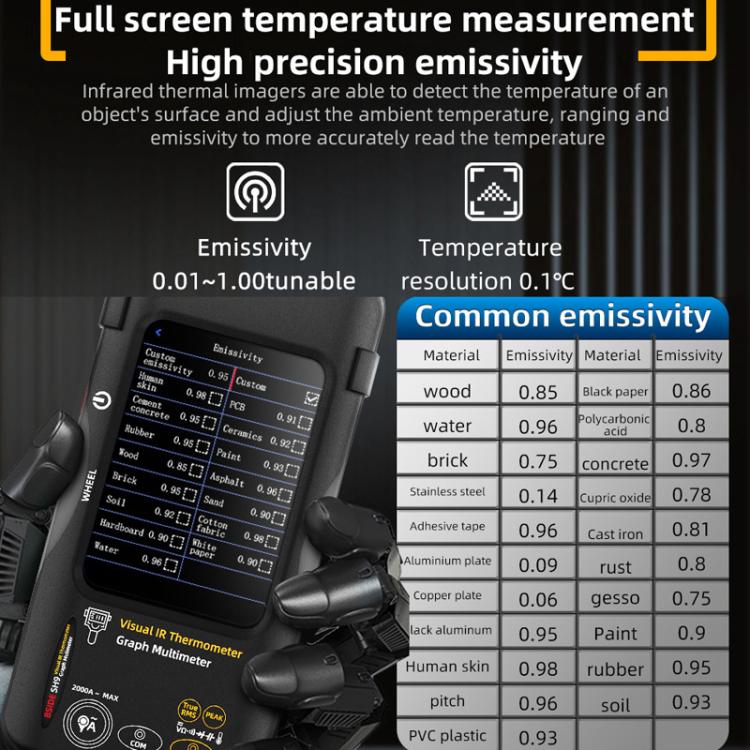

- Emissivity: 0.01 - 1.00 adjustable
- Temperature measurement display: center point temperature measurement, high and low temperature tracking
- Temperature alarm: screen font color alarm

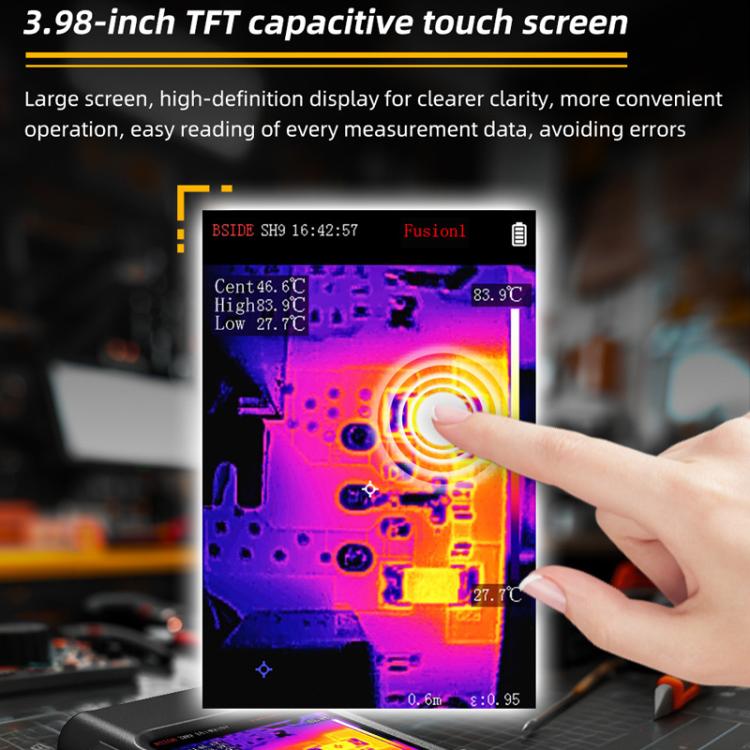

- Display: 3.98 inch TFT capacitive touch screen
- Display resolution: 320 x 480
- Color palette options: Iron Red 2, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue

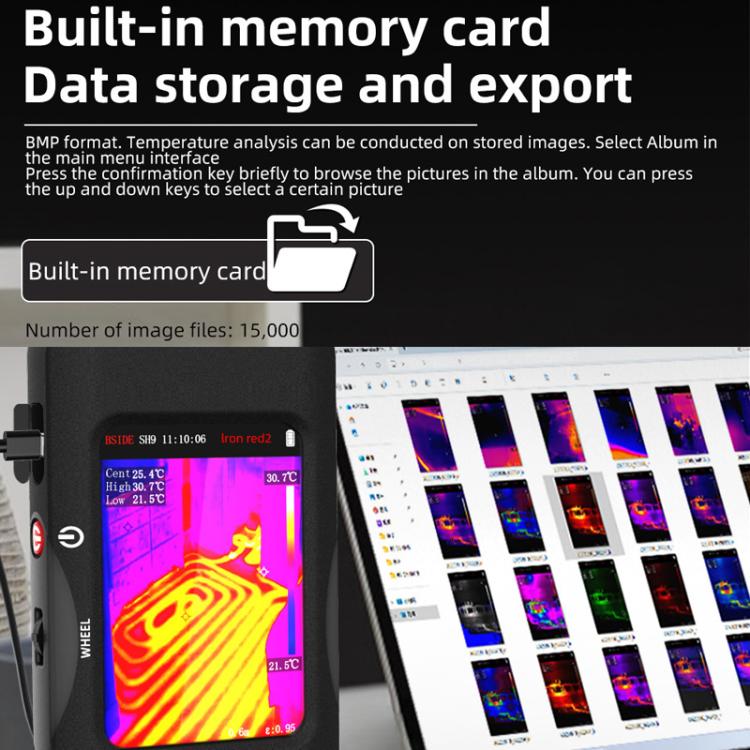

- Image storage: built-in memory card
- Number of image files: 15,000
- Image format: BMP
- Shock/Vibration compliance: GB/T2423.5-2019, GB/T2423.10-2008
- Electromagnetic Compatibility (EMC): GBIT17799.2, GB17799.3-2012
- Focusing mode: Focus-free

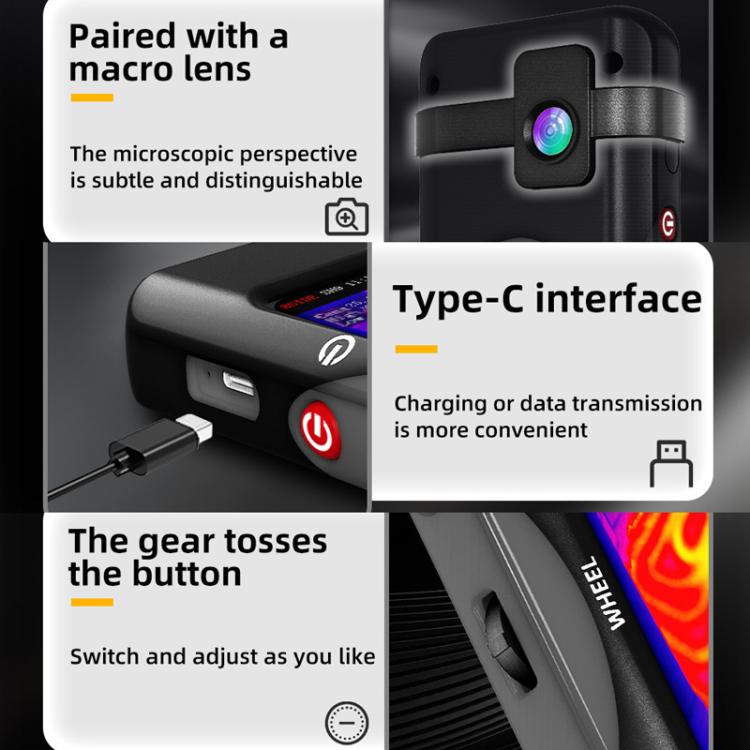

- Hardware interface: Type-C
- Battery type: Rechargeable lithium battery (3.7V/2500mAh)
- Battery working time: > 5 hours @ 25°C
- Charging time: < 3 hours @ 25°C
- Boot speed: ~ 3 seconds
- Automatic shutdown: off (default), optional 10-60 minutes
- Working temperature: -20°C to 50°C
- Storage temperature: -40°C to 70°C
- Storage humidity: 25%-40% RH (non-condensing)
- Operating humidity: < 85% RH (non-condensing)

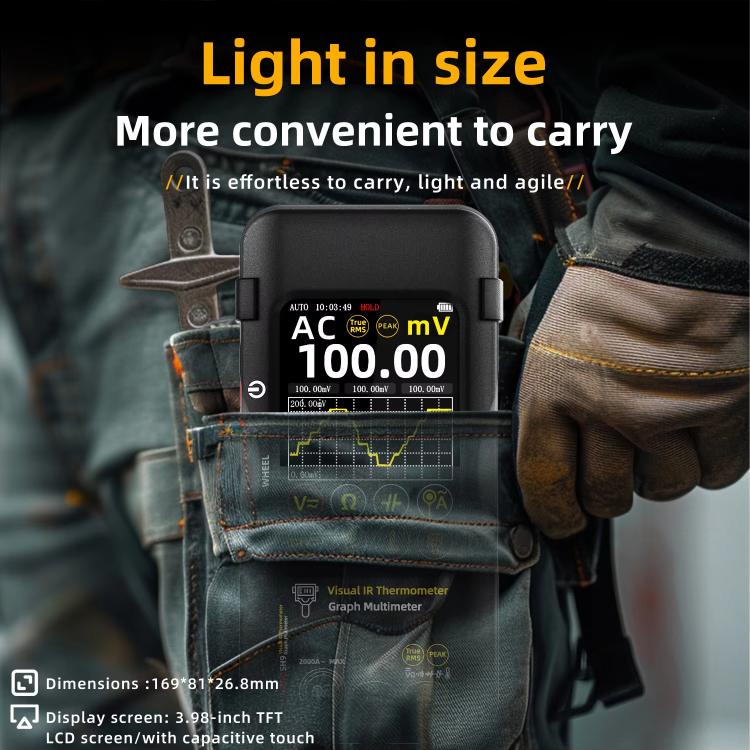

- Dimensions: 16.9 x 8.1 x 2.68 cm
- Weight: 274.3 g

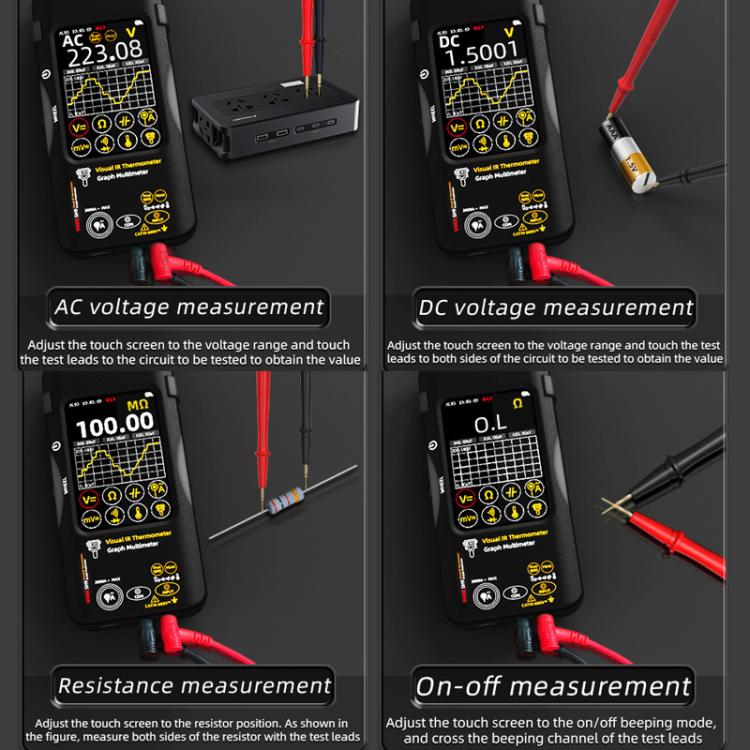

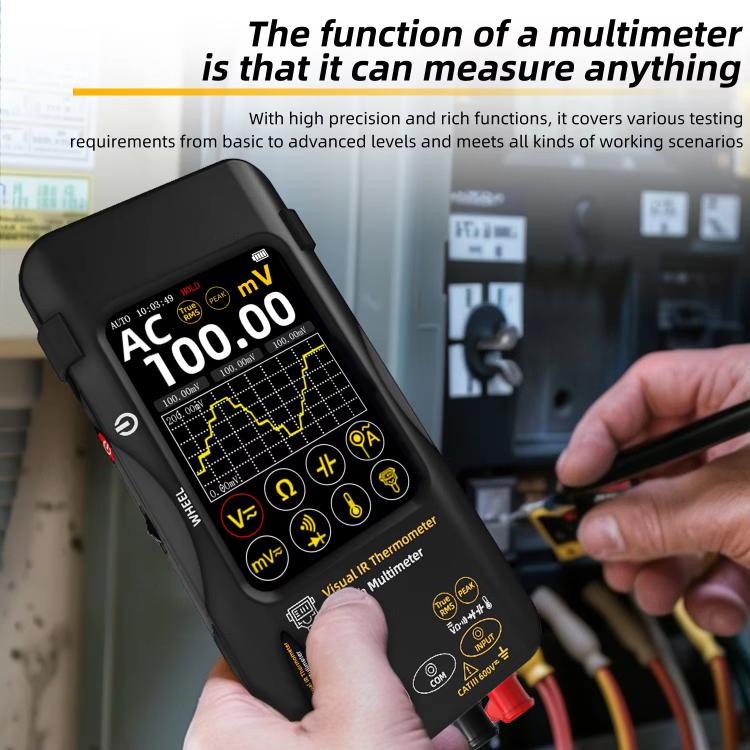

- DC voltage range/resolution: 2.0000V/0.0001V, 20.000V/0.001V, 200.00V/0.01V, 1000V/0.1V
- AC voltage range/resolution: 2.0000V/0.0001V, 20.000V/0.001V, 200.00V/0.01V, 750V/0.1V

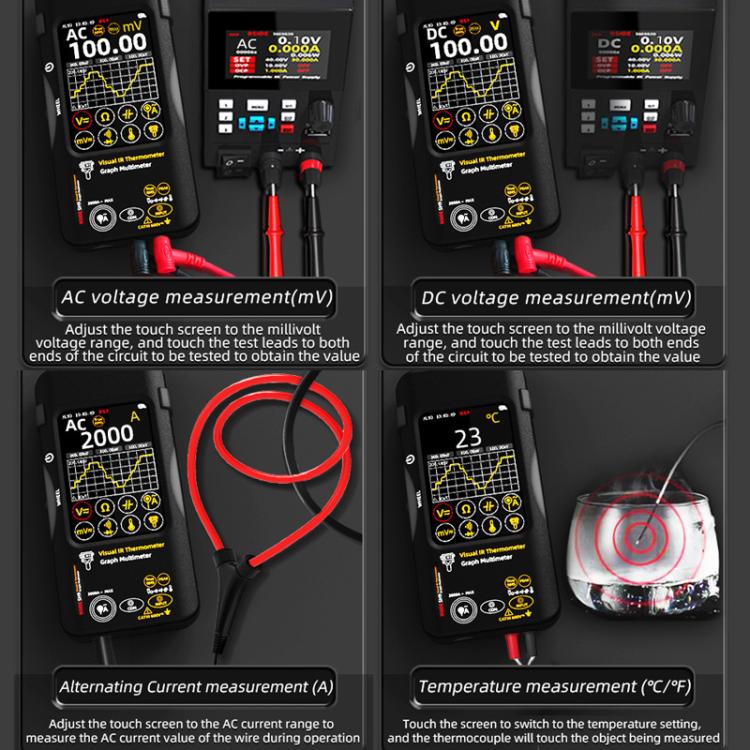

- DC/AC voltage (mV) range/resolution: 20.000mV/0.001mV, 200.00mV/0.01mV
- Resistance range/resolution: 200.00Ω/0.01Ω, 2.0000kΩ/0.0001kΩ, 20.000kΩ/0.001kΩ, 200.00kΩ/0.01kΩ, 2.0000MΩ/0.0001MΩ, 20.000MΩ/0.001MΩ, 200.00MΩ/0.01MΩ
- Capacitance range/resolution: 999.99nF/0.01nF, 9.999μF/0.001μF, 999.
