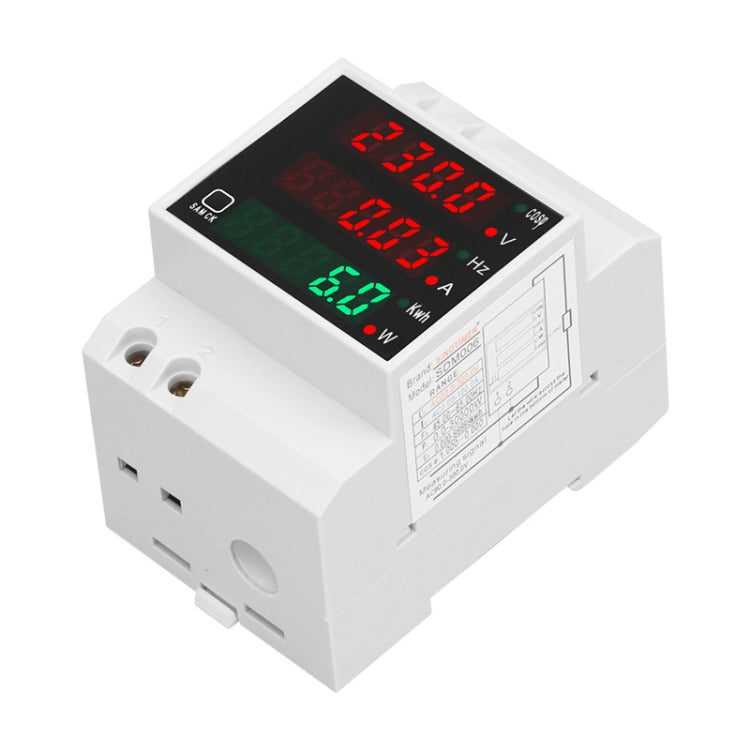

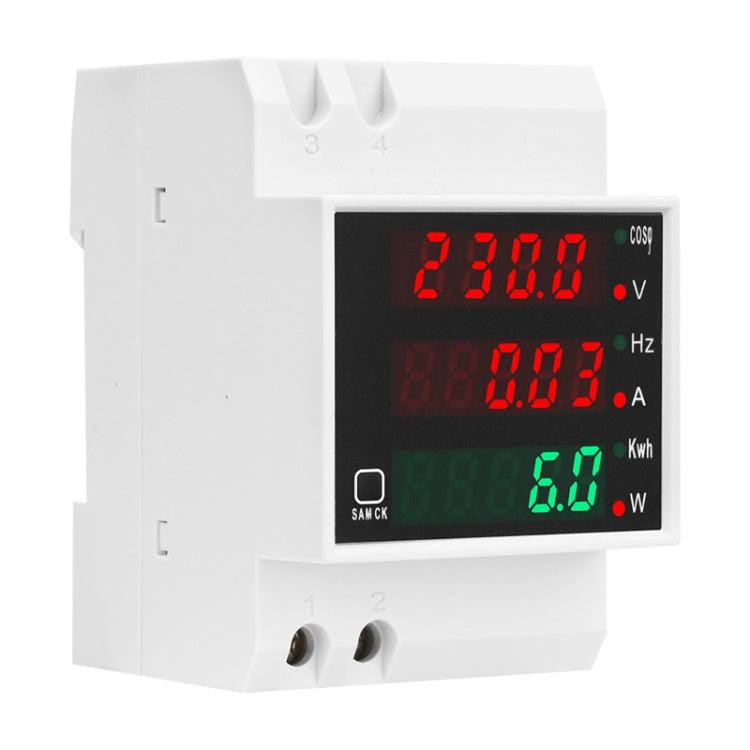

SINOTIMER SDM006 Din Rail AC Voltage Current Frequency Power Electricity Multi-Function Detection Meter
SINOTIMER SDM006 Din Rail AC Voltage Current Frequency Power Electricity Multi-Function Detection Meter
🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Measurement accuracy: 1 percent +/-1 word
2. Measuring range:
- Voltage: AC80-300V
- Current: AC0.00-100.0A
- Frequency: 45-65Hz
- Power: 0-30000W
- Electricity power: 0.000-99999kwh
- Power factor: 1.000-0.000

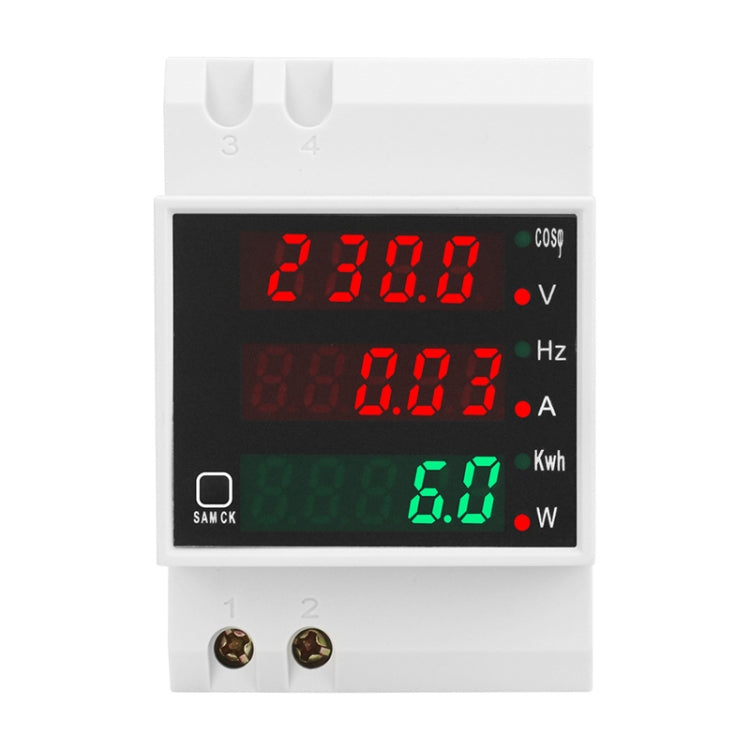

3. Display the measured AC voltage, current, frequency, power, electrical energy, etc
4. Adopt flame retardant PC material and precision chip, safe to use

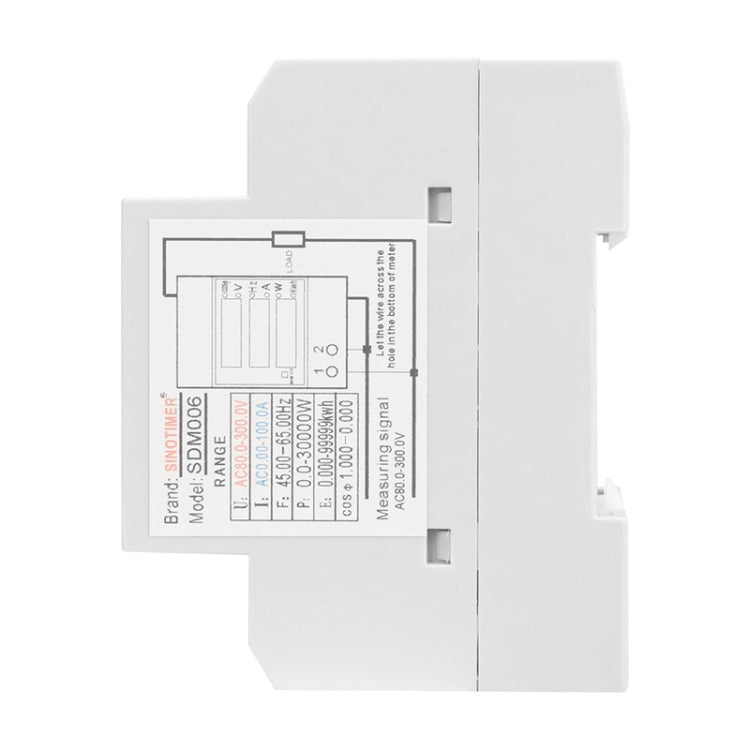

5. If the current is less than 100A, just pass the wire through the hole on the right side of the instrument to get the AC current
6. When the meter shows energy, press and hold the SAM CK button for five seconds, the meter will be reset
7. Automatically records the amount of power and accumulated power at the time of power failure: the instrument will continue to collect data when reconnected to the measurement power source
8. Size: 54 x 80 x 64mm
