POE-4812FG 48V To 12V Isolated Standard POE Splitter Outdoor Monitoring Waterproof Power Supply Module

Name: POE-4812FG 48V To 12V Isolated Standard POE Splitter Outdoor Monitoring Waterproof Power Supply Module
Brand: PMC Jewellery
SKU: TBD06039942
Price: 299.00 ZAR
Availability: InStock

R 299.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

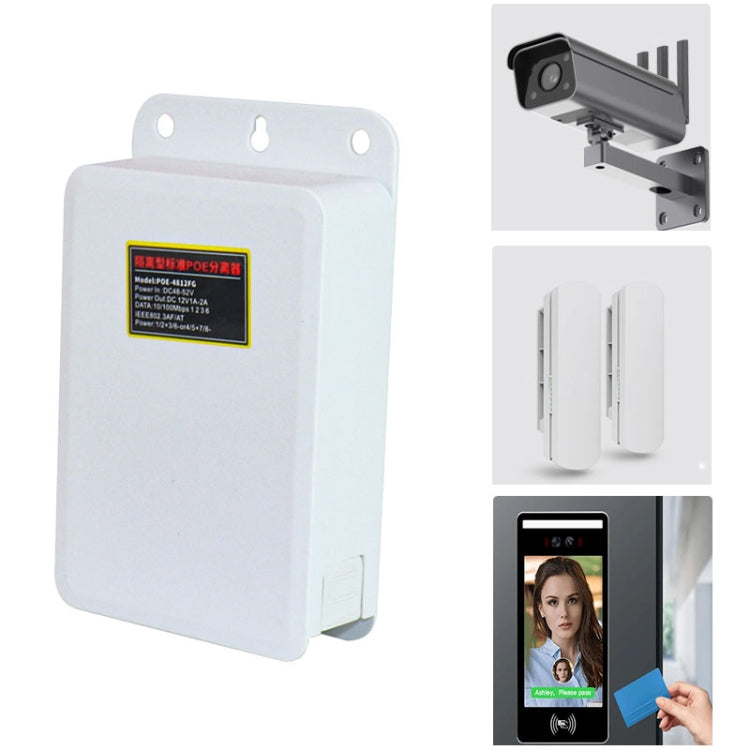

1. 48V to 12V isolated waterproof POE splitter, fast response, stable and not dropped, universal camera/bridge/access control/wireless APP, etc.

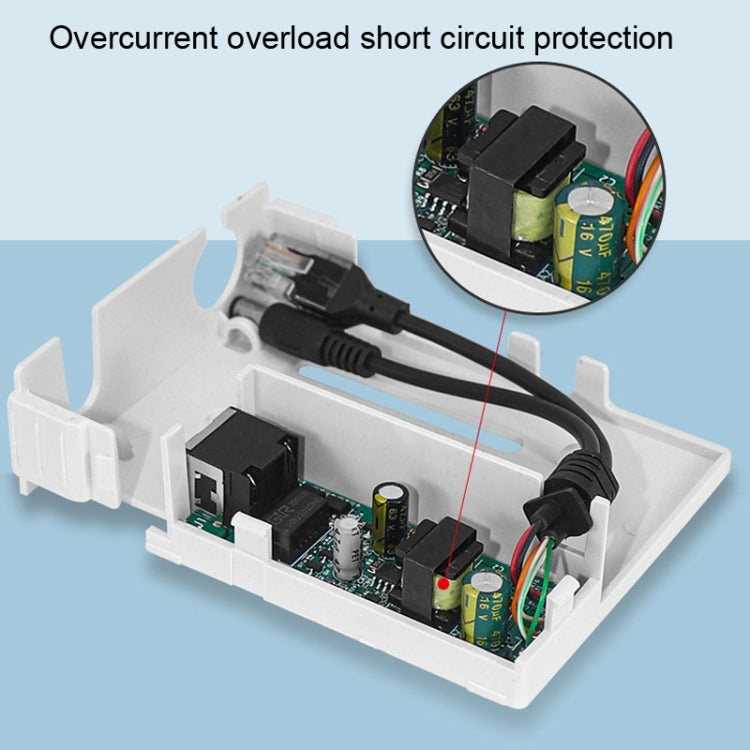

2. Over-current and overload, short-circuit protection, prevent instantaneous high-voltage current impact from burning equipment, stable power supply to ensure transmission quality

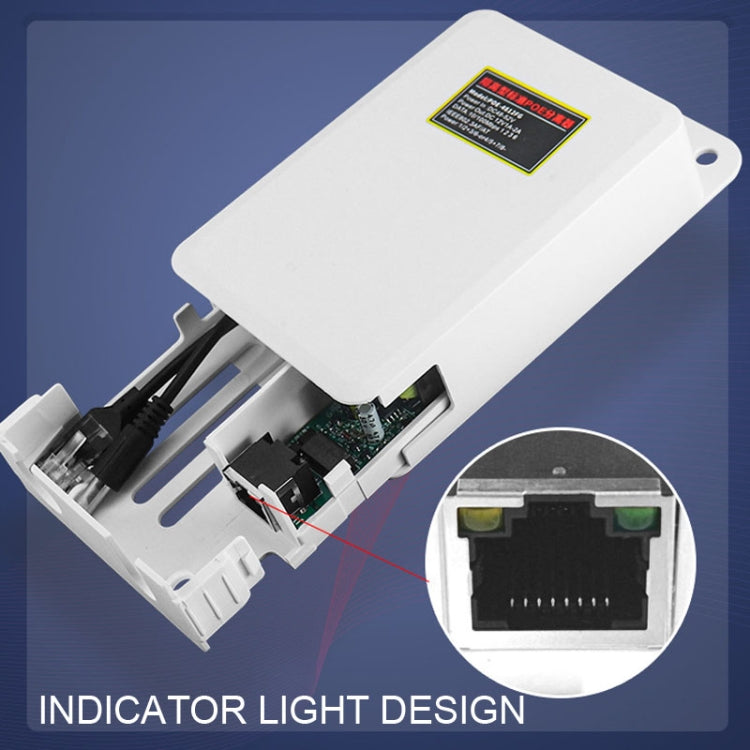

3. Indicator light design, quickly identify problems

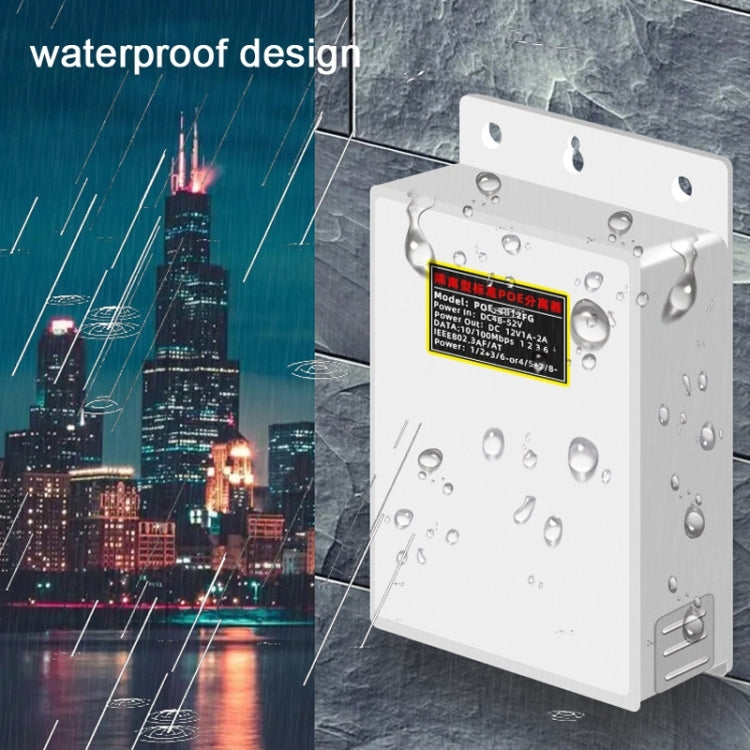

4. Waterproof design to prevent rain from damaging the internal components of the device
5. Compatible with multi-brand POE video recorders, supports IEEE802.3A Ethernet power supply standard, stable operation and good compatibility, output 12V

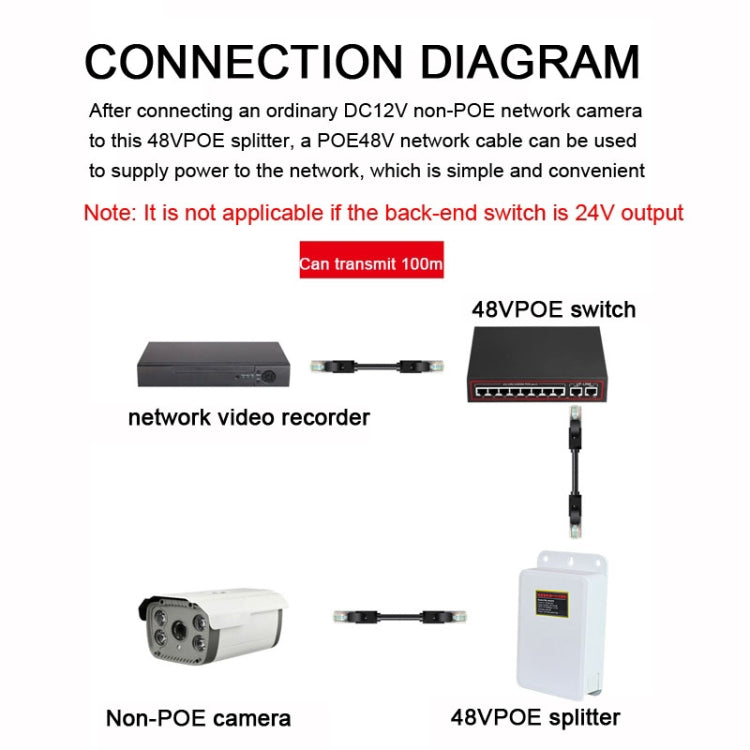

6. After connecting an ordinary DC12V non-POE network camera to this 48VPOE splitter, a single POE48V network cable can be used to supply power to the network, which is simple and convenient (note: the back-end switch is not applicable for 24V output)

Parameter:
1. POE power supply: 15.4W (IEEE802.3af)
2. Voltage input: 44-57V
3. Voltage output: DC12V
4. Output: one RJ45 output interface, one DC output interface
5. Data transfer rate: 10/100Mbps
6. Transmission distance: within 100 meters
7. Protocol standard: IEEE: 802.3110BASE-T, IEEE: 802.3U 100BASE-TX, IEEE: 802.3X Flow Control, IEEE: 802.3af Power over Ethernet
8. LED indicator: DC output power indicator
9. Working temperature: 20-60 degrees Celsius
10. Working temperature: 85%, non-condensing
11. Product size: 140 x 85 x 32mm
12. Product weight: 127g
13. Conversion efficiency: over 95%
14. Data transmission: 1236/4578 power supply
