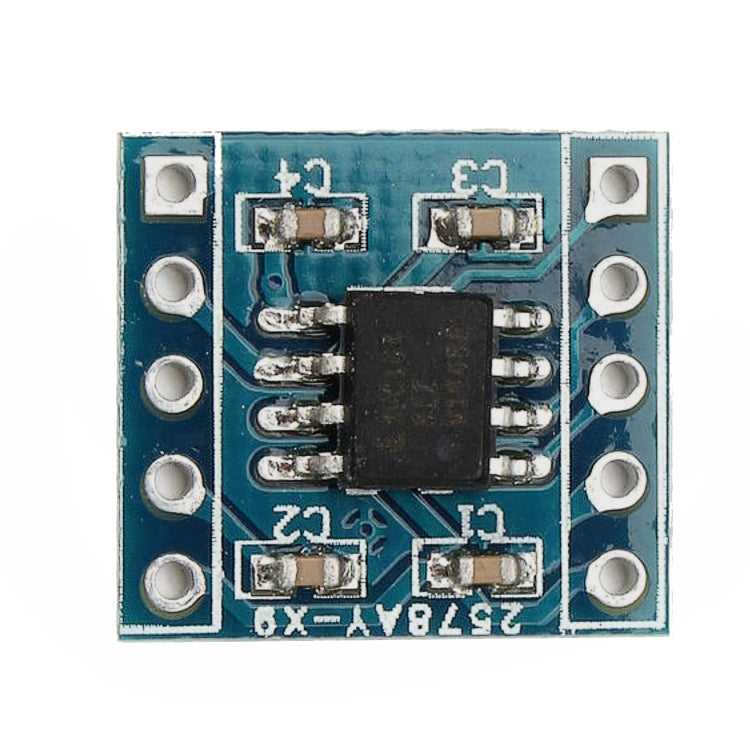

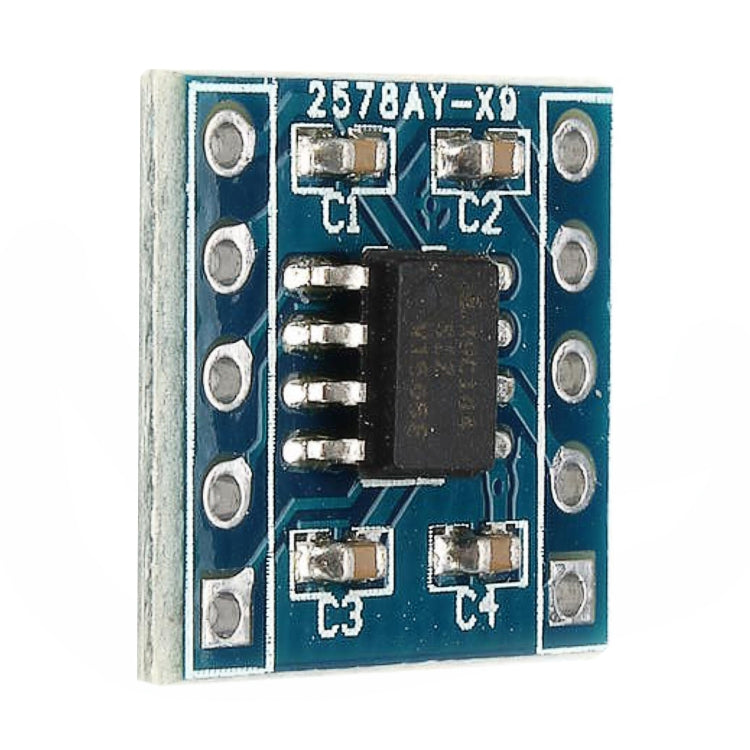

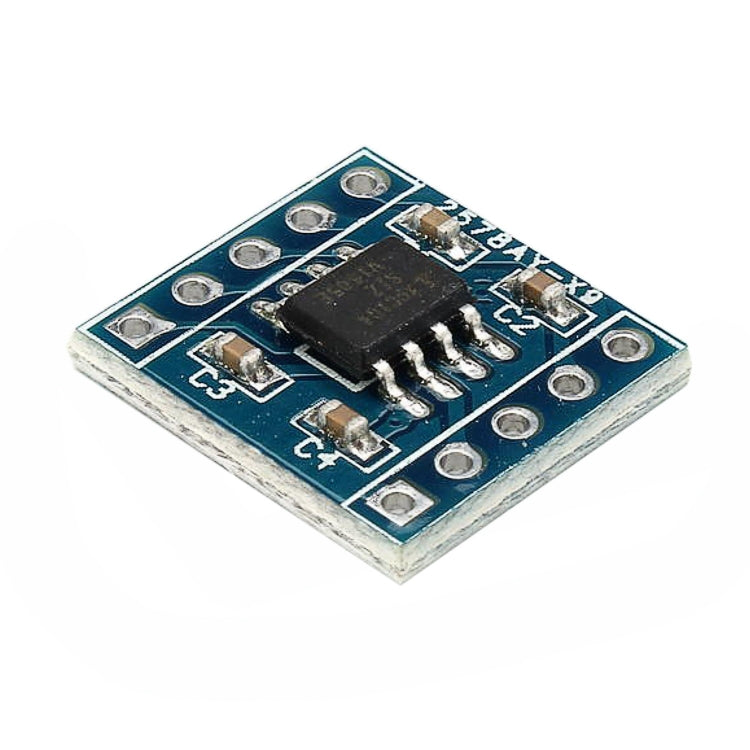

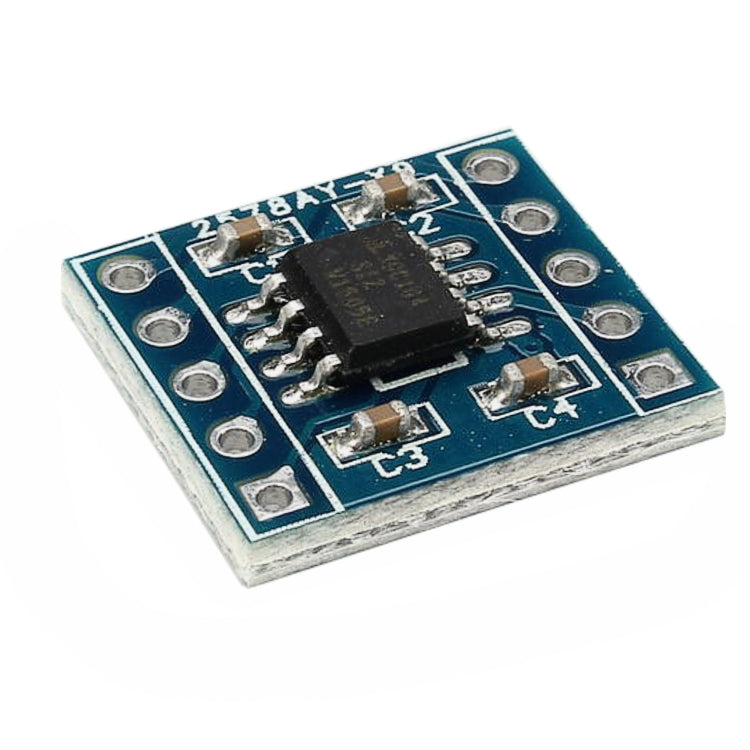

LDTR-WG0238 X9C104 Digital Potentiometer Module For Arduino (Blue)

Name: LDTR-WG0238 X9C104 Digital Potentiometer Module For Arduino (Blue)
Brand: PMC Jewellery
SKU: ZY14290225L
Price: 229.00 ZAR
Availability: InStock

R 229.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. In resistance tester circuit, it is necessary to adjust the potentiometer to balance the resistance tester. Under the influence of temperature, humidity and vibration impact, the position and specifications of the potentiometer will be changed when being used, the system index is also changed. Therefore, to make the system back to the original state it needs to be adjusted, and digital potentiometer module can just solve this problem.
2. The digital potentiometer changes in steps or incrementally, and the resistance is of linear change. For example, the resistance range of X9C104 is 40R~1000k, divided into 100 steps, so each increment is 1010R.
3. With temperature compensation function: the resistance deviation between endpoints is +/-20%;
4. Sliding end data can be kept for a long time, about 100 years;
5. With 1% high resistance resolution;
6. Working voltage: 5V;
7. Total resistance: 100kΩ;
8. End voltage: -5~5V;
9. Tap number: 100;

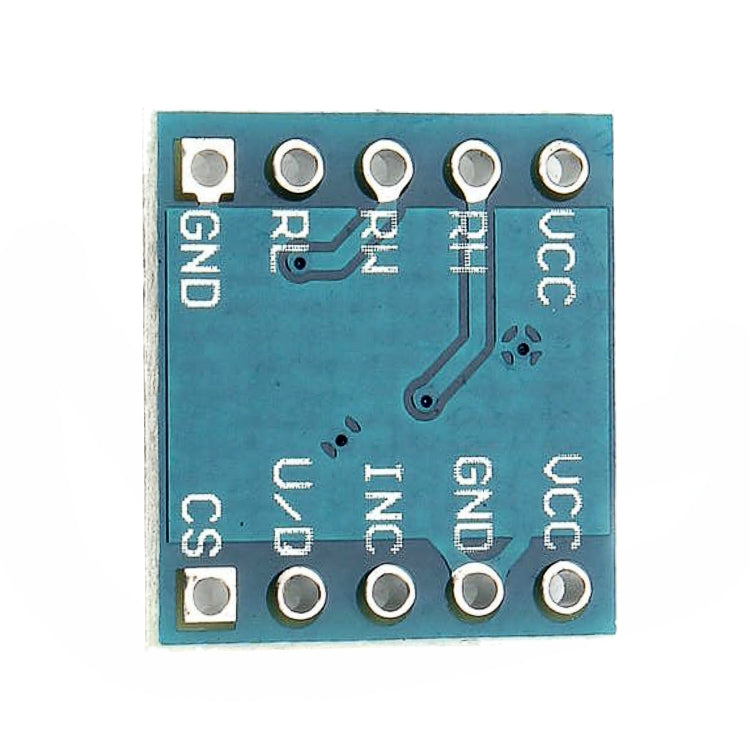

10. Interface: CS, U/D, INC;
11. Resistance increase mode: Linear change;
12. Working current: 3mA;
13. Package temperature: 8SOIC/-40~85 C;
14. Taps will automatically store data when being off.
15. Package included: 1 x X9C104 Digital Potentiometer Module
