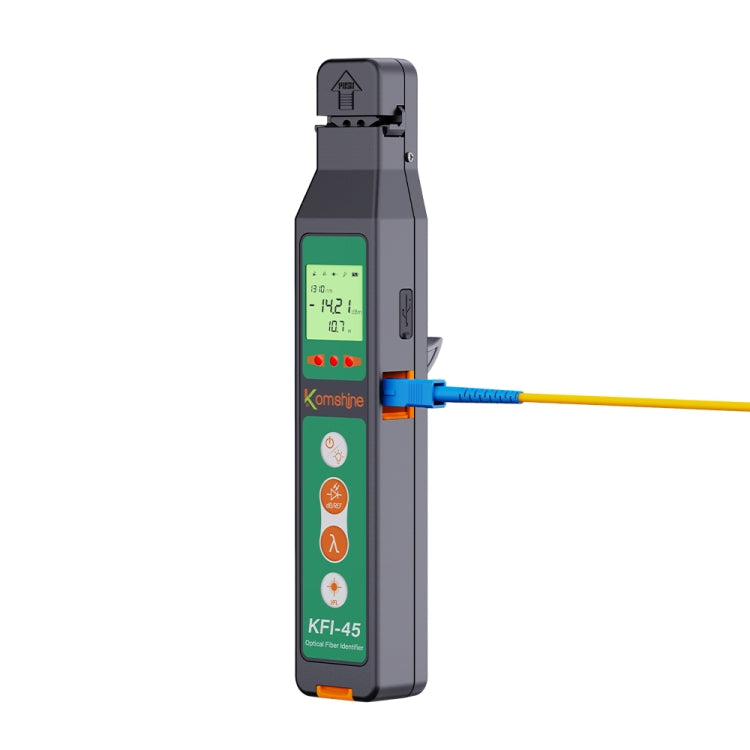

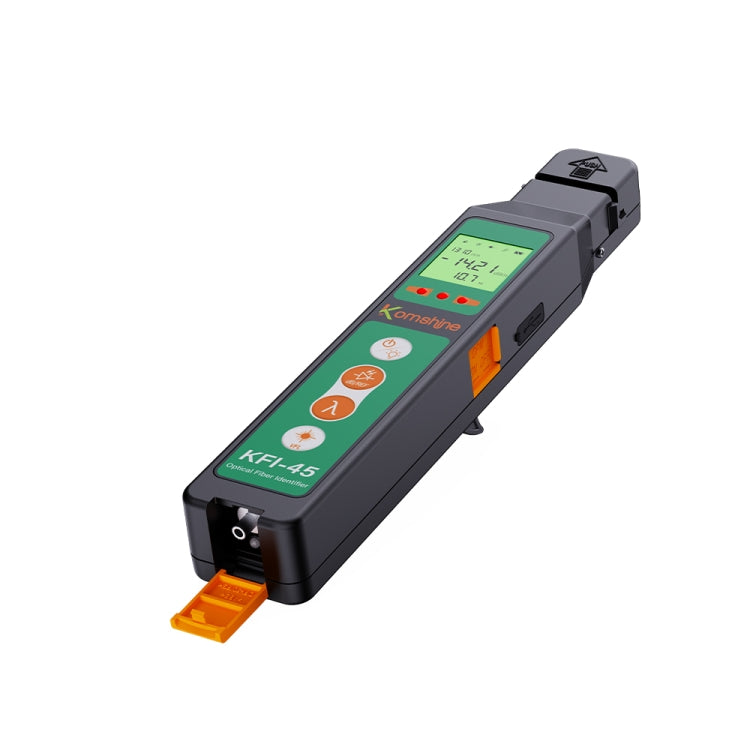

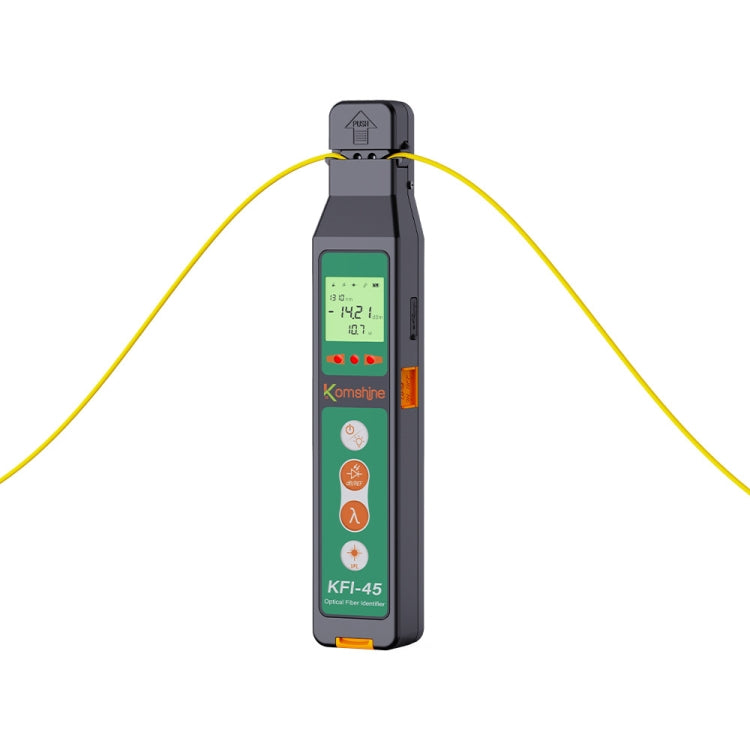

Komshine Optical Fiber Signal Direction Identification Instrument, Model: KFI-45-L
Komshine Optical Fiber Signal Direction Identification Instrument, Model: KFI-45-L
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
2. Detector type: 1mm InGaAs 2 pcs
3. Optical power reading range: -40 dBm to 10 dBm
4. Signal frequency range: 270Hz, 1kHz, 2kHz
5. Power supply type: KFI-45-L uses lithium battery for power supply, KFI-45-G uses AAx2 for power supply (not included)

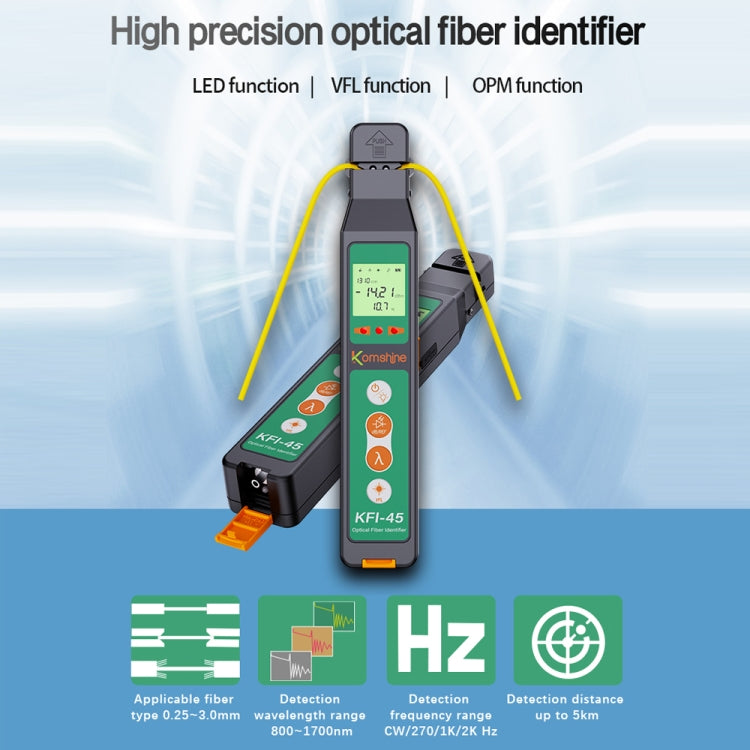

6. Applicable fiber type: 0.25~3.0mm
7. Detection wavelength range: 800-1700nm
8. Detection frequency range: CW/270/1K/2K Hz
9. Detection distance: up to 5km
10. Size: 219x45x28mm
11. Weight: 235g
VFL features:
1. Power range: 1mW
2. Test distance: 3-5km
3. Wavelength range: 650nm
4. Laser type: LD
5. LED flashlight: supported
OPM features:
1. Wavelength range (nm): 800-1700
2. Power measurement range (dBm): -70 to +6 dBm/-50 to +26dBm
3. Standard wavelength (nm): 850, 980, 1300, 1310, 1490, 1550, 1625
4. Connector: 2.5mm universal adapter + SC
5. Probe type: InGaAs

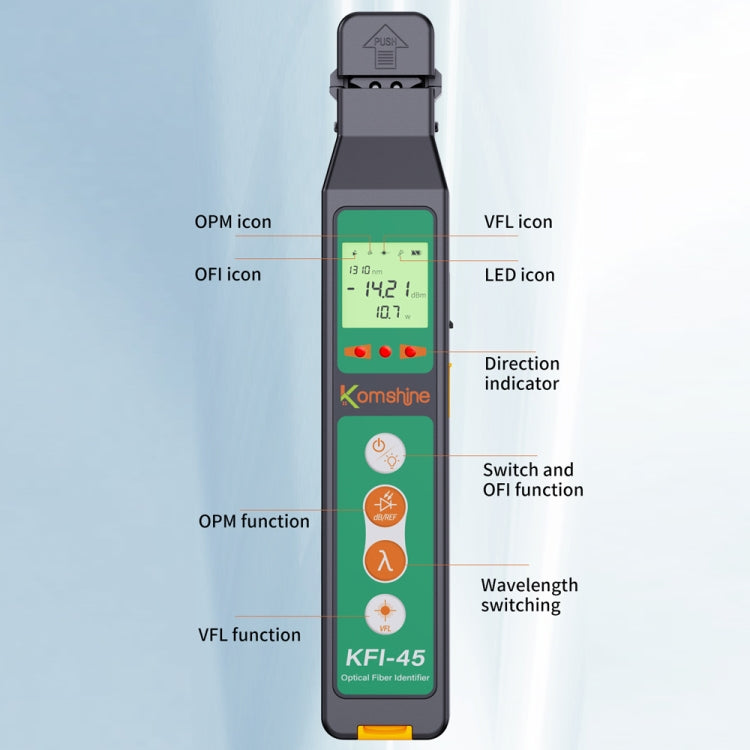

Illustrate:

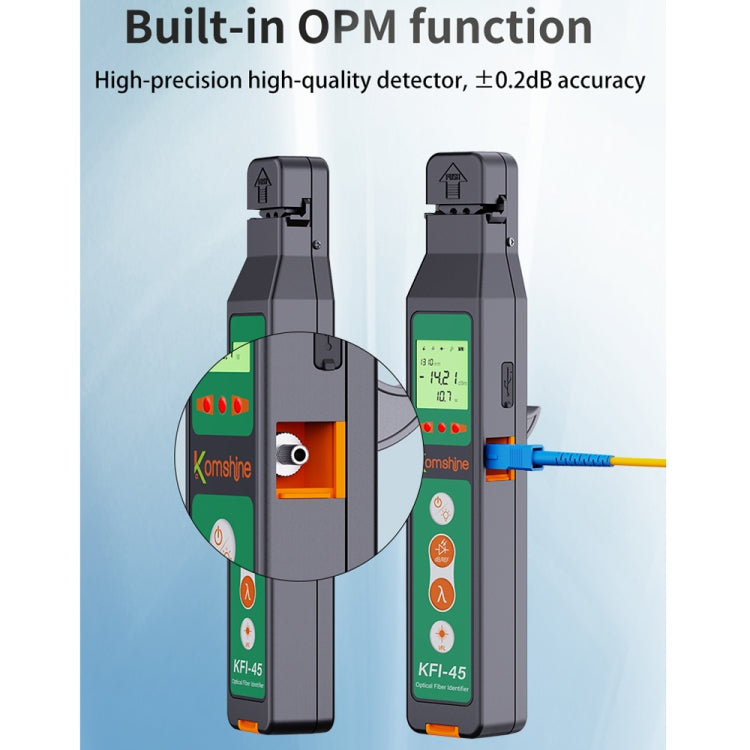

1. Comes with OPM function, high-precision high-quality detector, 0.2dB accuracy

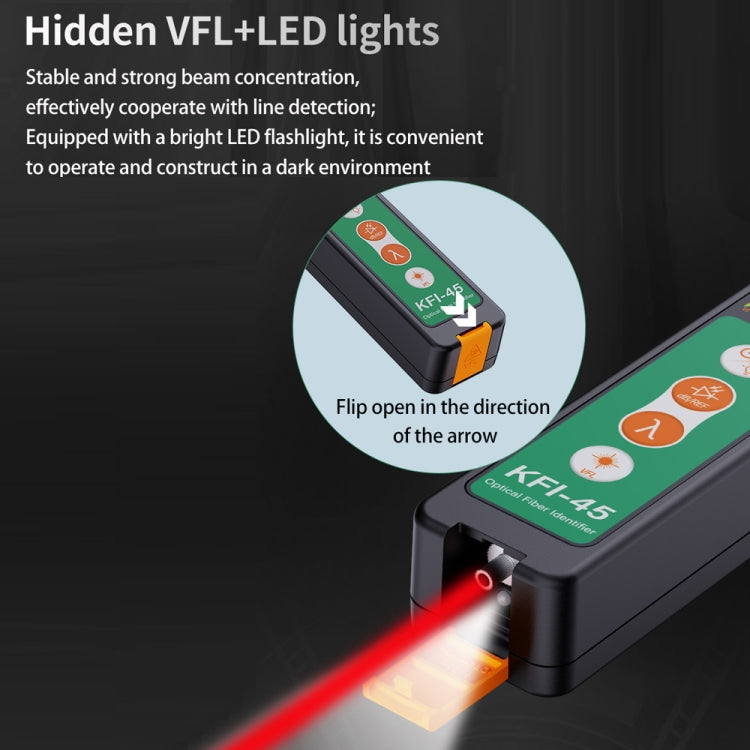

2. Hidden VFL+LED light, stable and powerful beam concentration, effectively cooperates with line detection, equipped with high-brightness LED flashlight, easy to operate in dark environment

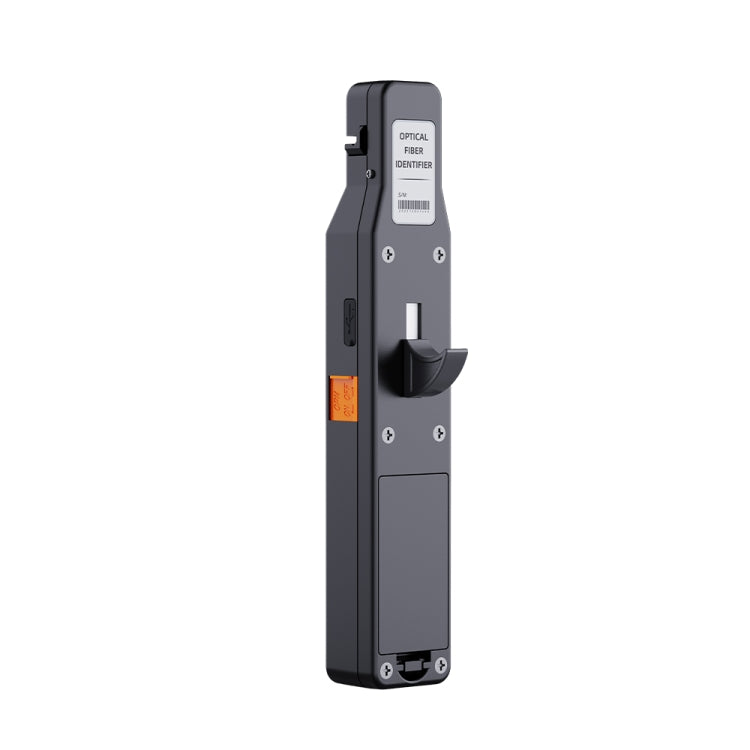

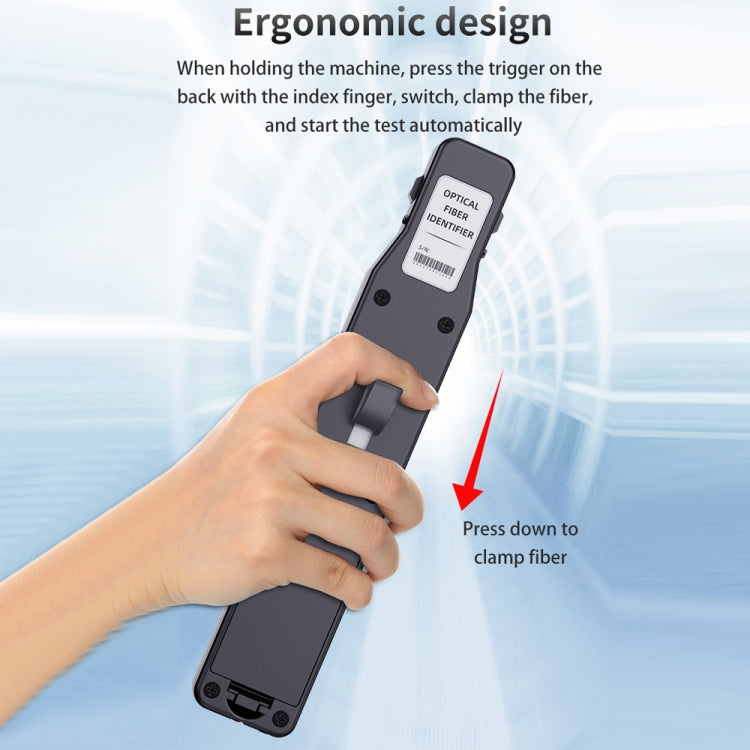

3. Ergonomic design. When holding the machine, press the trigger and switch on the back with your index finger, clamp the fiber optic cable, and automatically start testing.

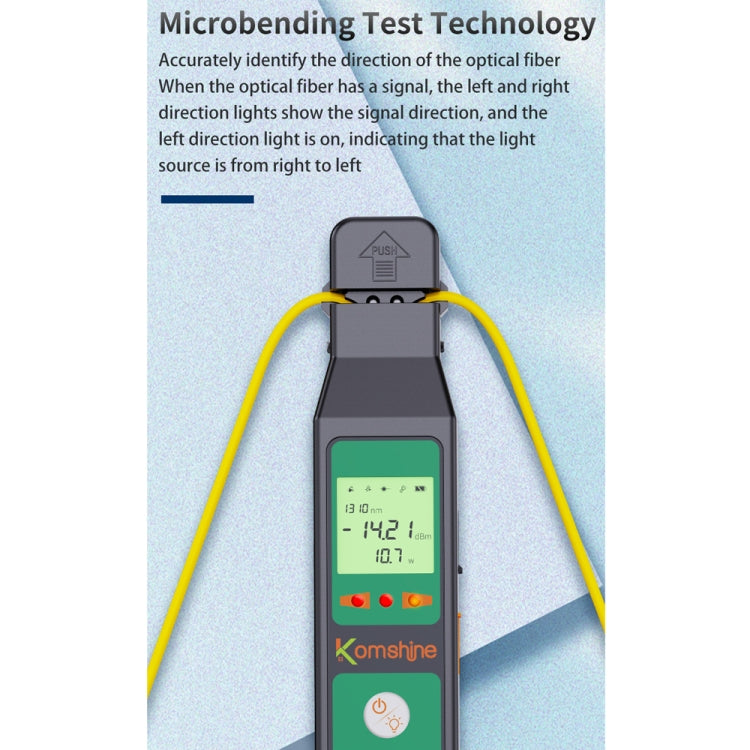

4. Accurately identify the direction of the optical fiber. When there is a signal in the optical fiber, the left and right direction lights show the signal direction. The left direction light lights up indicating that the light source is from right to left.

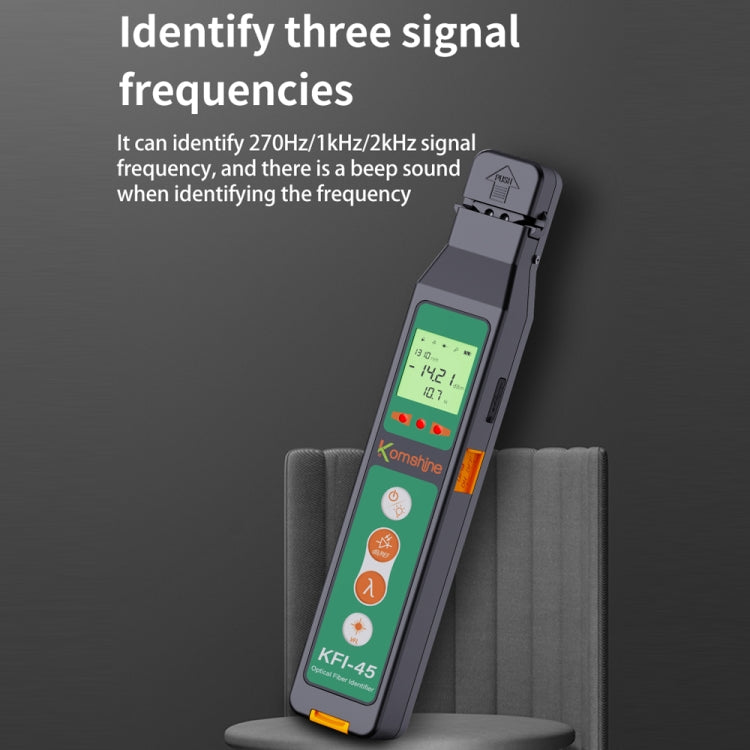

5. Identifies three signal frequencies, and can identify 270Hz/1kHz/2kHz signal frequencies. There will be a buzzing sound when the frequency is identified.

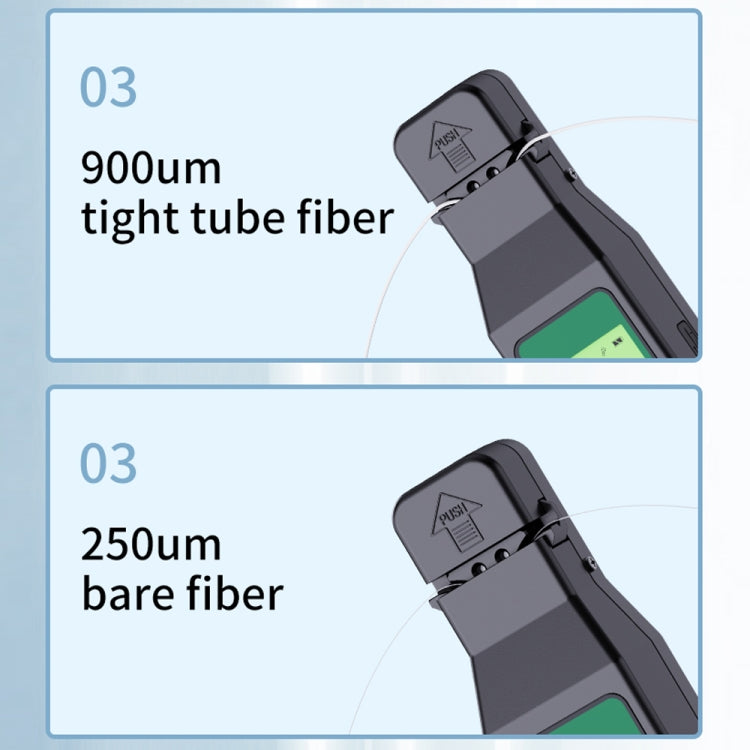

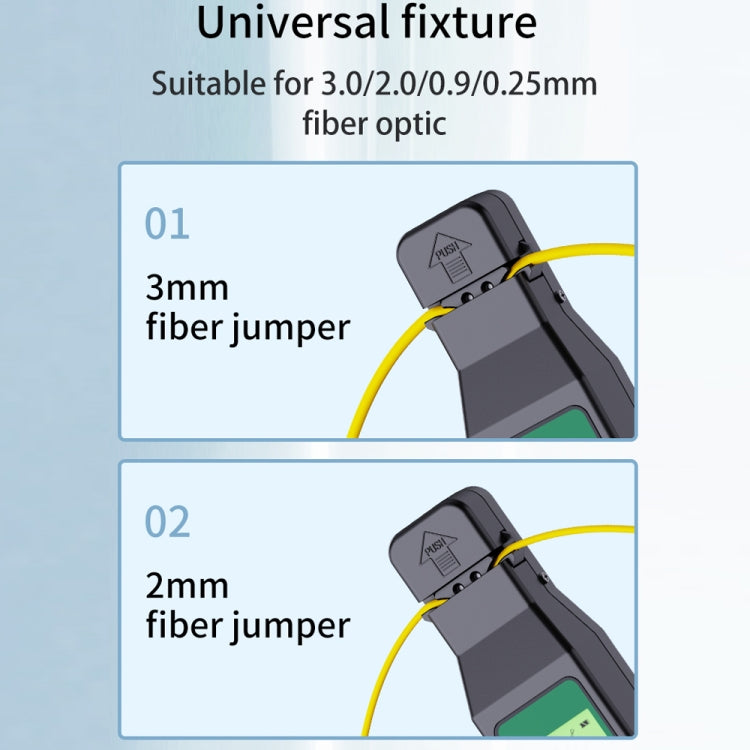

6. Universal clamp, suitable for 3.0/2.0/0.9/0.25mm fiber optic cable
