ISDT Aircraft Model Lithium Battery 1-8S Electric Display Measuring Appliance

ISDT Aircraft Model Lithium Battery 1-8S Electric Display Measuring Appliance is a versatile measuring device for lithium batteries. It is designed for everyday use, allowing users to monitor battery voltage, cycle, and working parameters efficiently.

• Product Type: Charger
• Compatibility: Lithium Battery 1-8S
• Material: Durable
• Color/Variant: N/A
• Working Voltage Range: 5.0V-36V
• Balance Port 1 String Input Voltage Range: 0.8V-15V
• Balance Port 2-8 Series Input Voltage Range: 0.8V-4.8V
• Support Battery String Number: 1-8S
• Voltage Measurement Accuracy: 0.005V @4.2V
• Cell Balance Accuracy: 0.005V
• USB Charging Support: QC 2.0/3.0 BC1.2, 12/2A (MAX)
• Smart Battery Support: Set charging and anti-power parameters, query battery information and usage
• Supported Battery Types: LiHv (1-8S), LiPo (1-8S), LiFe (1-8S), Lilon (1-8S), NiMH/Cd (1-10S)
• Display Type: 2.4 inches 320x240 260,000 colors IPS LCD
• Visible Display: 260,000 colors under strong sunlight
• BG-8S Intelligent Battery Tester: Fully supports BattGO technology

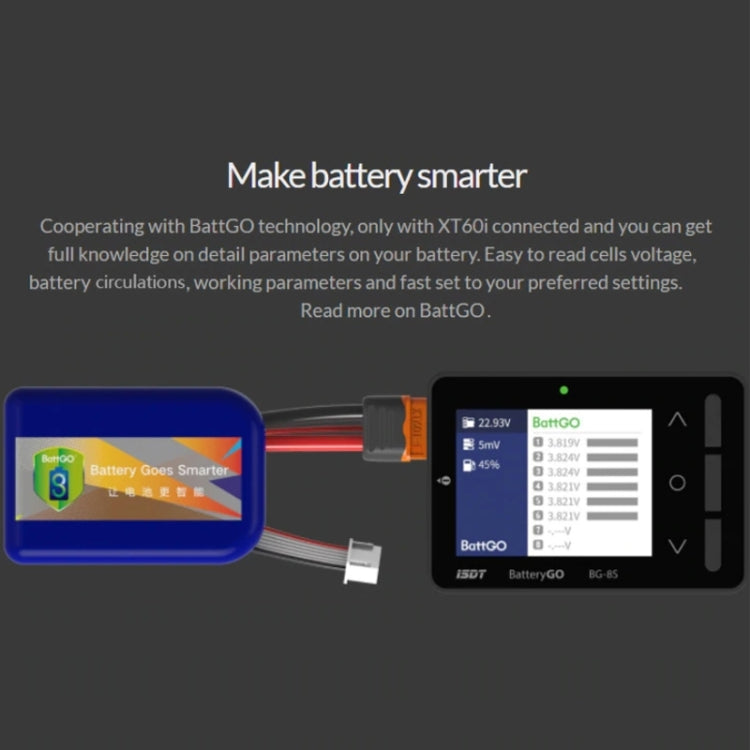

• Battery Parameter Understanding: Connect to XT60i for detailed battery parameters
• Automatic Voltage Balancing: Advanced algorithm for cell balance, low power consumption mode after completion

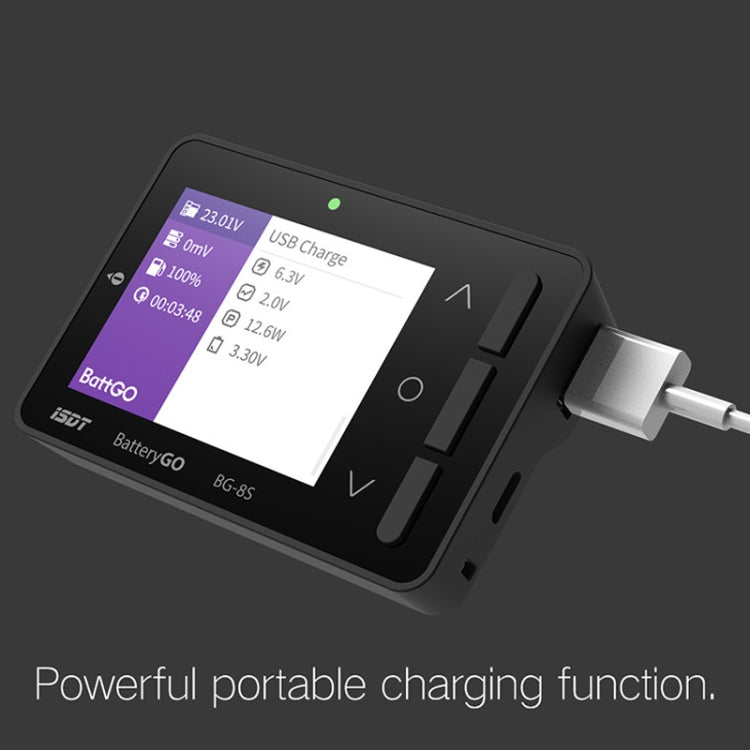

• Portable Charging Function: Can act as a power bank for mobile devices

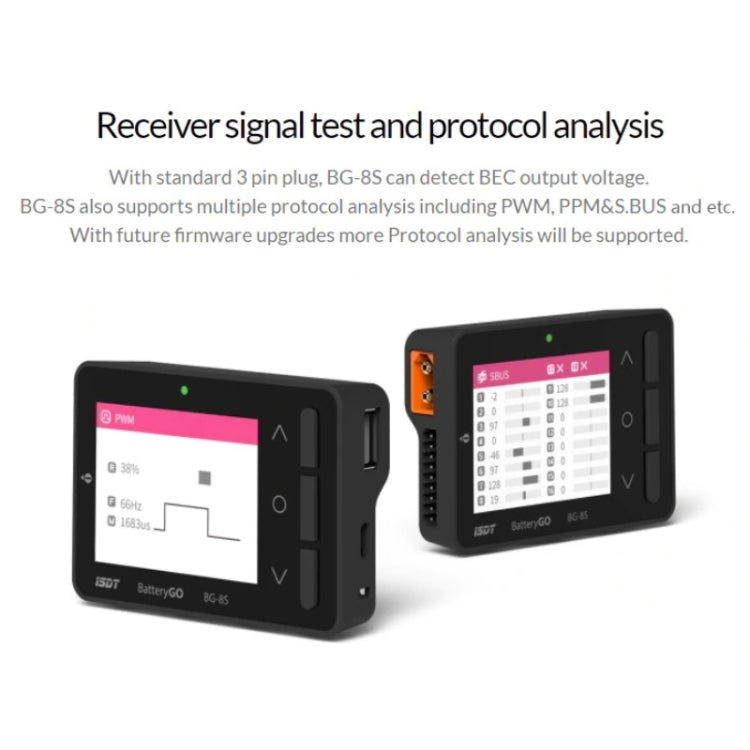

• Protocol Analysis Support: Standard 3-pin plug for BEC output voltage detection
• Multiple Protocol Analysis: Supports PWM, PPM, S.BUS, with future firmware upgrades

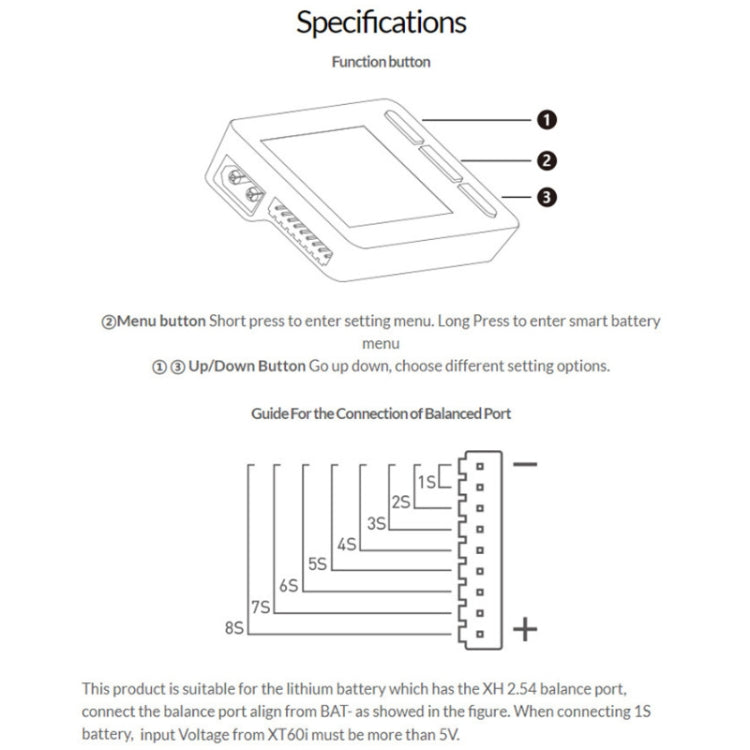

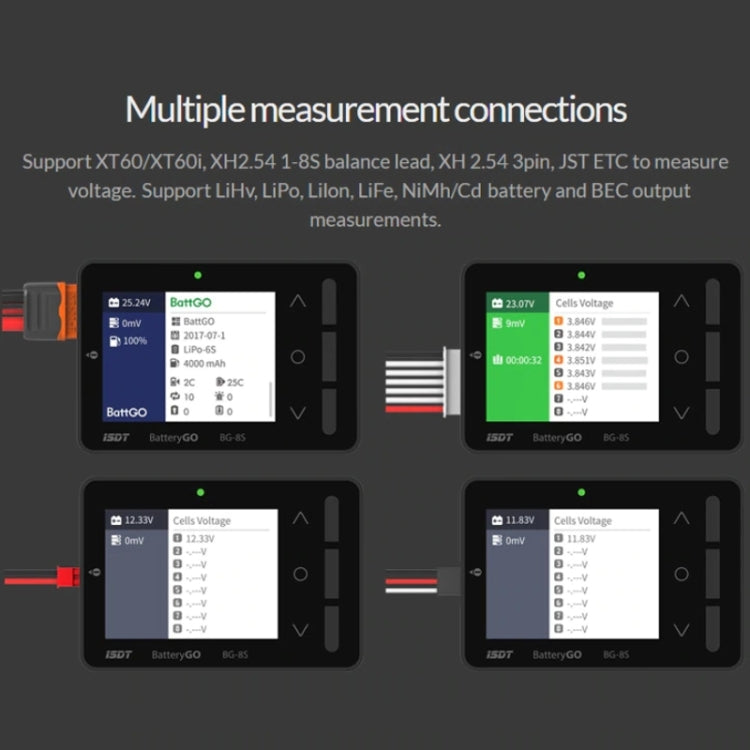

• Connector Support: XT60/XT60i, XH2.54 1-8s balanced leads, XH2.54 3-pin, JST

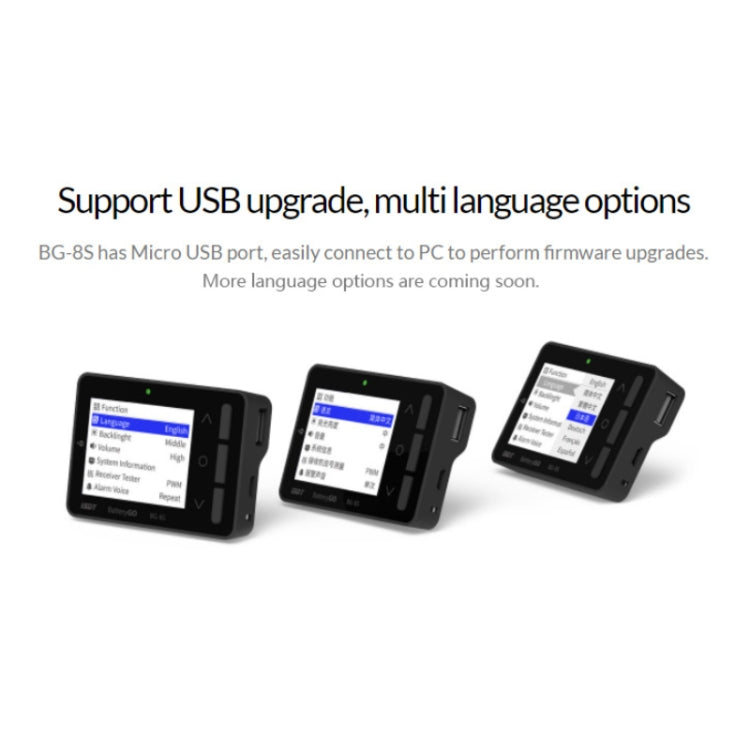

• USB Upgrade: Multi-language selection available
• Micro USB Port: For easy connection to PC for firmware upgrades

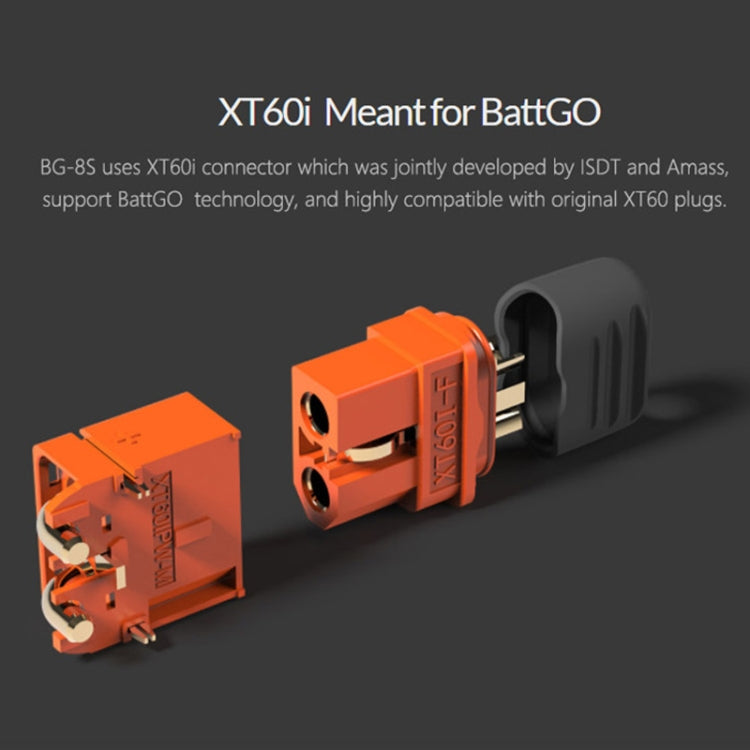

• XT60i Connector: Designed for BattGo, highly compatible with original XT60 plug
• Dimensions: 80x55x19mm
• Weight: 59 grams
