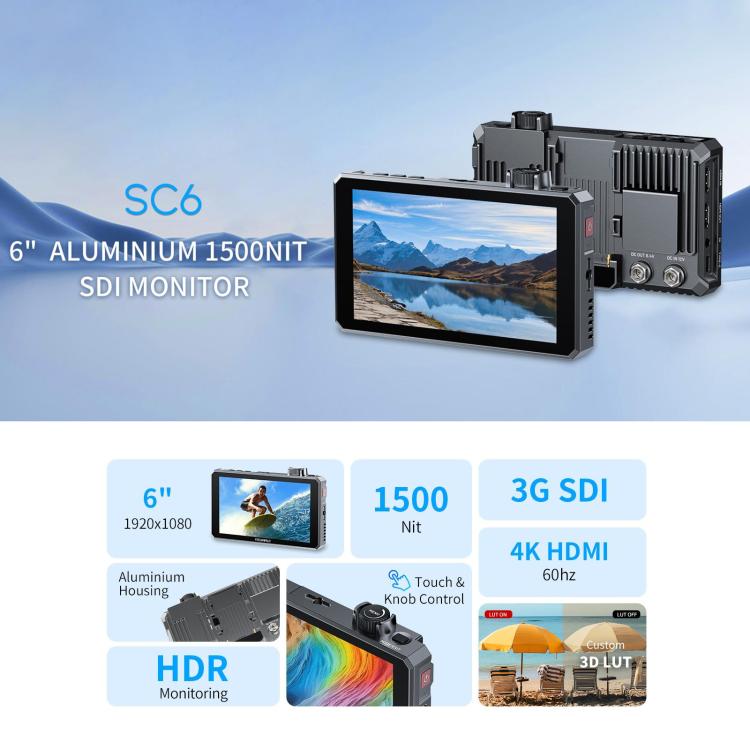

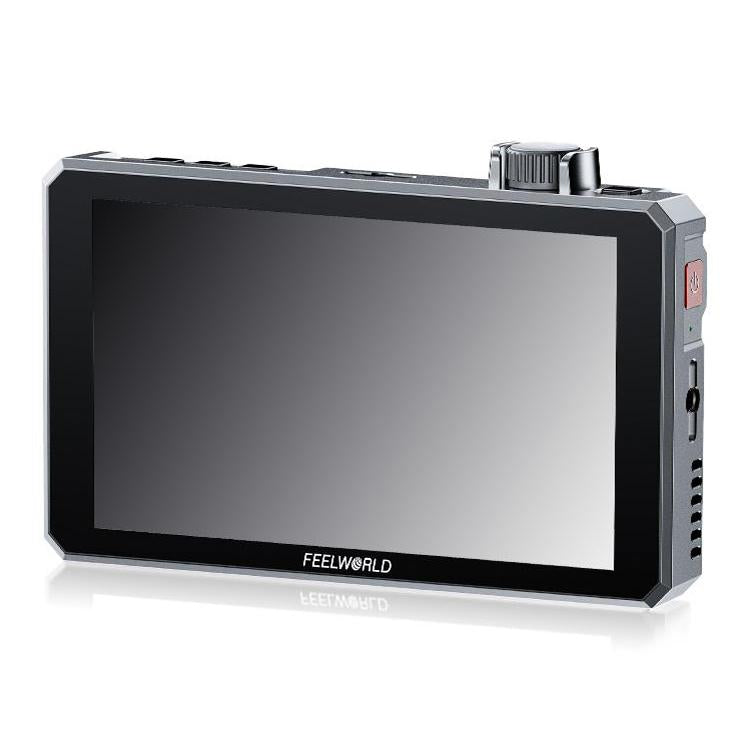

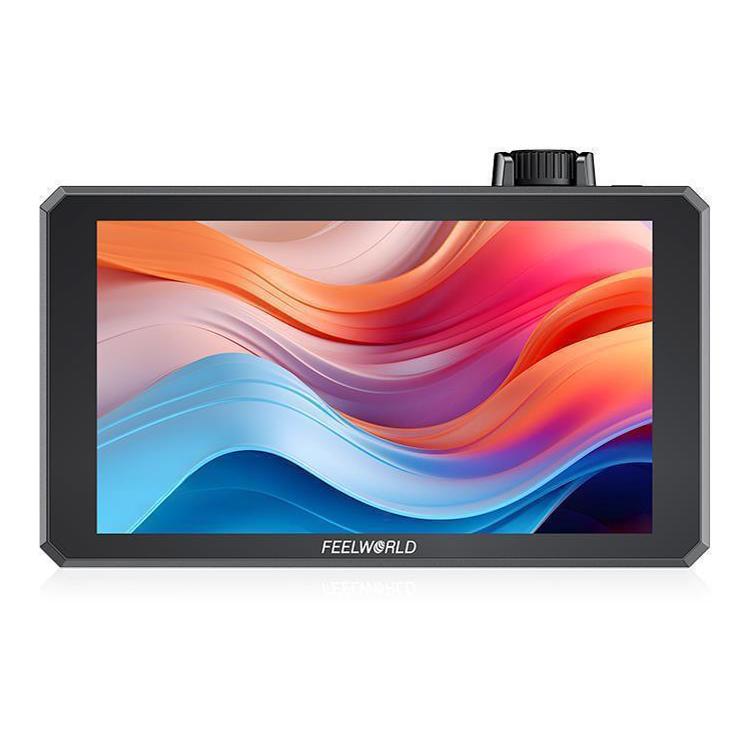

FEELWORLD SC6 6-inch 1500nit High Brightness Aluminium Filed Camera Video Monitor 3G SDI 4K HDMI-compatible 60Hz 1920 x 1080 IPS Screen(Black)

SKU: EDA008618201A
Sale Sold out Pre-order
Regular price R 5,759.00
Regular price Sale price R 5,759.00
Pay in 3, 6, or 12 monthly instalments with

Import Taxes & Duties Excluded

6-13 business days

In Stock CHN

Processing time: 1-3 days

Description

The FEELWORLD SC6 is a 6-inch camera video monitor designed for high brightness applications. It is suitable for outdoor filming where visibility is crucial due to its 1500 nit brightness.

  • Model: SC6
  • Screen Size: 6 inches

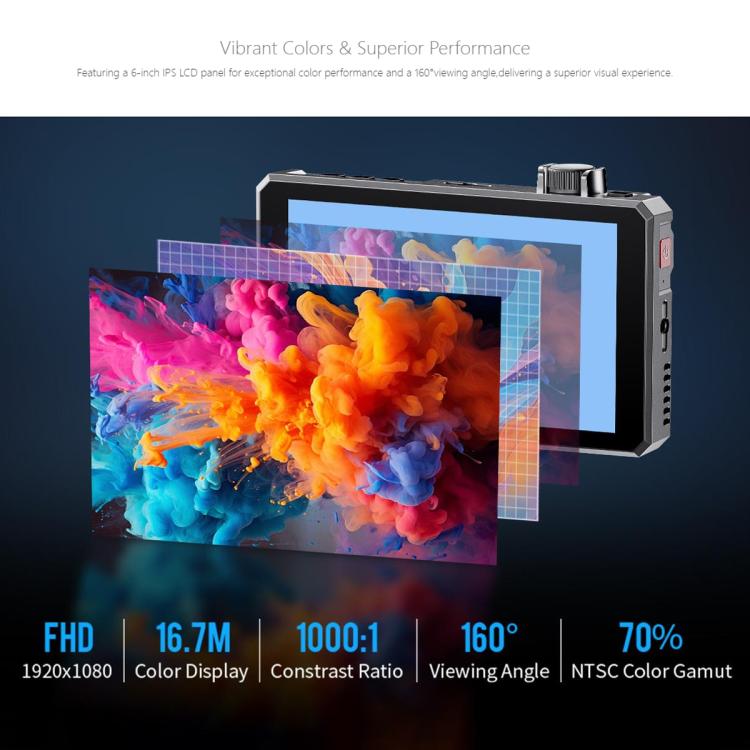

  • Screen Type: IPS
  • Resolution: 1920 x 1080 pixels
  • Pixel Pitch: 0.069 mm (L) x 0.069 mm (W)
  • Color Depth: 8-bit
  • Aspect Ratio: 16:9

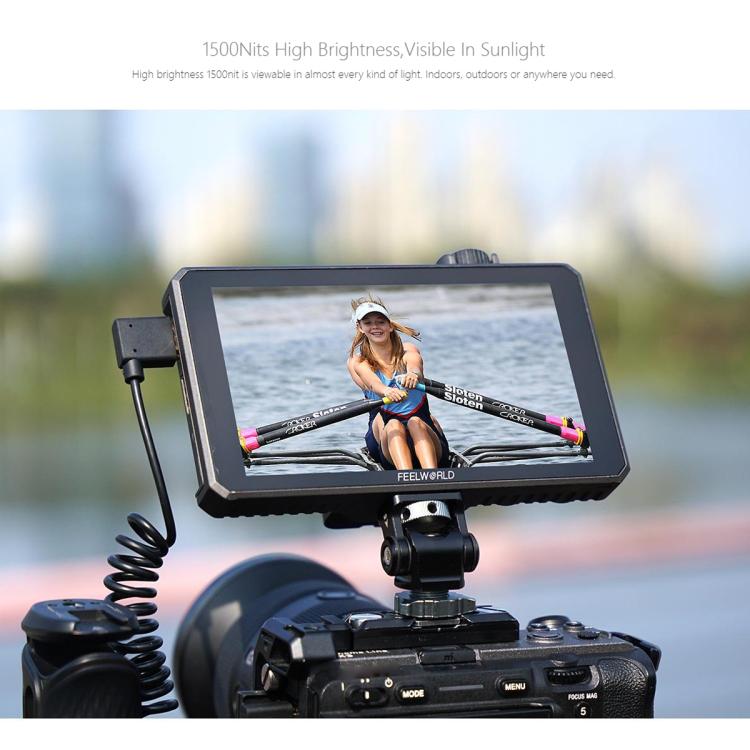

  • Brightness: 1500 cd/m²
  • Contrast Ratio: 1000:1
  • Response Time: 35 ms (Ton + Toff)
  • Backlight: LED
  • Viewing Angle: 80 degrees (L/R), 80 degrees (U/D)

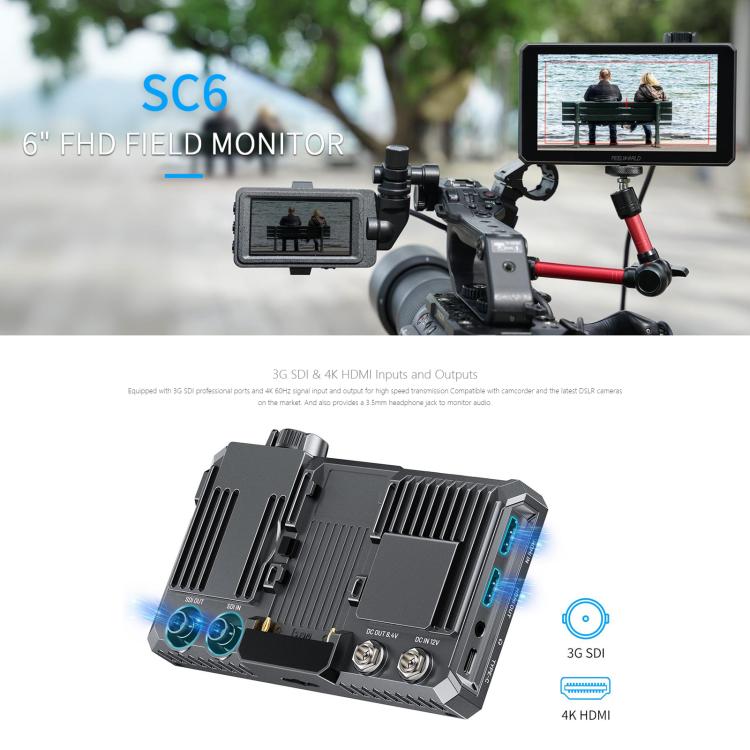

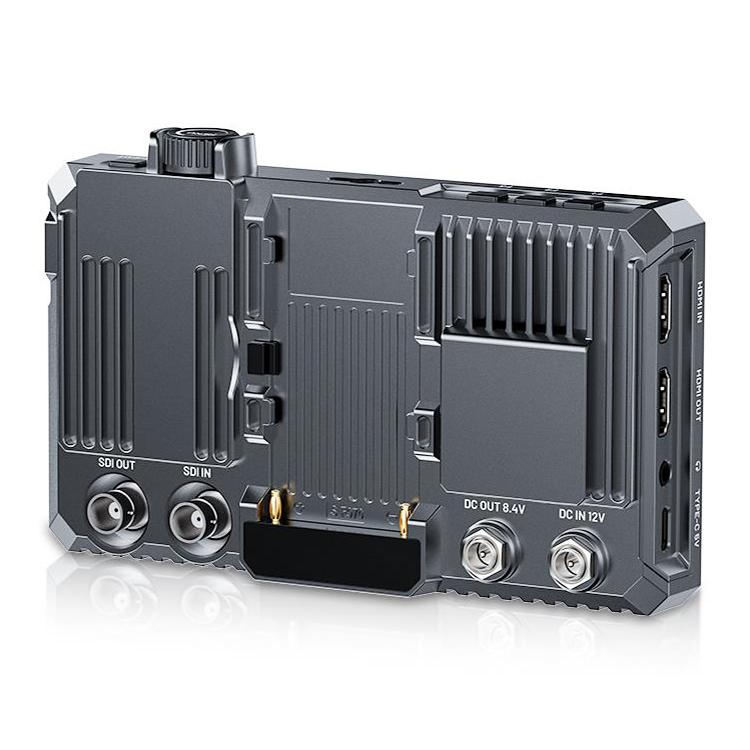

  • Input: 1 x 3G-SDI, 1 x HDMI-compatible 2.0, 1 x USB-C (LUT file import and firmware update)
  • Output: 1 x 3G-SDI, 1 x HDMI-compatible 2.0
  • Audio Output: 3.5mm Stereo Headphone
  • Supported Formats (3G-SDI Input/Output): 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98)
  • Supported Formats (HDMI-compatible Input/Output): 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 4K (3840 x 2160p at 60/50/30/29.97/25/24/23.98), 4K (4096 x 2160p at 60/50/30/29.97/25/24/23.98)

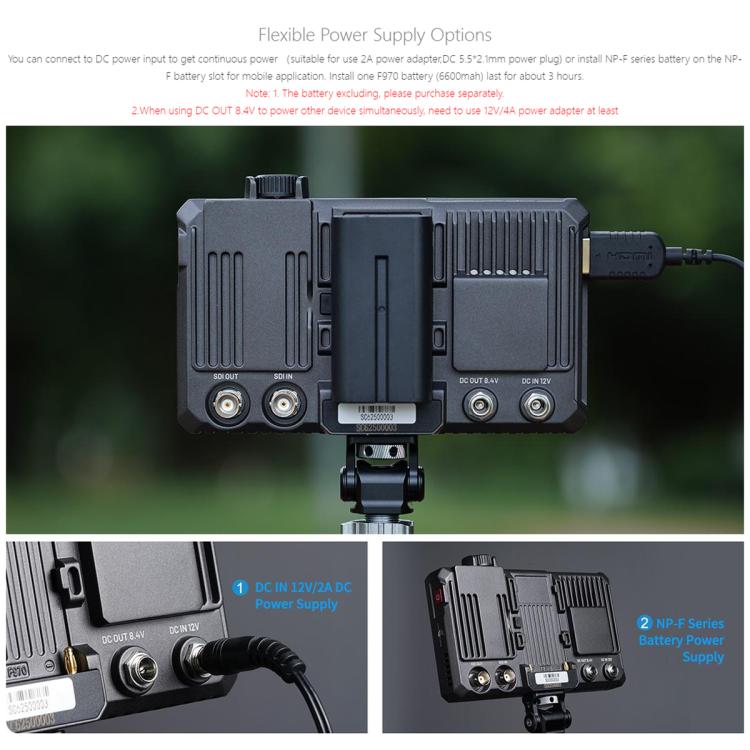

  • Power Input: DC IN 12V, Barrel (5.5mm outer, 2.1mm inner)
  • Power Output: DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner) - can power DSLR or mirrorless camera
  • Input Voltage: DC 7-24V
  • Power Consumption: ≤ 18W
  • Battery Slot: NP-F Battery Slot
  • Working Temperature: -20°C to 50°C
  • Storage Temperature: -30°C to 60°C

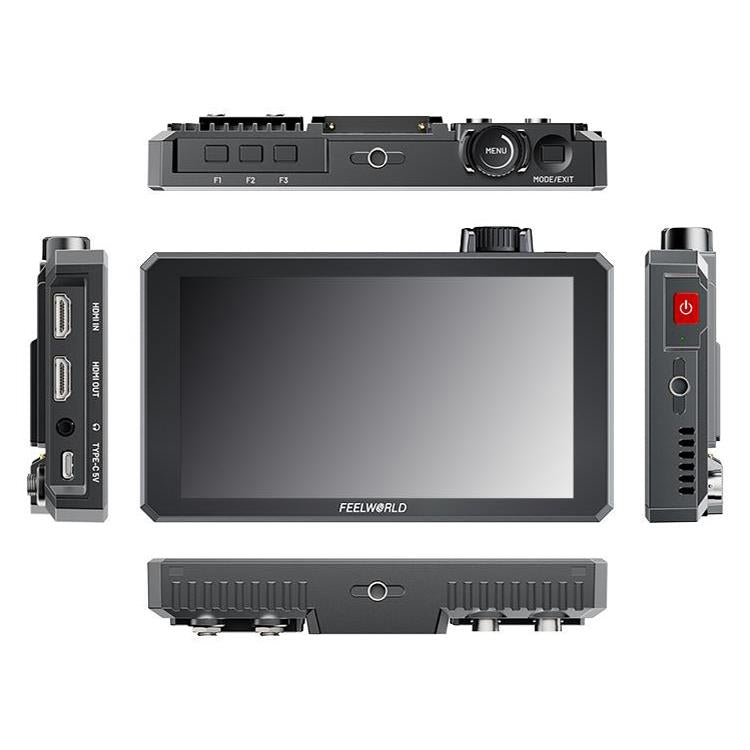

  • Installation: 1/4-20 Thread Point (Top, Right side, bottom)
  • Unit Size: 165 x 103 x 28.8 mm
  • Unit Weight: 398 g

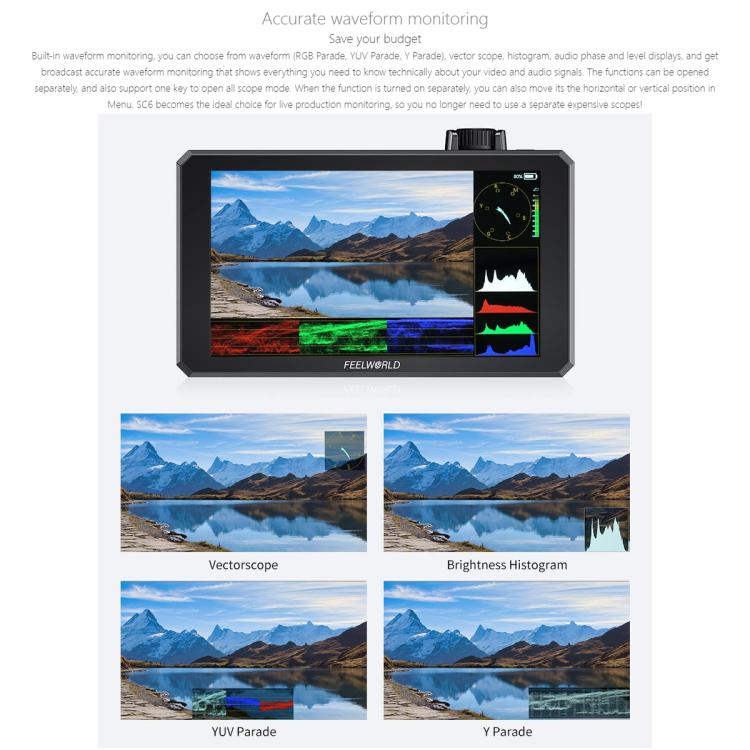

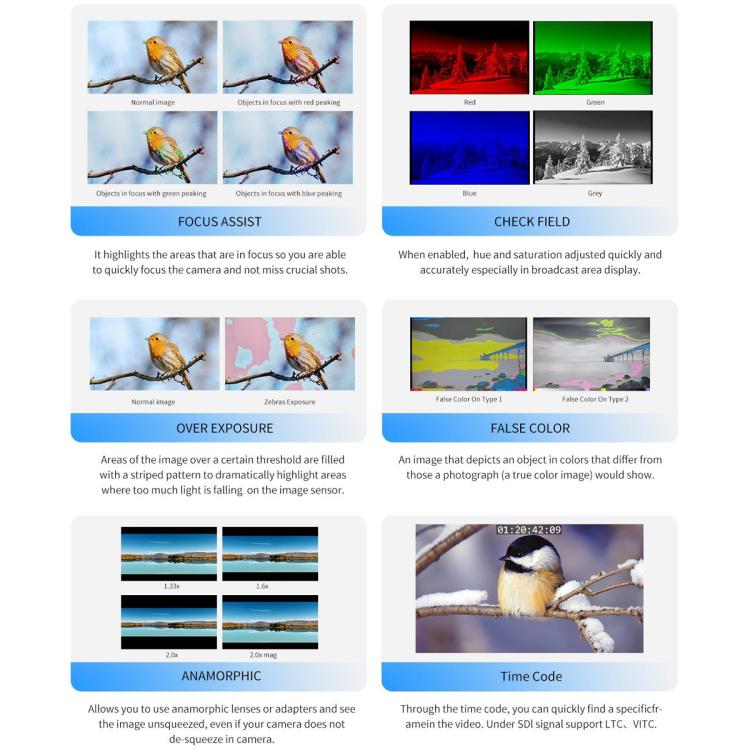

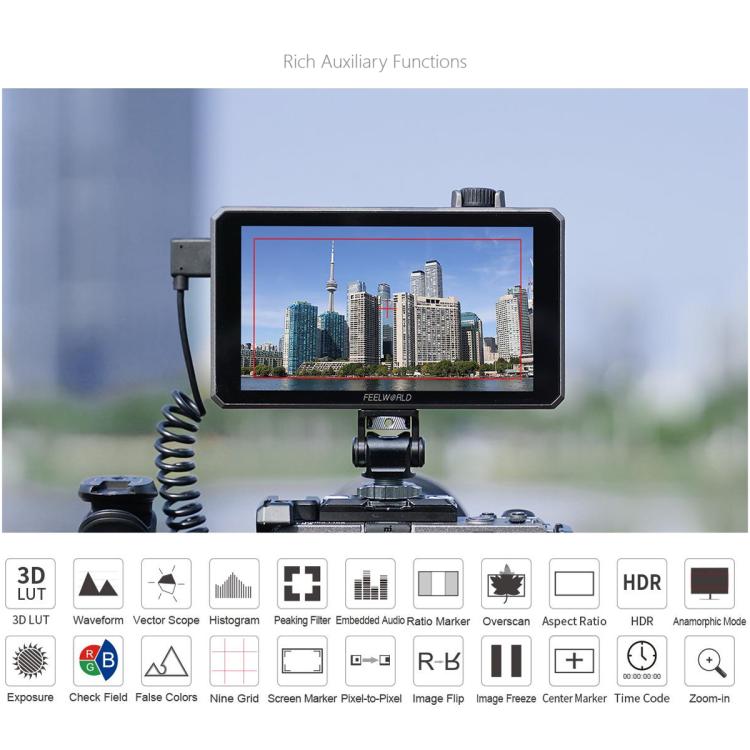

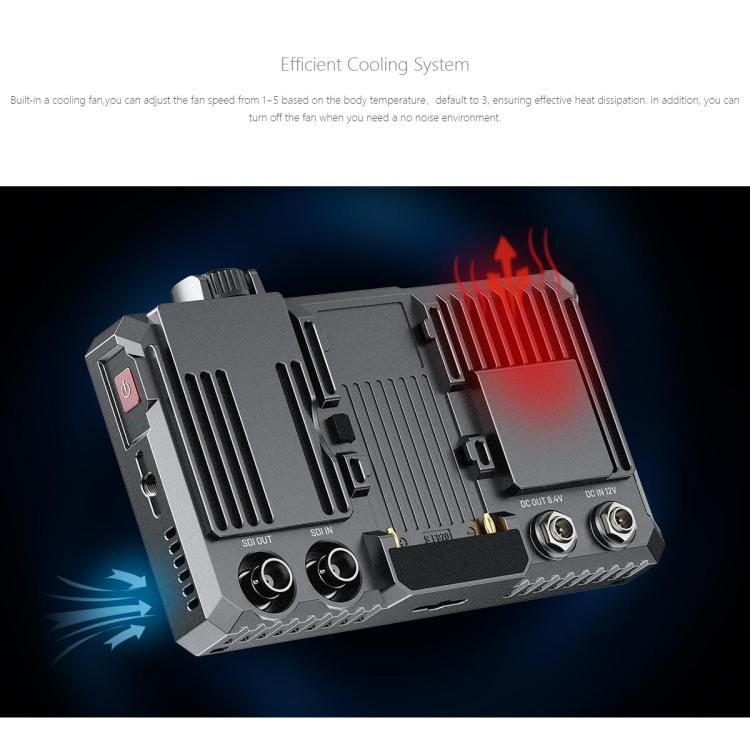

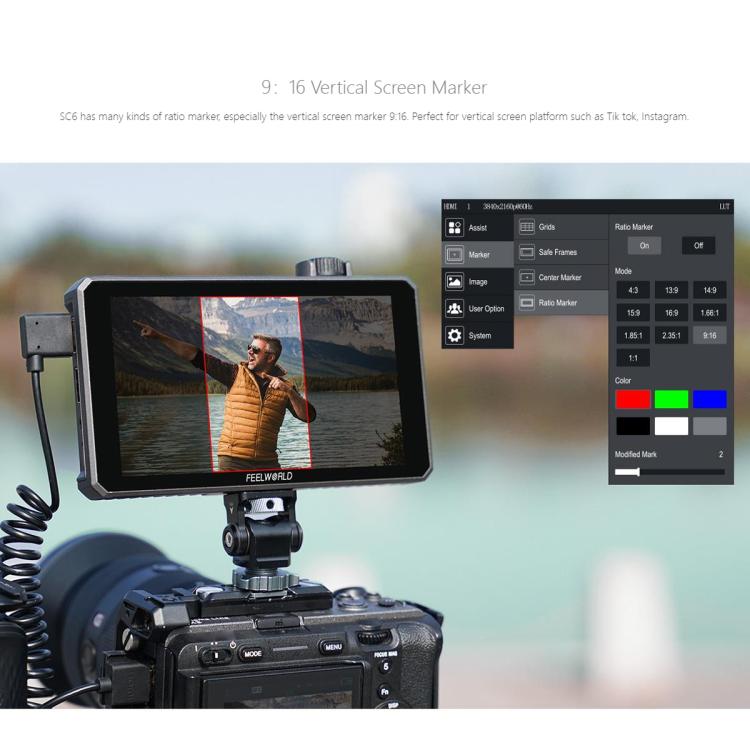

  • Advanced Features: Support for 3D LUT Log to Rec.709, user 3D LUT upload (up to 32), waveform (RGB, YUV, Y), HDR, vector, histogram (RGB1, RGB2, Y), embedded audio, focus assist (adjustable levels), false colors, zebra pattern, check field, scan mode, anamorphic mode, image flip, image freeze, center marker, safety frames, aspect ratio settings, ratio marker, grid options, zoom mode, pixel to pixel, SDI time code, display range settings, EDID settings, user switch, OSD time settings, OSD transparency settings, background color settings, cooling fan settings, power settings, color temperature settings.
