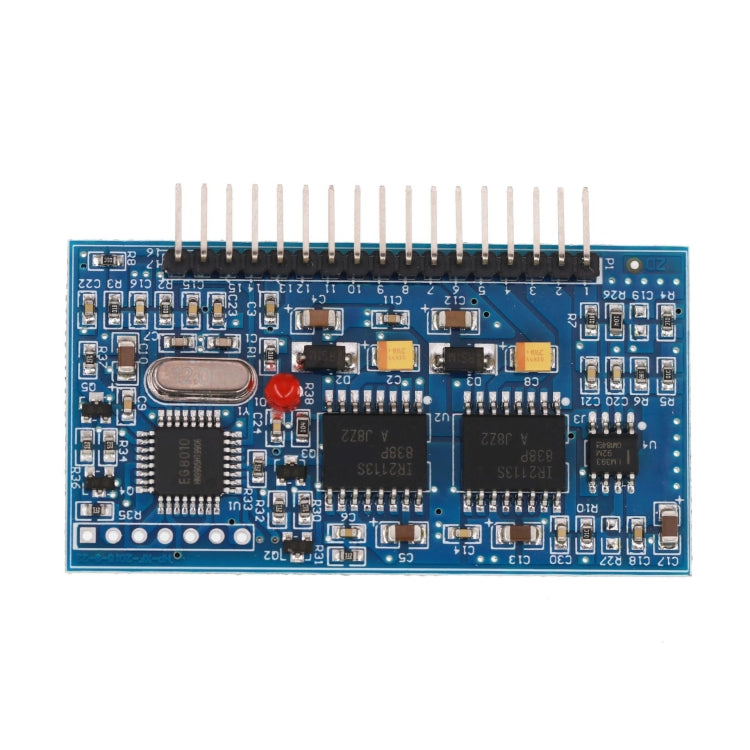

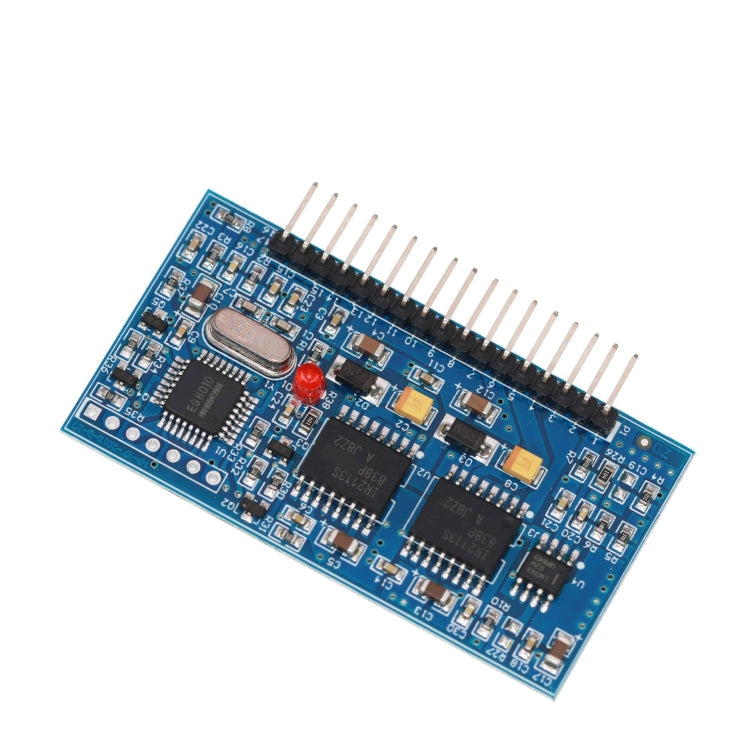

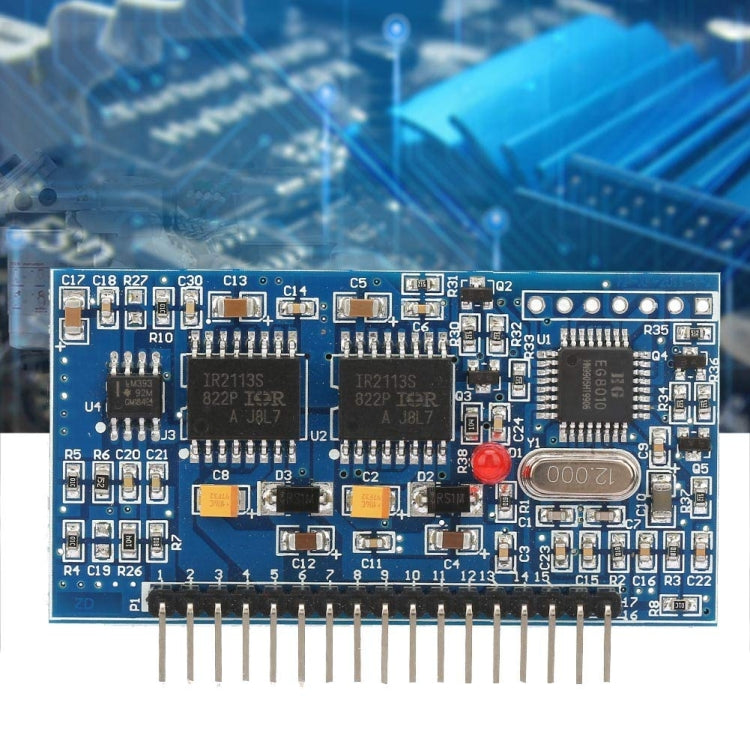

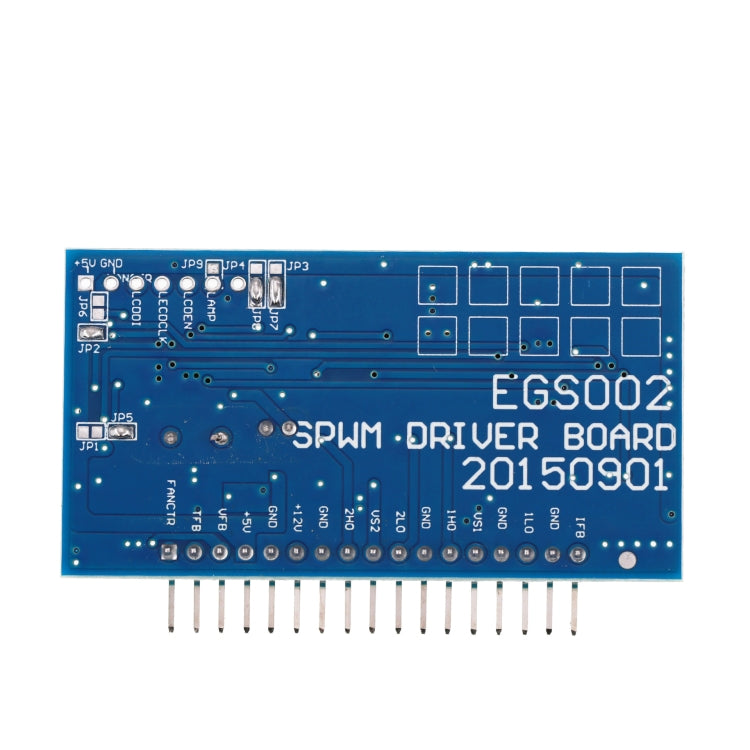

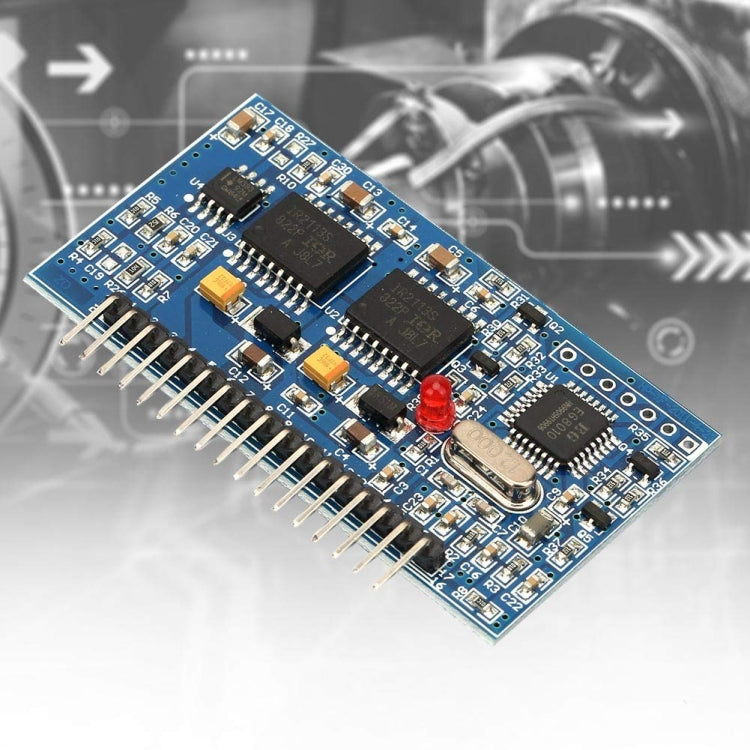

EGS002 Pure Sine Driver Inverter Driver Module

Name: EGS002 Pure Sine Driver Inverter Driver Module
Brand: PMC Jewellery
SKU: TBD0604289901
Price: 239.00 ZAR
Availability: InStock

R 239.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Purpose: suitable for DC-DC-AC two-stage power conversion architecture or DC-AC single-stage industrial frequency transformer boost converter
2. Frequency: 23.4KHz
3. External 12MHz crystal oscillator, can realize 50Hz or 60Hz pure sinusoidal inverter chip, with high precision, anti-interference and harmonic
4. CMOS technology, integrated SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface and 12832 serial LCD driver module
5. Unipolar and bipolar modulation, real-time processing of voltage, current, temperature feedback
6. With deadband control, the pin can be set to 4 deadband
7. Pin setting soft start mode 1S response time
8. Serial communication to set the output voltage, frequency and other parameters
