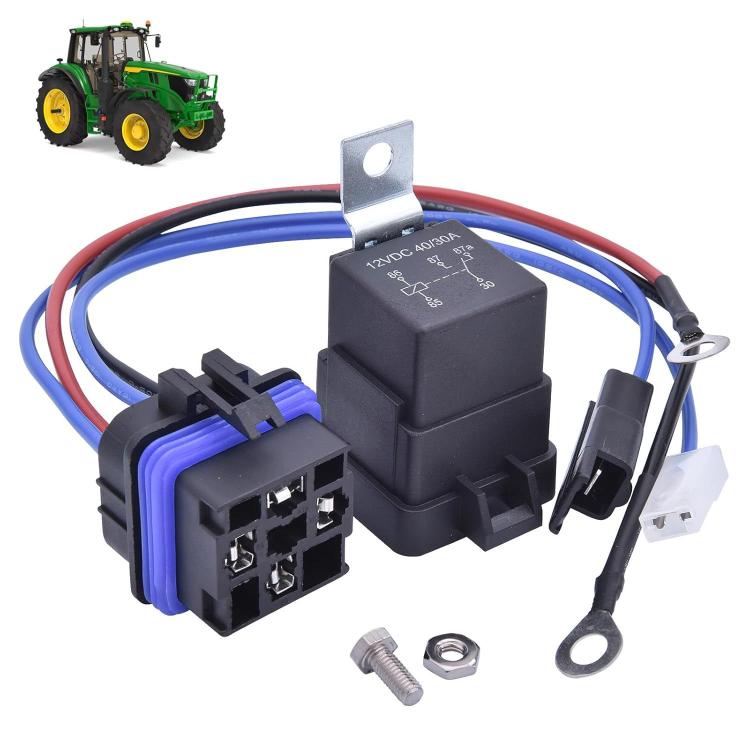

AM107421 Switch Starter Relay Kit for John Deere(40A/30A 12VDC)
AM107421 Switch Starter Relay Kit for John Deere(40A/30A 12VDC)
Sale
Sold out
Pre-order
Regular price
R 439.00
Regular price
Sale price
R 439.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description

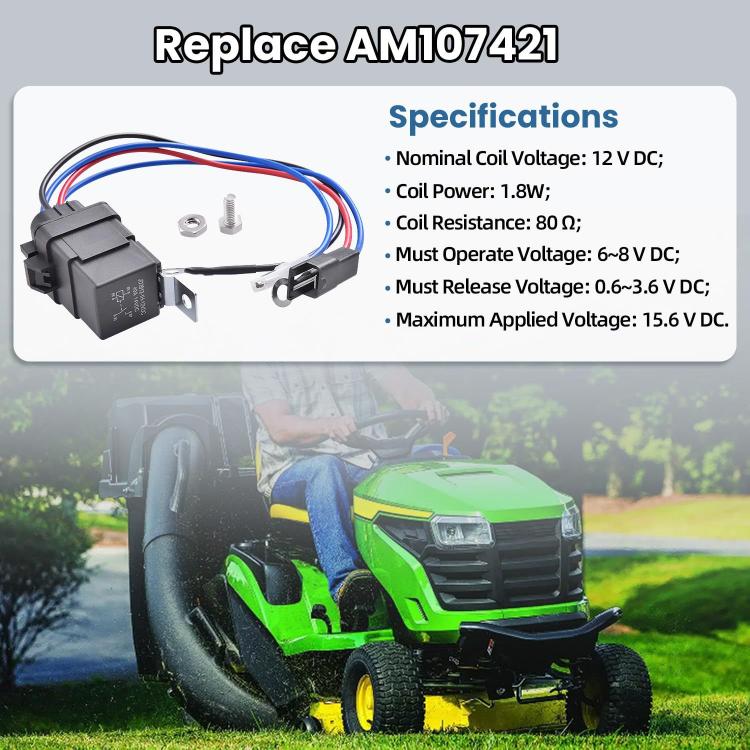

1. Specifications: 40A/30A 12VDC
2. Coil latch type: single coil latching
3. Switching voltage: 14VDC (max)
4. Switching current: 40A/30A (max)
5. Contact opening time: 5ms
6. Termination style: Pin
7. Contact configuration: 1-Pair changeover
8. Load voltage: 80A/60A 12V5P (max)
9. Load current: 80/60A (max)
10. Coil power: 1.8W
11. Features: the AM107421 Improved Starter Relay Kit is designed to eliminate the voltage between the battery and the starter solenoid, resolving the issue of only hearing a "click" when starting the machine.
12. Replacement part Number: AM107421
13. The relay kit features insulated material, a high-strand copper core, ultra-low impedance, high efficiency, and rigorous testing to ensure reliability and durability.

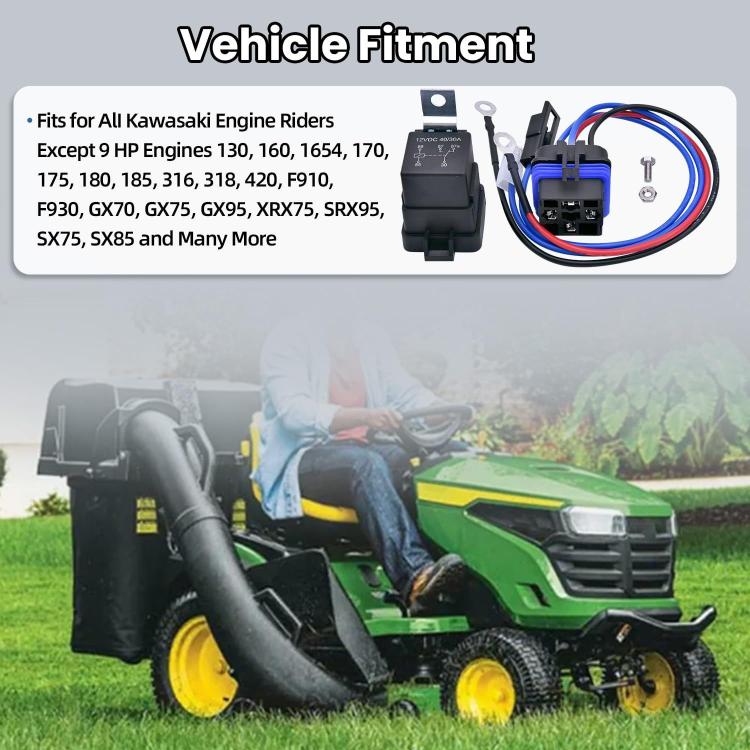

14. This accessory is compatible with all riding lawn mowers powered by Kawasaki engines. However, it does not fit models with 9-horsepower engines.
15. For John Deere models: 130, 160, 165, 170, 175, 180, 185, 240, 245, 260, 265, 285, 316, 318, 320, 325, 335, 345, 420, F510, F525, F910, F930, GX70, GX75, GX95, SX75, SX95, SRX75, SRX95, STX30, STX38, STX46, RX63, RX73, RX75, GT242, GT262, GT275, HD45X, HD75, LX172, LX173, LX176, LX178, LX186, LX188, GS25, GS30, GS45, GS75
