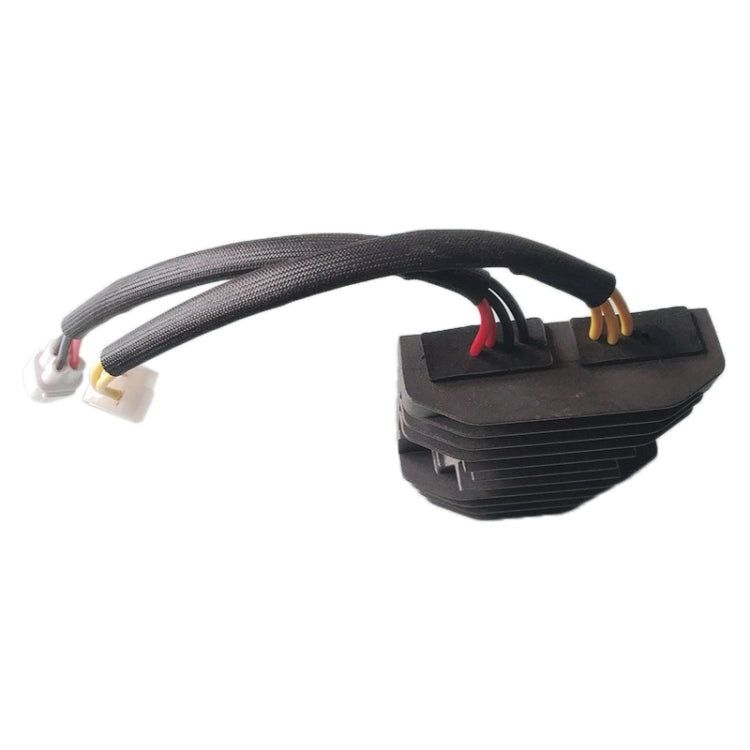

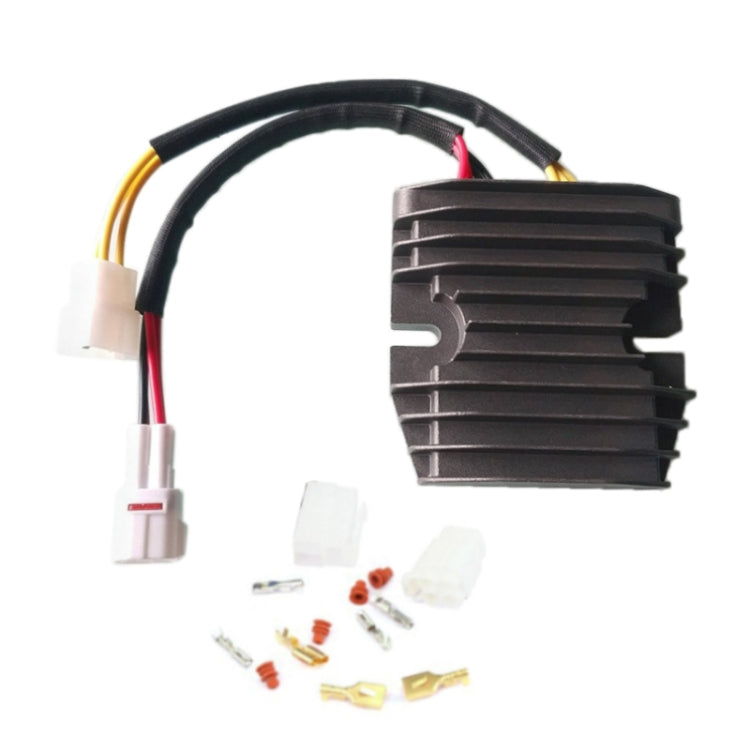

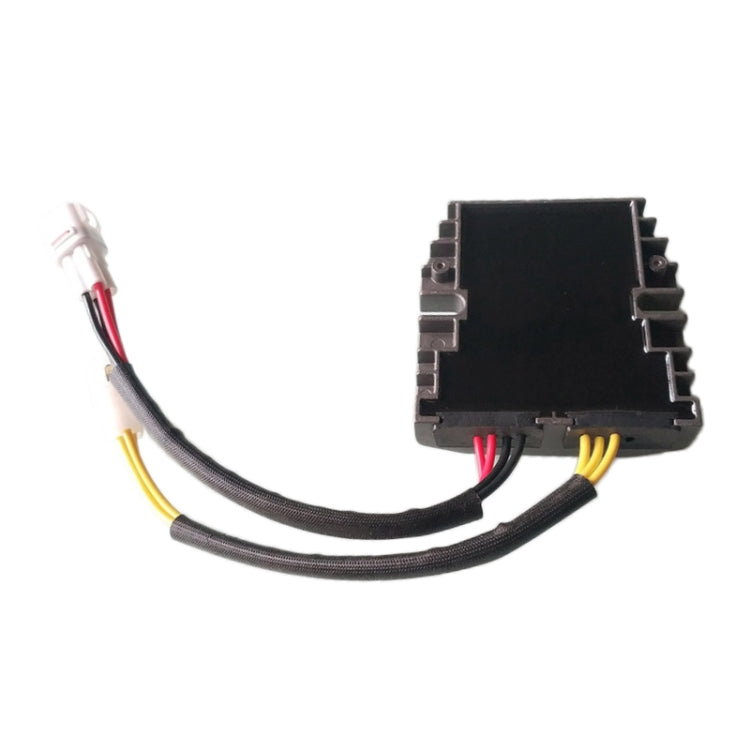

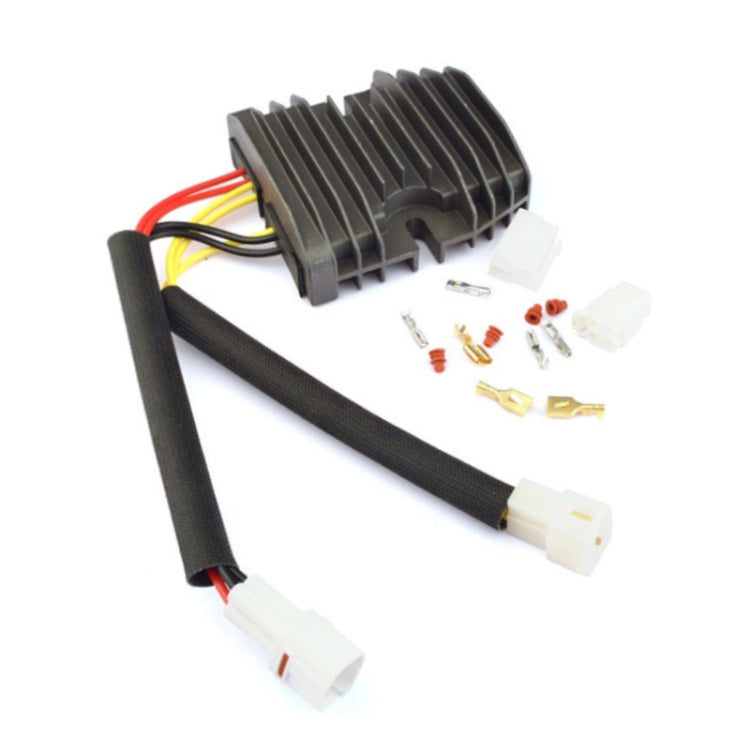

2001C.3 Motorcycle Rectifier For Suzuki GSXR 750/GSXR 600/GSXR 1000/Boulevard C50 VL800/Boulevard C50T VL800T

Name: 2001C.3 Motorcycle Rectifier For Suzuki GSXR 750/GSXR 600/GSXR 1000/Boulevard C50 VL800/Boulevard C50T VL800T
Brand: PMC Jewellery
SKU: TBD0544330801
Price: 929.00 ZAR
Availability: InStock

R 929.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Weight: 360G
2. Wire length: 1.5 square meters x 30CM
3. Output voltage: 14.5+/-0.5V

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative outputs are not connected, start the locomotive, measure the positive and negative output voltages, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The whole installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burnt out

Applicable models:
For Suzuki GSXR 750 -- 2006-2009, 2011-2017
For Suzuki GSXR 600 -- 2006-2009, 2011-2017
For Suzuki GSXR 1000 -- 2007-2009, 2012-2016
For Suzuki Boulevard C50 VL800 -- 2005-2007, 2013-2015
For Suzuki Boulevard C50T VL800T -- 2014-2015
For Suzuki SV 650 -- 2017
For Suzuki Boulevard C90T VL1500T -- 2005-2009
For Suzuki Boulevard C90 VL1500 -- 2005-2009
For Suzuki Boulevard M50 VZ800 -- 2005-2009, 2013-2017
For Suzuki GSF 1250 Bandit -- 2007-2009
For Suzuki LTA 700 X KingQuad -- 2005-2006
For Suzuki GSX 650 F -- 2008-2009
For Suzuki GSX 1300 B-King -- 2008-2009
For Suzuki GSX 1250 -- 2011
For Suzuki Hayabusa GSX 1300 R -- 2008-2009, 2011-2012
For Suzuki VL800 Volusia (Mo l K1) -- 2001-2005
For Suzuki VL800 Volusia (Mo l K2) -- 2001-2005
For Suzuki VL800 Volusia (Mo l K3) -- 2001-2005
For Suzuki VL800 Volusia (Mo l K4) -- 2001-2005
For OEM Part Replacement

For 32800-02H00
For 32800-15H00
For 32800-15H10
For 32800-18H00
For 32800-41F00
For 32800-41F10
For 32800-47H10
For 32800-15H01
For 32800-21H00
For 32800-15H11
For 32800-41F01
For 32800-41G00
For 32800-41F11
For 32800-47H00
