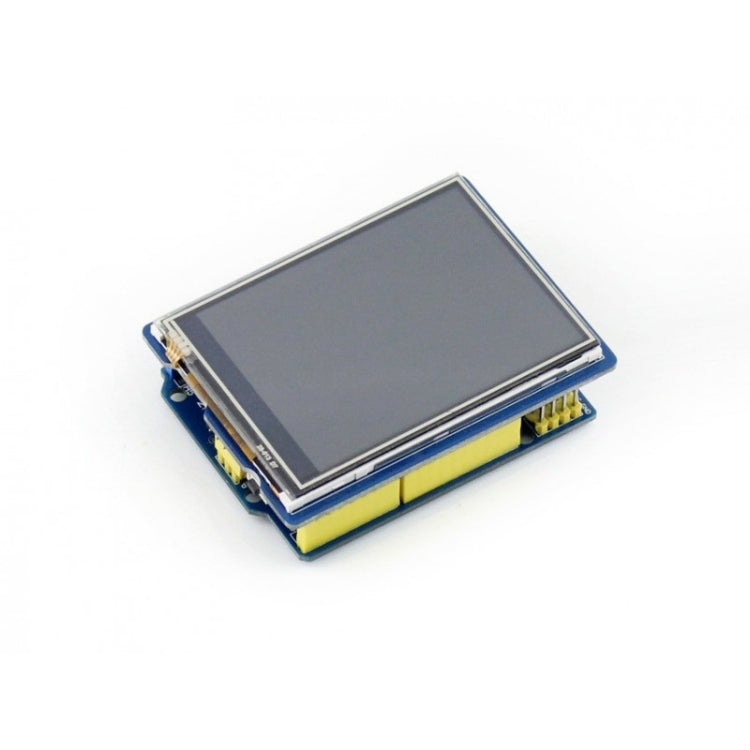

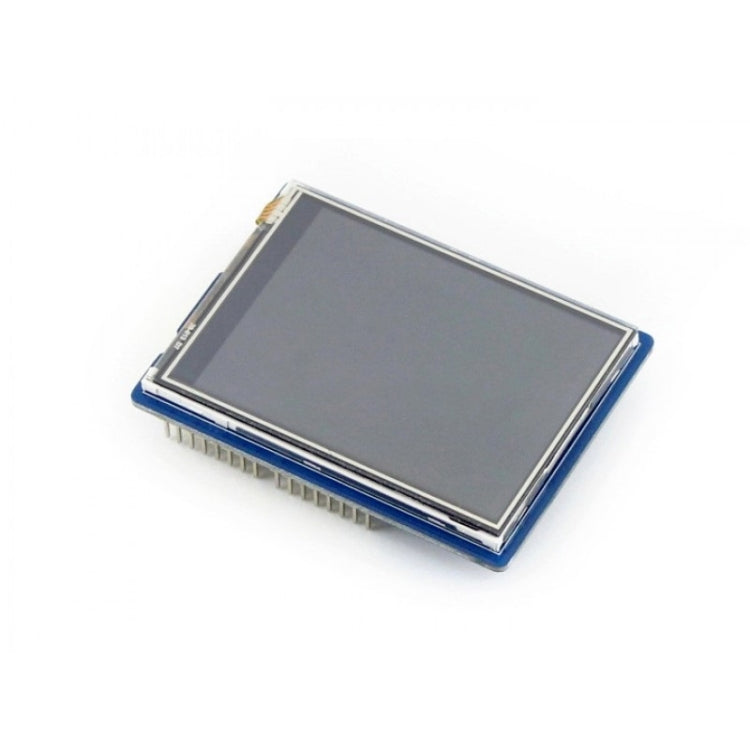

2.8 inch Touch LCD Shield for Arduino
2.8 inch Touch LCD Shield for Arduino
Sale
Sold out
Pre-order
Regular price
R 509.00
Regular price
Sale price
R 509.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Arduino Nucleo Accessories
• Brand: Waveshare
• Compatibility: Arduino UNO, 3, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
• Material: TFT
• Key feature: Resistive touch screen
• Color/Variant: RGB, 65K colors
• Intended use: Development use
• Category: Electronics Module
Features
1. Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution
2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
4. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via SPI, only a few Arduino pins are used
7. Backlight adjustable by program, lower power consumption
Key Parameters
1. LCD Type: TFT
2. LCD Interface: SPI
4. LCD Controller: HX8347D
5. Touch Screen Type: Resistive
6. Touch Screen Controller: XPT2046
7. Colors: RGB, 65K colors
8. Resolution: 320x240 (Pixel)
9. I/O Voltage: 3.3V/5V
Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield
