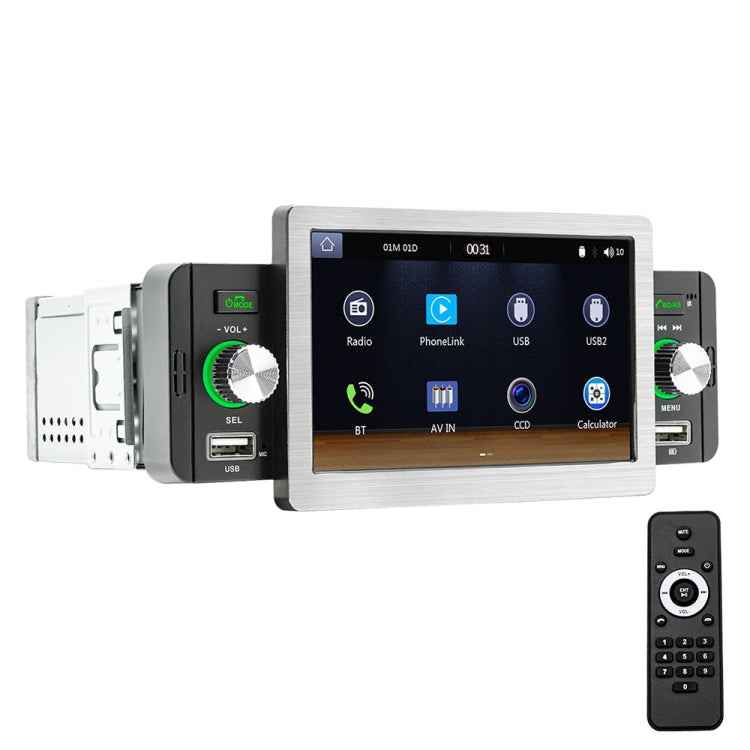

158W 5 inch Allwinner Melis F133 Car MP5 Player, Support CarPlay / BT / USB / FM

158W 5 inch Allwinner Melis F133 Car MP5 Player, Support CarPlay / BT / USB / FM

Regular price R 1,329.00
Regular price Sale price R 1,329.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Functions
1. FM radio
2. U disk (audio/video/picture)
3. BT function
4. RCA audio output can be connected to a subwoofer

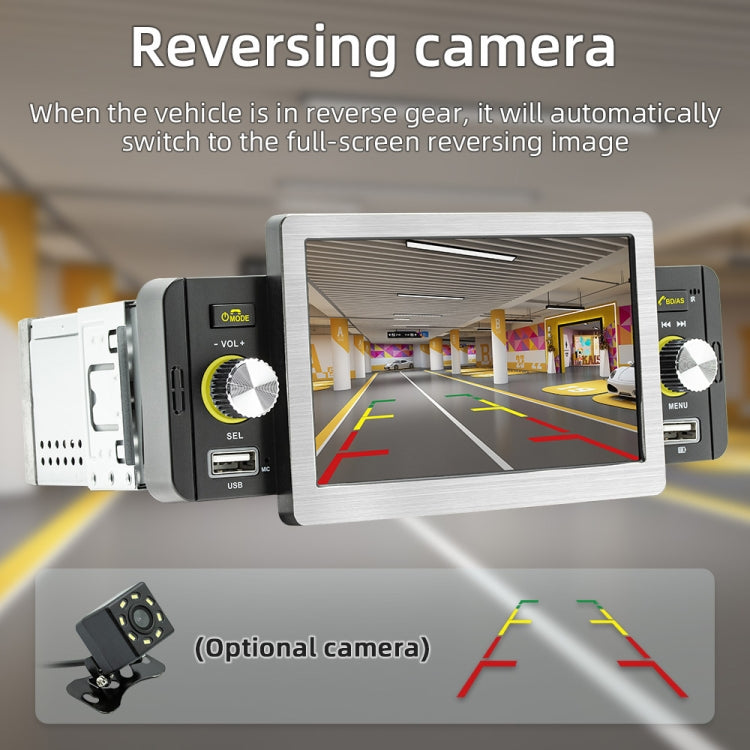

5. Rear view function when reversing
6. Video input and output functions

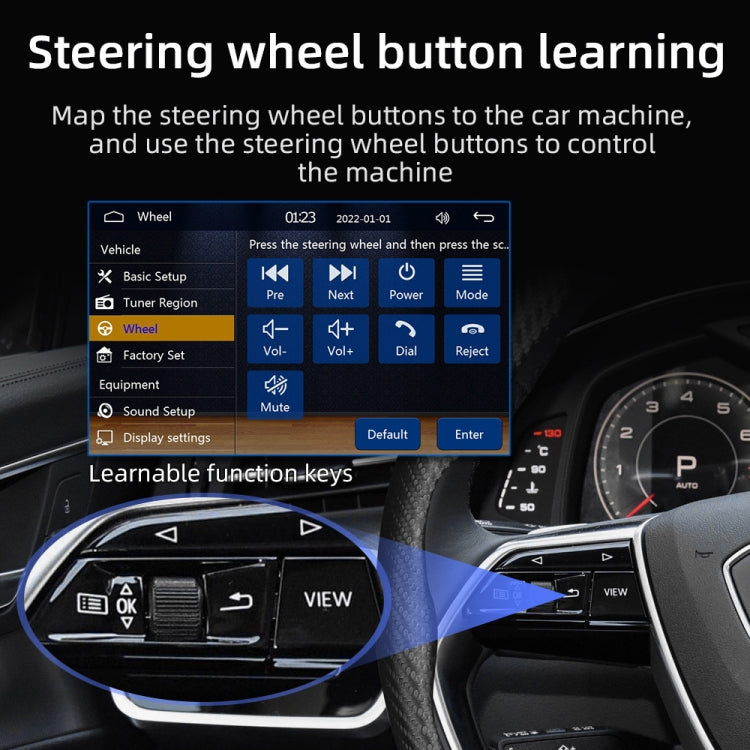

7. Original car steering wheel learning function

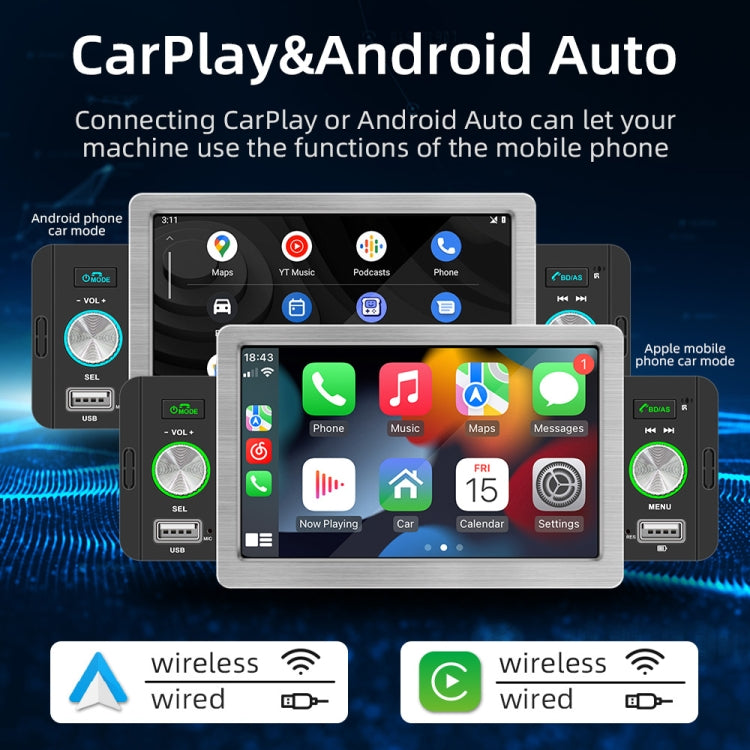

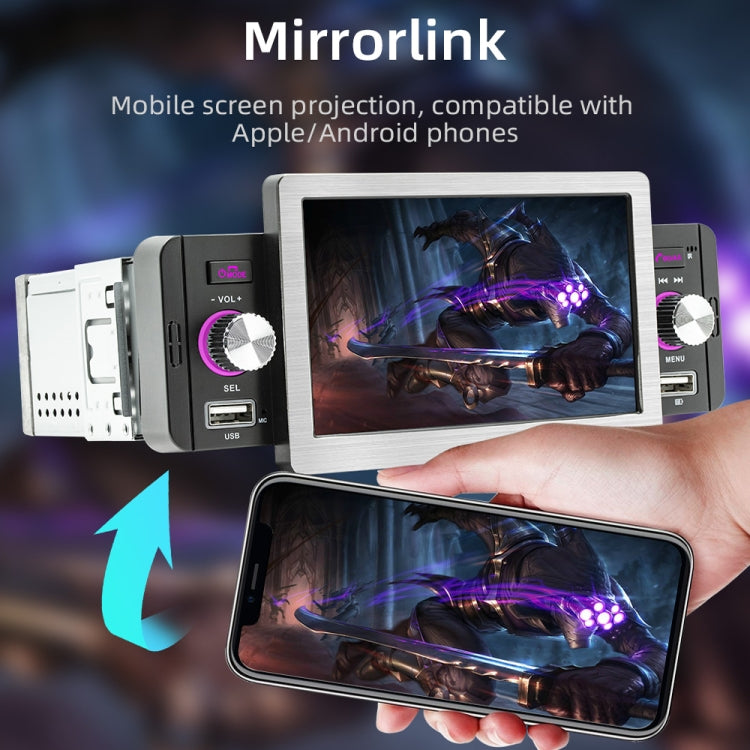

8. Mobile phone interconnection Wired and wireless Android AUTO/ iOS CarPlay

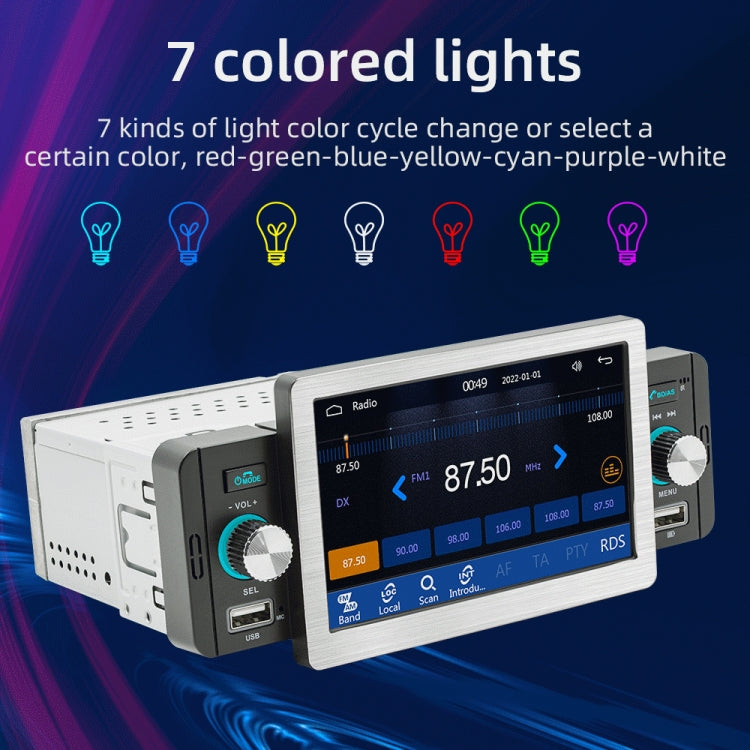

9. Colorful lights
10. Rear USB

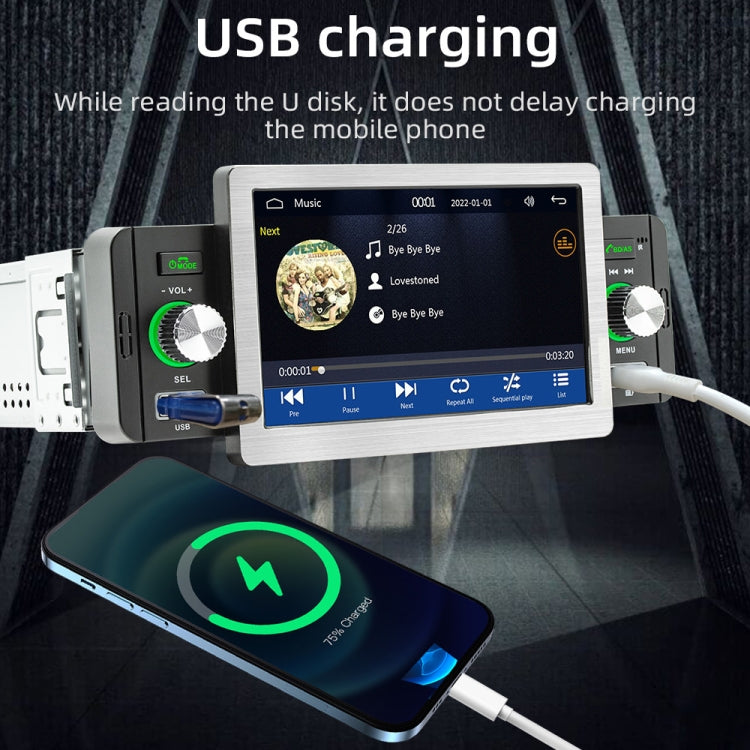

11. USB charging port

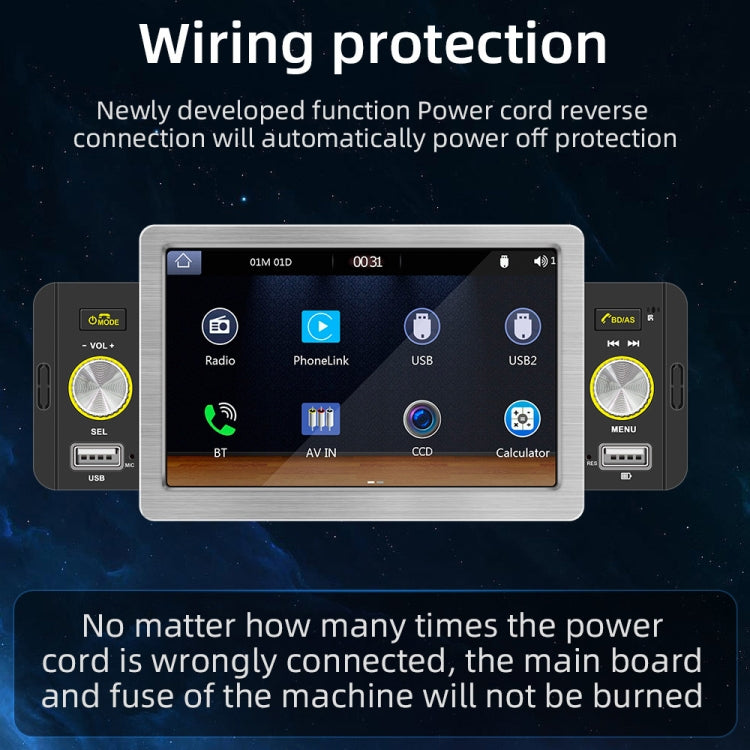

12. Protection function for reverse polarity of the power supply (if the positive and negative poles of the power cord are connected incorrectly, the circuit board will not be burned)

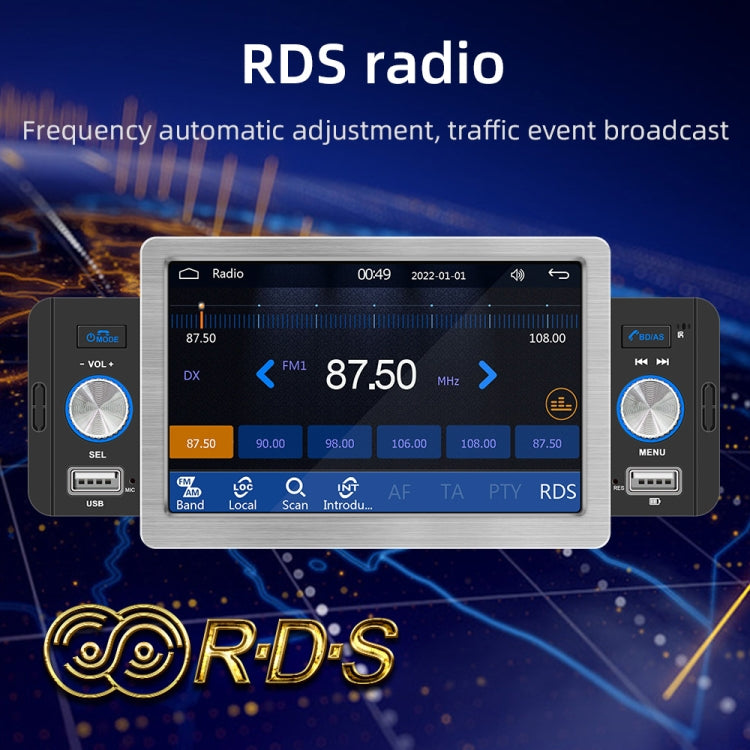

13. RDS function, can receive traffic radio stations in real time

Specifications
Basic Parameters:
1. Type Car: MP5
2. System: Allwinner melis system
3. Software solution: F133
4. Radio frequency: FM 87.5~108.0MHz / 522~1620KHz (the radio frequency can be switched in China, America 1, America 2, Japan, Russia, the Middle East, and Europe)
5. Radio IC: 4732
6. Power amplifier IC: CD7388CZ
7. Output power: 60Wx4
8. Working voltage: 12~14.4V
9. Working temperature: -10~60 degrees Celsius
10. Bluetooth version: version 5.1 (default name: SWL-BT)

Performance Parameters:
1. CPU: F133
2. Running memory: 533M
3. Display resolution: 800x480
4. Screen size: 5 inches

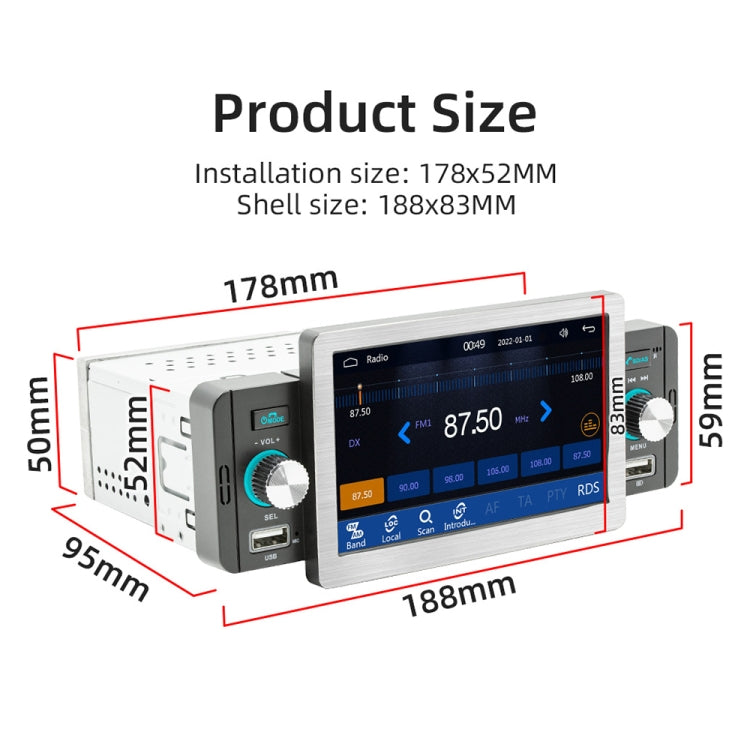

Dimensions & Weight Parameters:
1. Installation size: 178x52mm
2. Case size: 188x83mm
3. Host depth: 95mm
4. Single unit weight: 0.720kg

Function Parameter:
1. Mobile Internet: Supported
2. Reversing image: supported (camera optional)
3. Play video warning: Support
4. Steering wheel control: supports button learning
5. Video output: support
6. USB: front USB charging + front USB2.0 reading + rear USB2.0 reading
7. Reset button: Support

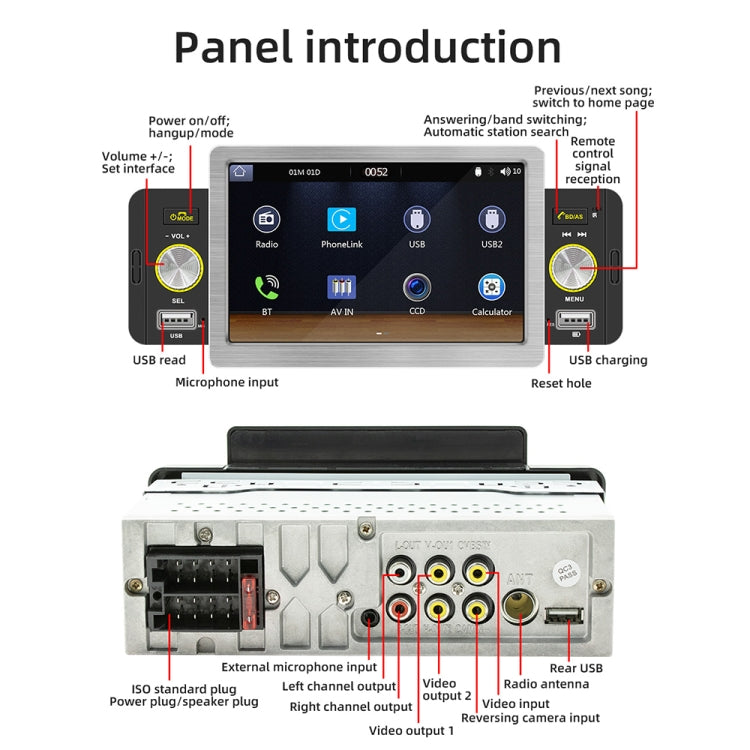

RCA port Parameters:
1. Audio output: 2 channels (left channel + right channel)
2. Video output: 2 channels
3. Rear external microphone input: supported (external microphone optional)
4. Video input: 1 channel
5. Reversing video input: 1 channel

Format Parameters:
1. Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV
2. Video format: H263/H264/H265/DIVX HD(720P 1080I 1080P)AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
3. Image format: JPEG/PNG/BMP/GIF/TIFF

Language Parameters:
English, Chinese, French, German, Arabic, Italian, Japanese, Portuguese, Russian, Spanish, Hebrew, Polish, Turkish, Czech

Other Parameters:
Factory setting password: 113266

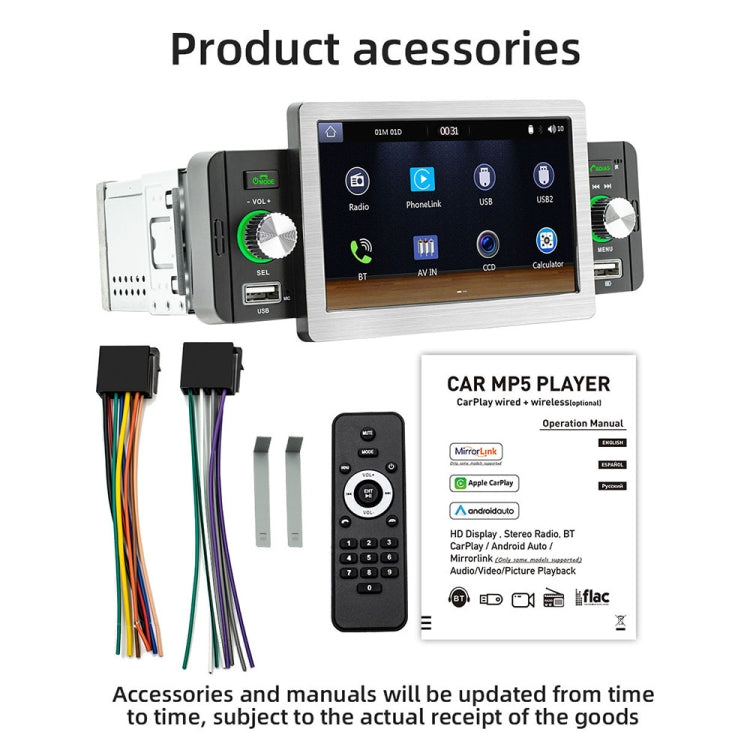

Package List
1. Host x 1
2. Instruction x 1
3. Power cord x 1
4. Remote control x 1
5. Vehicle key (Accessories, instructions, and packaging will be updated from time to time, subject to actual receipt of the goods) x 1
