Description

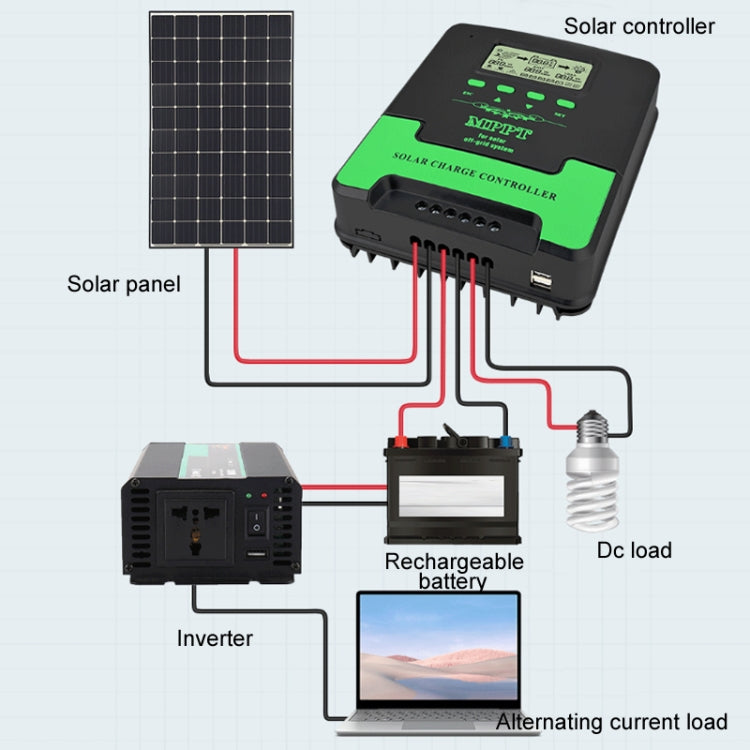

The 12V/24V 40A MPPT Smart Solar Charge Controller regulates solar energy for battery charging. It is suitable for applications such as solar street lights, solar roofs, and solar power generation systems.
- Material: ABS and metal
- System voltage: 12V/24V self-identification
- No-load loss: less than 0.4W
- Solar input voltage: 100V VOC (MAX)
- Battery voltage: 9-32V
- Voltage range: battery voltage +2V~100V (MAX)
- Rated charging current: 40A
- Rated load current: 20A
- USB output: 5V/3A
- Panel input power (MAX): 480W/12V; 960W/24V
- Temperature compensation coefficient: -2mv/degree Celsius/2V (default value)
- Working temperature: -10 to +65 degrees Celsius
- Protection level: IP21
- Electromagnetic compatibility: in accordance with EN61000, EN55022, EN55024

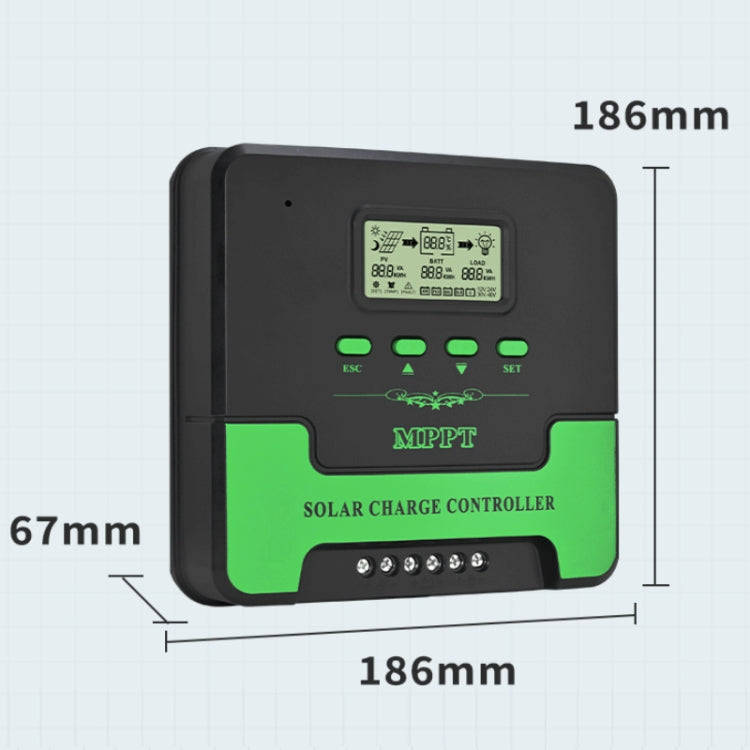

- Dimensions: 18.6 x 18.6 x 6.7 cm
- Weight: 946 g
- Application scope: solar street lights, solar roofs, solar awnings, solar power generation systems, solar RVs, solar billboards

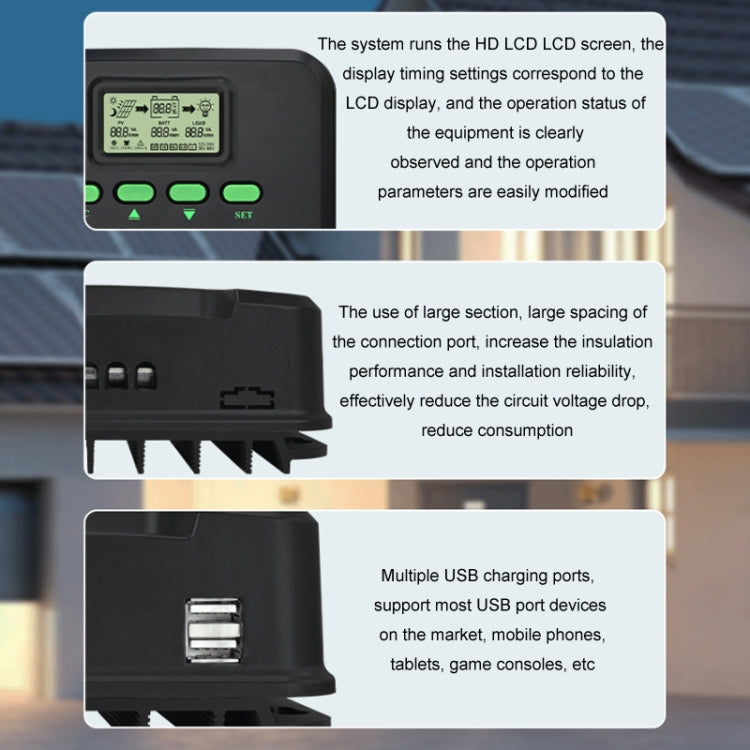

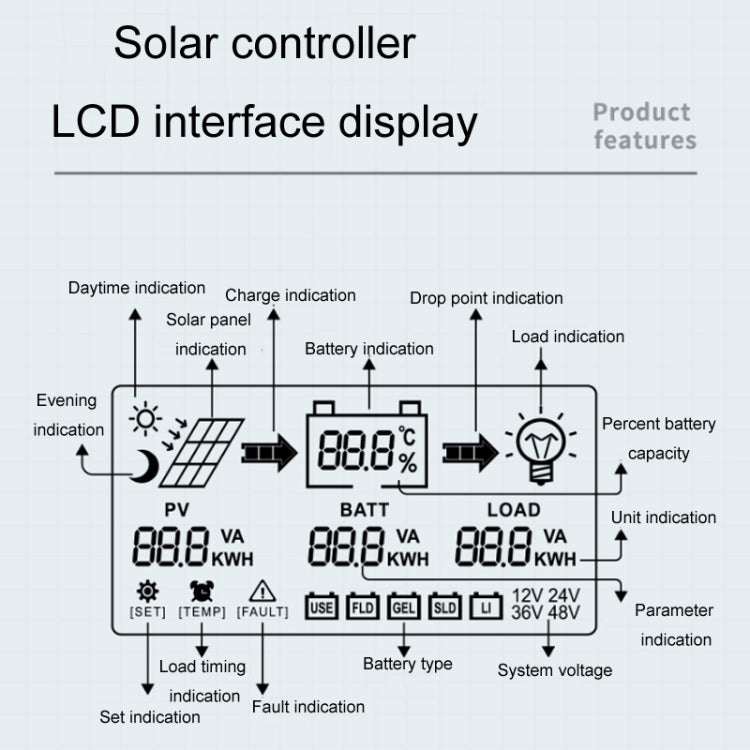

- Display: high-definition LCD screen for operation status and settings
- Wiring ports: large-section, large-pitch for improved insulation and reliability
- USB ports: multiple ports supporting various USB devices
