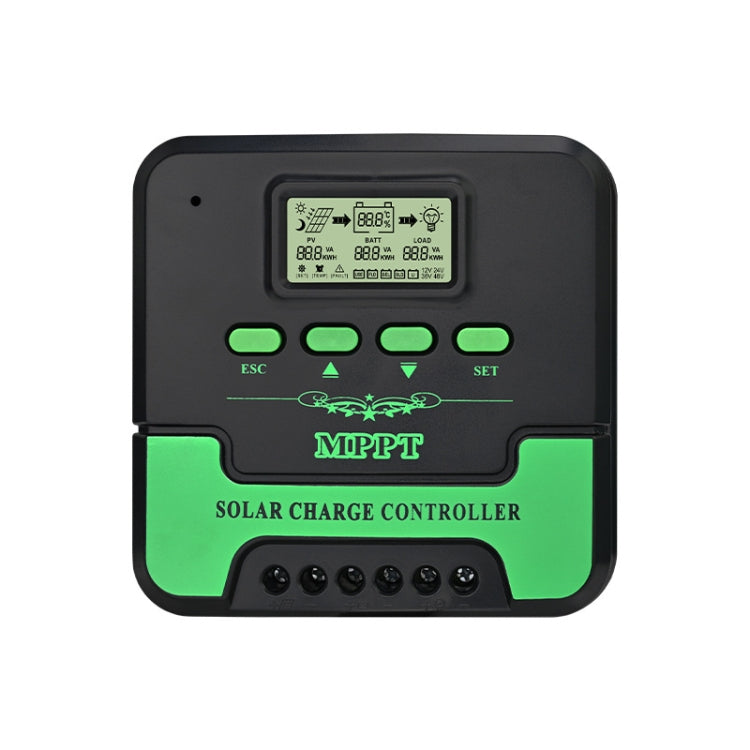

12V/24V 20A MPPT Smart Solar Charge Controller, Model: CM-D20
12V/24V 20A MPPT Smart Solar Charge Controller, Model: CM-D20
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R318.64/mo 3 months
- R161.12/mo 6 months
- R85.04/mo 12 months
- From R318.64/month over 3 months, or as low as R85.04/month over 12. Total repayable over 12 months: R1020.48. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
The 12V/24V 20A MPPT Smart Solar Charge Controller regulates solar energy for battery charging. It is suitable for various solar applications, including solar street lights and solar power generation systems.
- Material: ABS and metal
- System voltage: 12V/24V self-identification
- No-load loss: less than 0.4W
- Solar input voltage: 50V VOC (maximum)
- Battery voltage: 9-32V
- Voltage range: battery voltage +2V to 50V (maximum)
- Rated charging current: 20A
- Rated load current: 20A
- USB output: 5V/3A
- Panel input power (maximum): 240W at 12V; 480W at 24V
- Temperature compensation coefficient: -2mV/°C/2V (default value)
- Working temperature: -10 to +65°C
- Protection level: IP21
- Electromagnetic compatibility: in accordance with EN61000, EN55022, EN55024
- Applicable scope: solar street lights, solar roofs, solar awnings, solar power generation systems, solar RVs, solar billboards

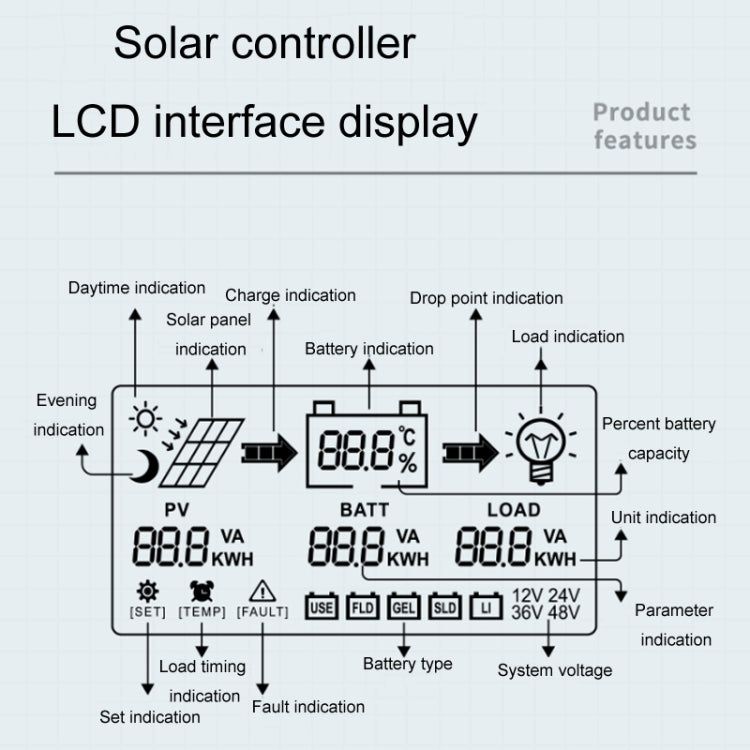

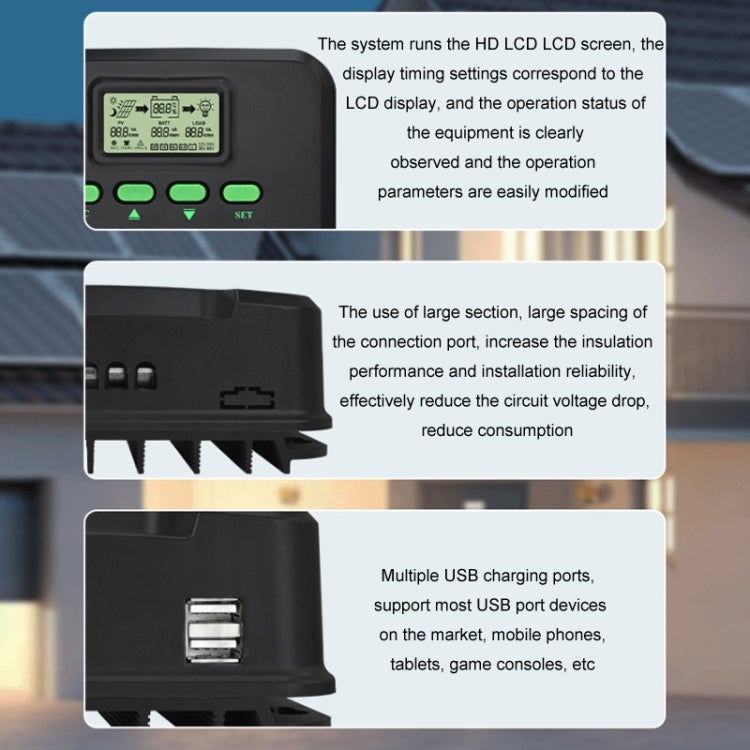

- Display: high-definition LCD screen with timing settings
- Wiring ports: large-section, large-pitch for improved insulation and reliability
- Multiple USB charging ports for various devices

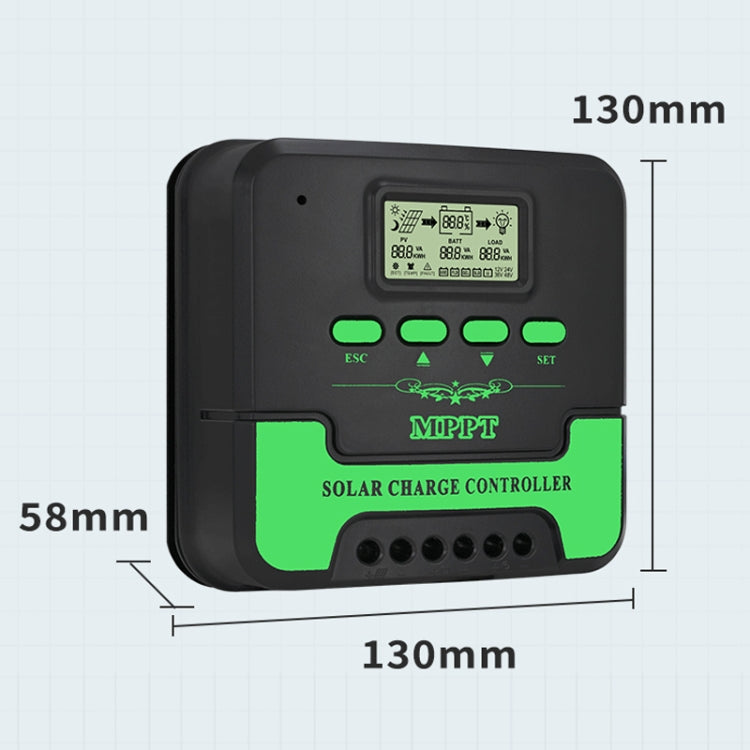

- Size: 13 x 13 x 5.8 cm
- Weight: 376 grams
