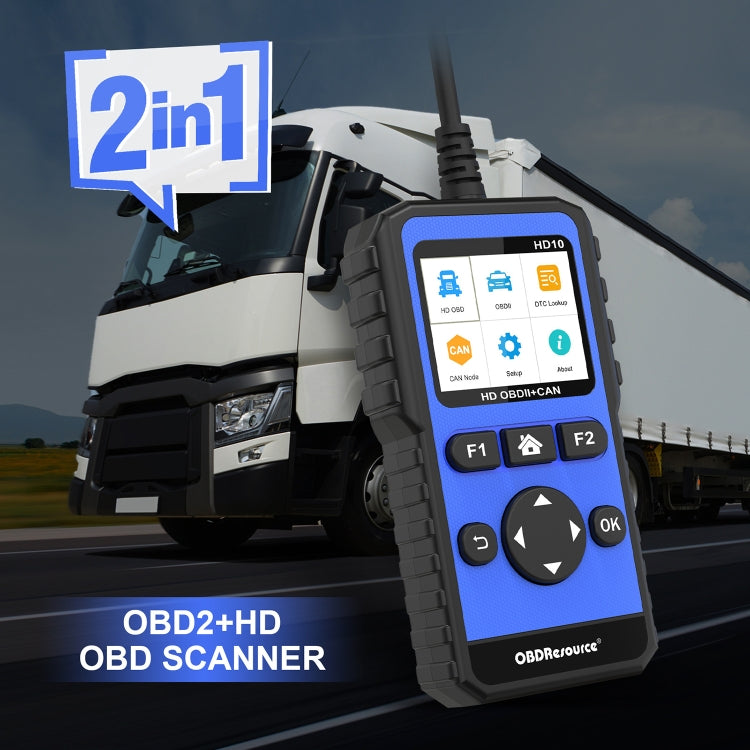

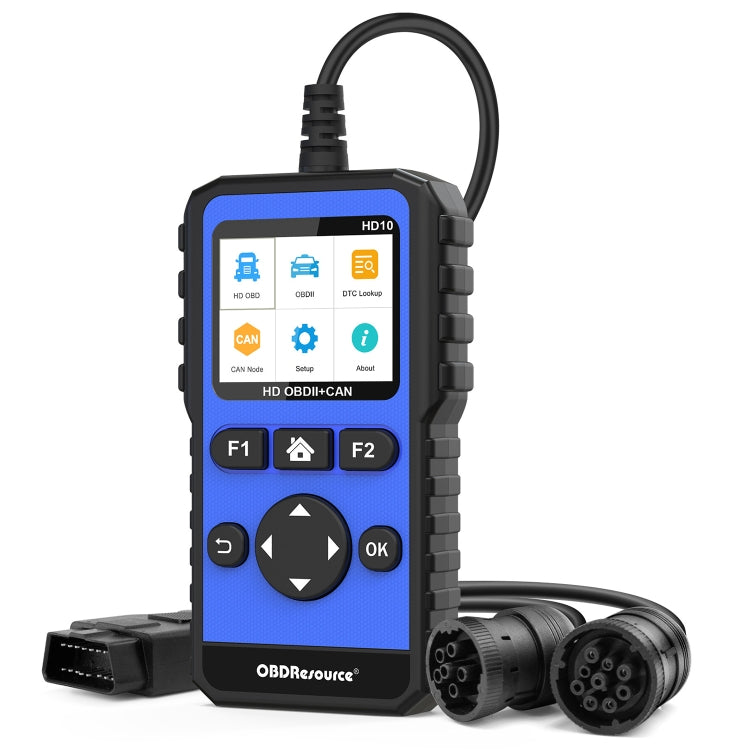

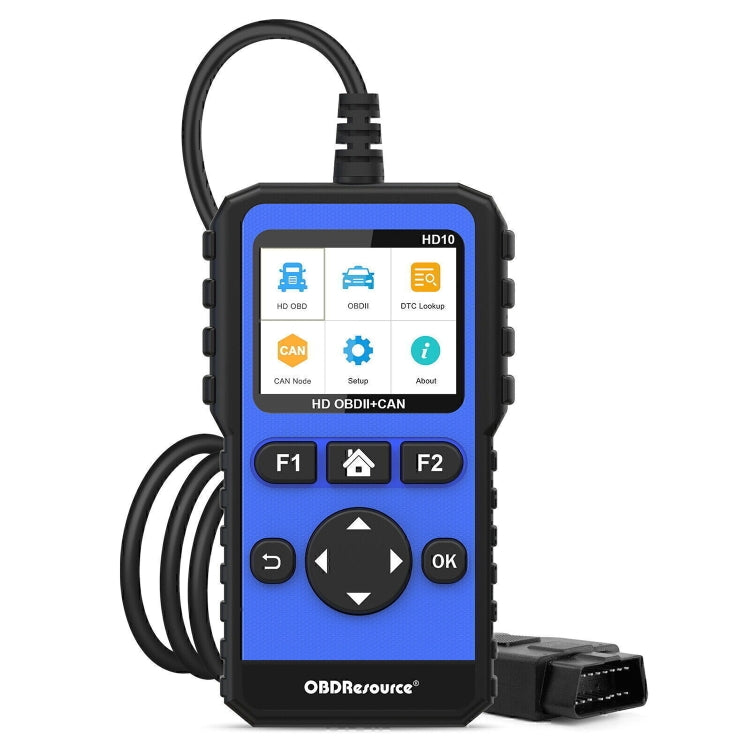

HD10 12V-24V 2 in 1 Full Systems Diagnostic Scan Tool OBD2/HDOBD/EOBD Scanner

HD10 12V-24V 2 in 1 Full Systems Diagnostic Scan Tool is a diagnostic tool for OBD2, HDOBD, and EOBD vehicles. It is suitable for everyday use in diagnosing issues across all systems of 12V and 24V vehicles, including heavy trucks and cars.

• Product Type: Code Readers & Scan Tools
• Compatibility: 12V and 24V vehicles
• Key Feature: Full systems support for heavy trucks and cars
• Intended Use: Everyday use
• Supported Protocols for Cars:
• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (fast init, 10.4 Kbaud)
• ISO 15765-4 CAN (11bit ID, 500 Kbaud)
• ISO 15765-4 CAN (29bit ID, 500 Kbaud)
• ISO 15765-4 CAN (11bit ID, 2500 Kbaud)
• ISO 15765-4 CAN (29bit ID, 250 Kbaud)

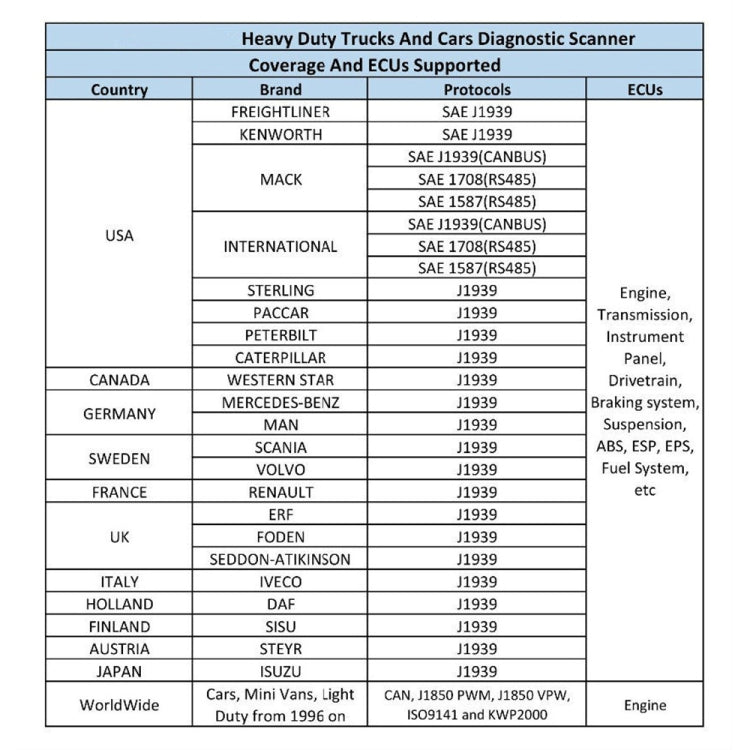

• Supported Protocols for Trucks:
• J1939
• J1587/1708 (6/9PIN)
• J1587/1708 (16PIN)
• Full 9 modes OBDII Diagnostics for cars
• Universal Truck Multi-systems diagnosis:
• Read and erase codes for truck engine, ABS, brake, airbag, transmission, EPS, fuel multi-systems

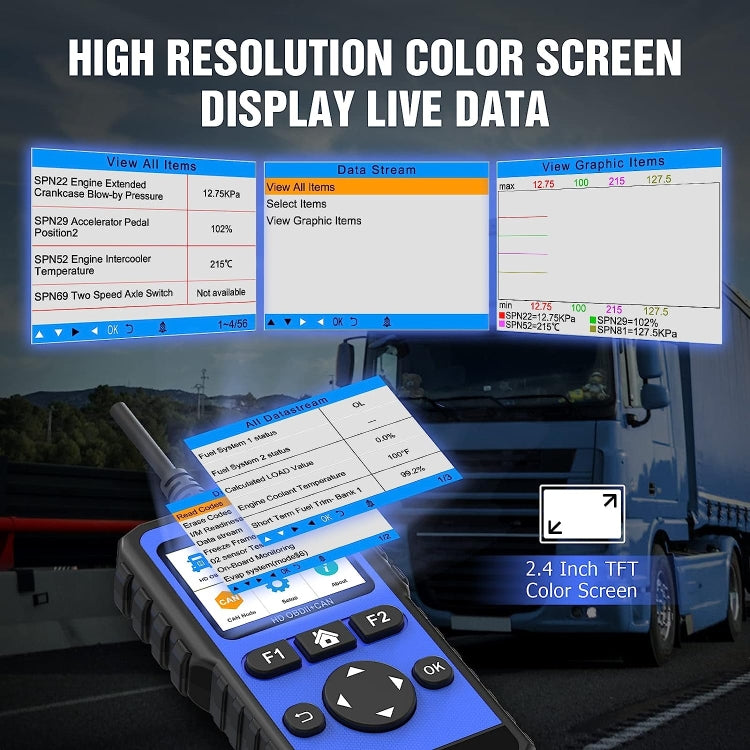

• Sensor live data stream for multiple systems
• Support DPF regeneration for Maxxforce, Detroit, Cummins, ISUZU, HINO HD Truck
• Support Oil Service Light Reset for Maxxforce, Detroit, Cummins
